Delta R10000-UNBX User Manual

107528 Rev. D
4
C.
2
1
Copper Tubing
2
1
Iron Pipe
2
1
Pex

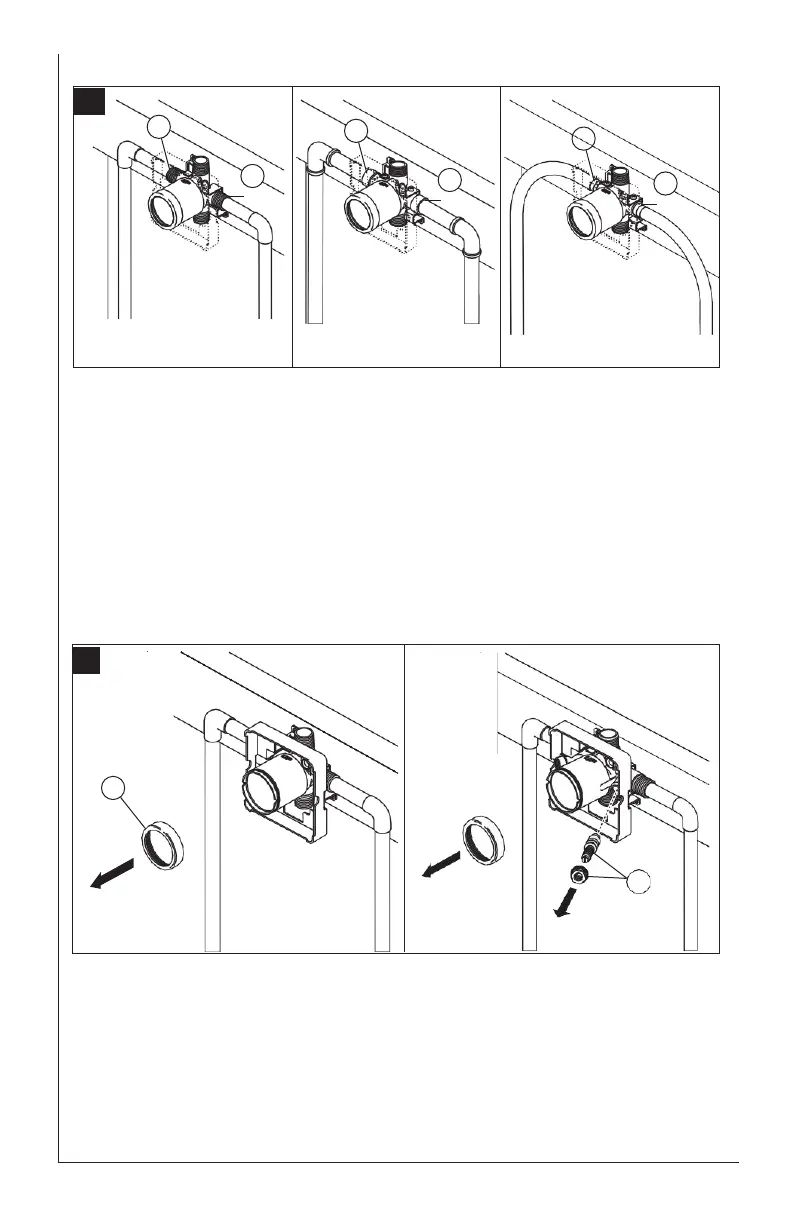

• Connect valve body to water supplies using
the proper fittings for your valve body type
(copper tubing, iron pipe or Pex). Note: (1)
is the cold inlet port and (2) is the hot
inlet port.
• If either of the two outlet ports is to be
unused, seal the port with a pipe plug.
• Remove bonnet (1).
NOTICE: Avoid soldering at high
temperatures. Components of the rough
could become damaged.
If you are making a BACK TO BACK
OR REVERSE INSTALLATION (hot on
right and cold on left) install the valve
body as described, but the water supply
lines will be reversed. Note: (1) is the
hot inlet port and (2) is the cold inlet
port.
• Be sure stops (2) are removed from the
w/stops version before soldering. Do not
install stops before soldering.
D.
1
2

Delta R10000-UNBX Specifications

General

Material	Brass
Installation Type	Wall Mounted
Inlet Connection Size	1/2 inch
Outlet Connection Size	1/2 inch
Brand	Delta
Model	R10000-UNBX
WaterSense Certified	No
ADA Compliant	No
Warranty	Limited Lifetime Warranty
Inlet Connection Type	Threaded
Outlet Connection Type	Threaded
Stops	No Stops
