Chapter 2 Installation and Wiring_VFD-B Series
Revision 10/2005, BE13, SW V4.08 2-33

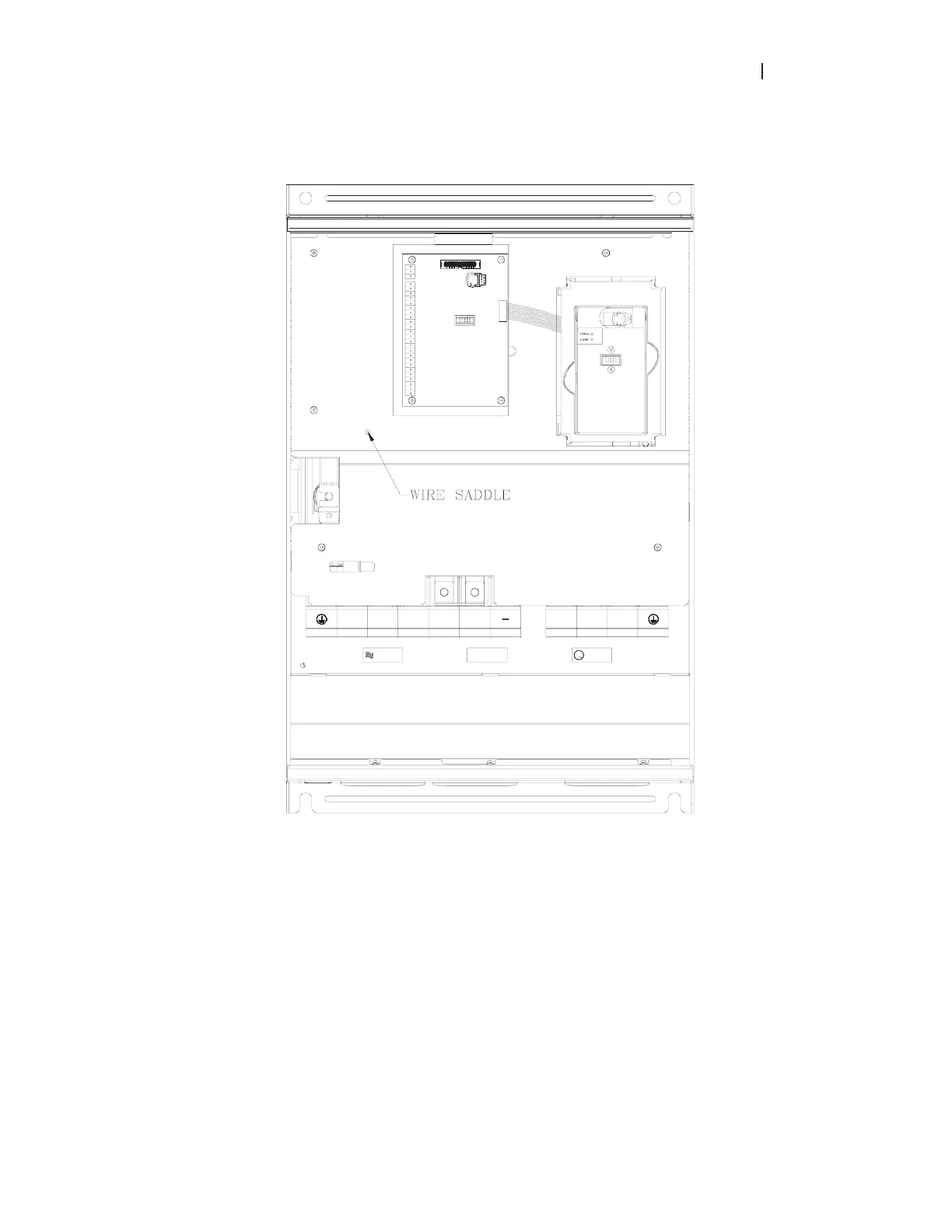

75-100 HP (55-75kW) 460V
VFD550B43A, VFD750B43A
T/L3S/L2R/L1
POWER
+1
V/T2U/T1
+2
200kgf-cm
(17 3in-lbf)
Screw Torque:
IM
3
W/T3
MOTOR
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG (3.3-0.2 mm
2
)
Power Terminal
Torque: 200 kgf-cm (173 in-lbf)
Wire: VFD550B43A : 2/0 AWG (67.4 mm
2
)
VFD750B43A: 3/0 AWG (85 mm
2
)
Wire Type: Stranded copper only, 75qC
To Next Page
