3-11

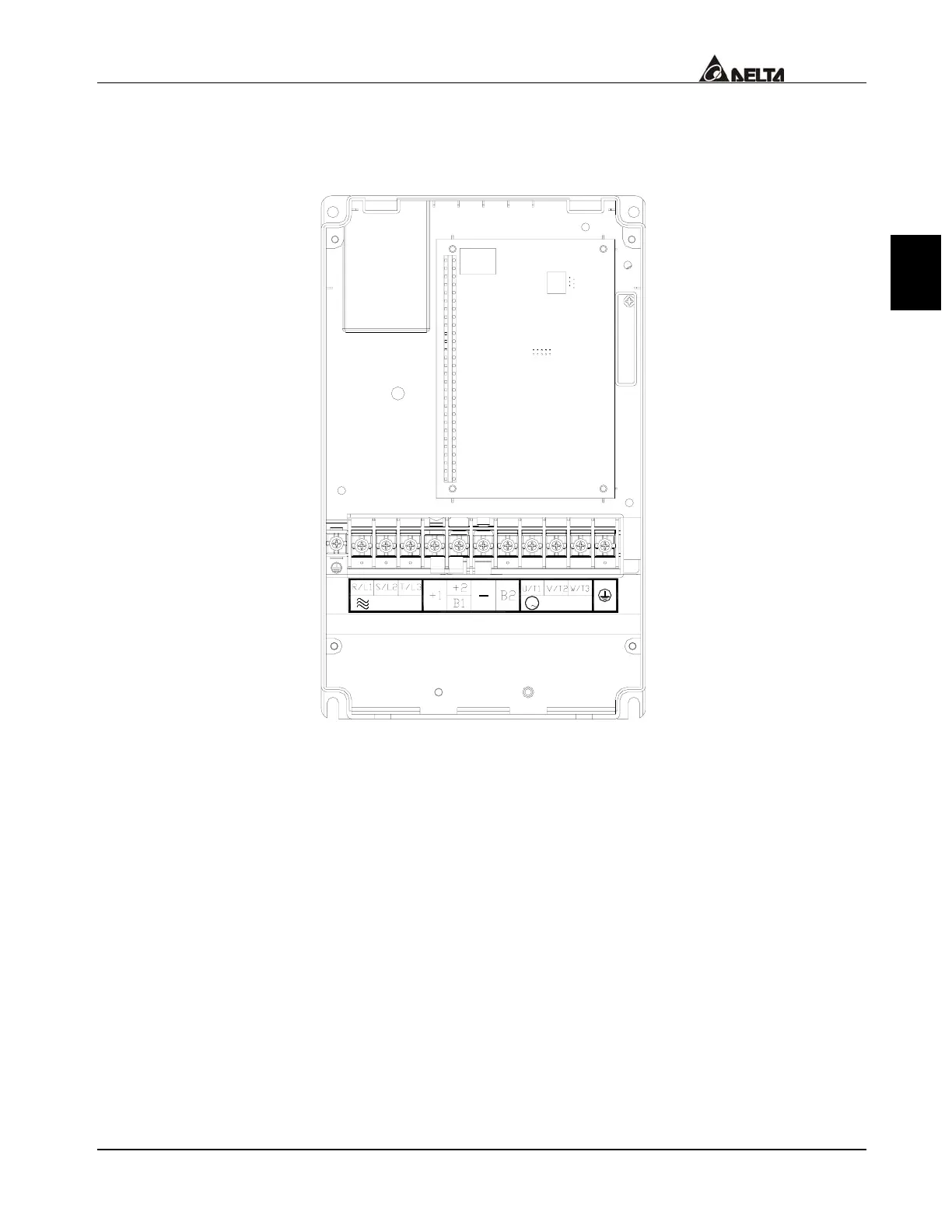

7.5 HP to 15 HP (VFD055B23A, VFD055B43A, VFD075B23A, VFD075B43A,
VFD110B23A, VFD110B43A)
POWER
IM
MOTOR3
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG
Power Terminal
Torque: 30Kgf-cm (26 in-lbf)
Wire: 8-12 AWG
Wire Type: Stranded Copper only, 75°
C
NOTE: If wiring of the terminal utilizes the wire with a 6AWG-diameter, it is thus necessary
to use the Recognized Ring Terminal to conduct a proper wiring.
