Value Functions
Descriptions
35 Output Shutoff Stop (NO)**
36 Output Shutoff Stop (NC)***
AC drive will stop output and the motor free run if one
of these settings is enabled. If the state of terminal is
changed, AC drive will restart from 0Hz.
∗ Setting 21, 22: you just can set one of them at one time.
** NO: Normal Open input.
*** NC: Normal Close input.
Frequency
Time
Acceleration
Delceleration
Accel time 1
Accel time 2
Accel time 3
Accel time 4
Decel time 1
Decel time 2
Decel time 3
Decel time 4
01-09
01-11
01-18
01-20
01-10
01-12
01-19
01-21
Master
Freq.
1
1
2
2
3
3
4
4
OFF
OFF
OFF
1
ON
ON
ON
ON
RUN/STOP
PU External terminal
communication
Accel/Decel time 1 & 2
Multi-function Input
Terminals Pr.04-04 to
Pr.04-09(MI1 to MI6 7)
Accel/Decel time 3 & 4
Multi-function Input
Terminals Pr.04-04 to
Pr.04-09(MI1 to MI6 8)

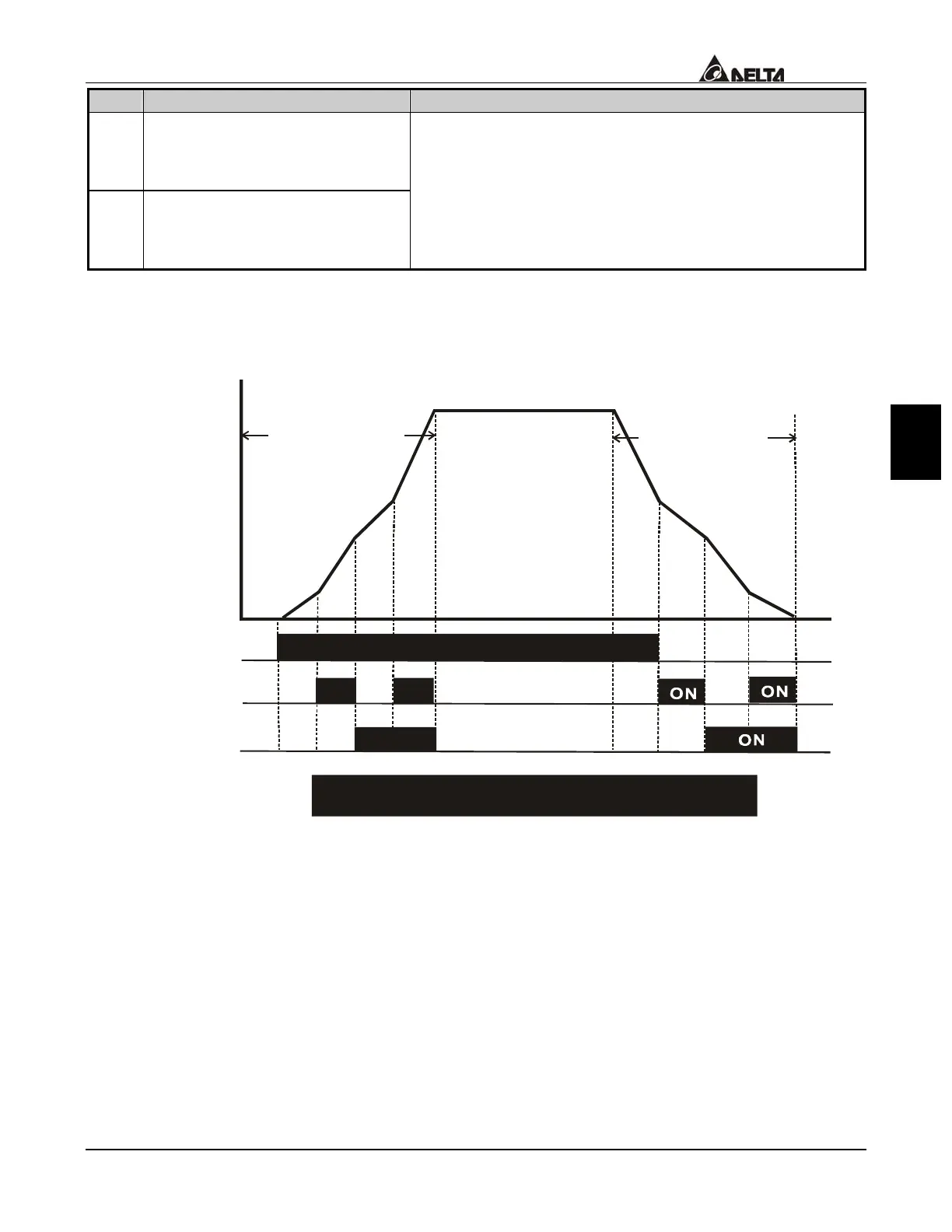

Accel/Decel Time and Multi-function Input Terminals
