Chapter 7 Optional AccessoriesCP2000
7-5

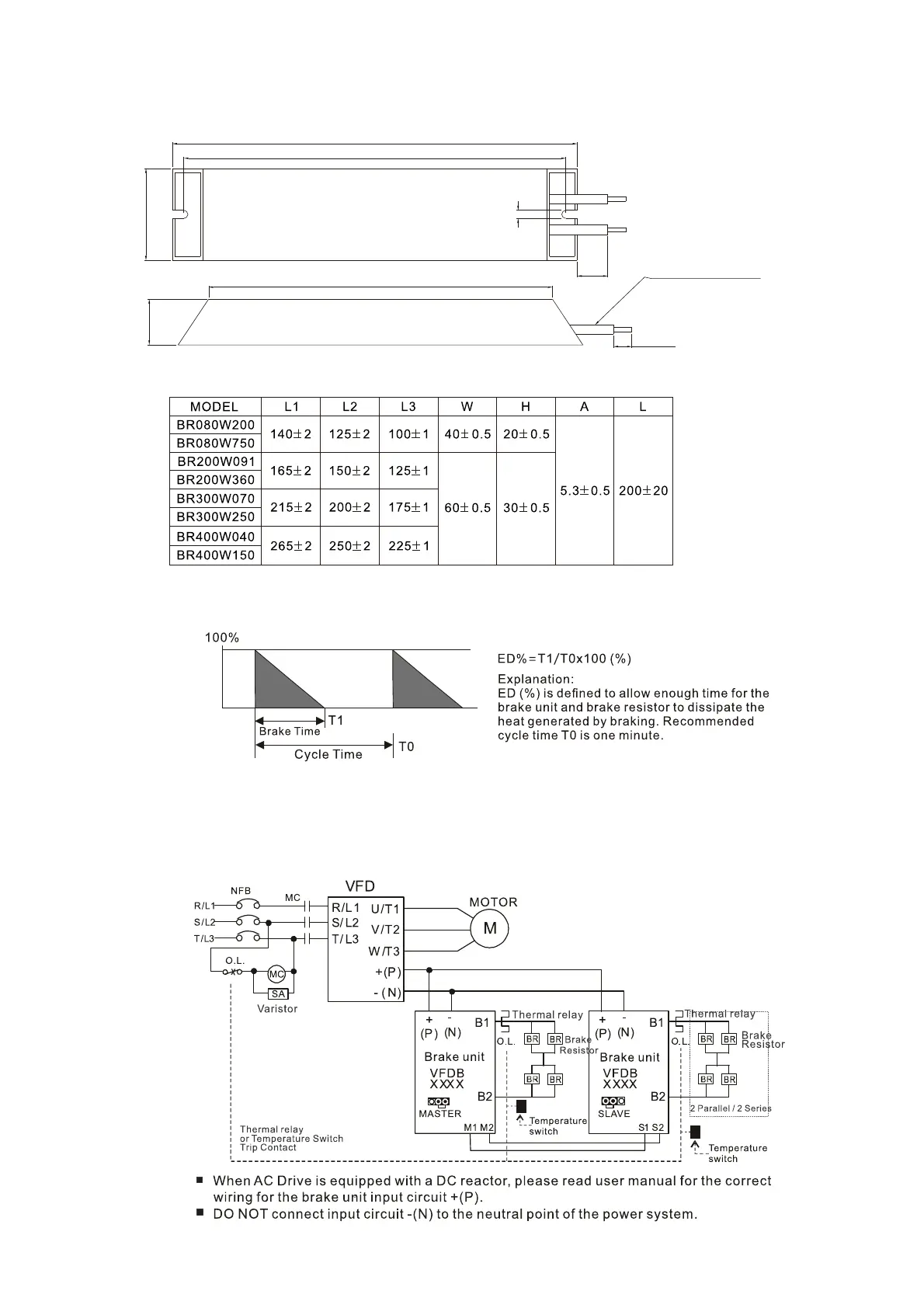

1-2 Aluminum housed resistors: for below 1000 W. Refer to the following appearance of aluminum-housed
resistor (Figure 7-2) and its model and specification comparison table (Table 7-6) for details.
A
W
L1
L 2
L
2. Select the resistance value, power and brake usage (ED %) according to Delta rules.
For safety concern, install a thermal overload relay (O.L) between the brake unit and the brake resistor in
conjunction with the magnetic contactor (MC) before the drive for additional protection. The thermal overload
relay protects the brake resistor from damage due to frequent or continuous braking. Under such
circumstances, turn off the power to prevent damage to the brake resistor, brake unit and drive.
H
L3
12.0
16AWG, 1.318MM2
Table 7-6
Unit: mm
Fi
ure 7-2
Figure 7-3
Figure 7-4
