Chapter 18 Safe Torque Off Function │CP2000
18-3
18-3 Wiring diagram

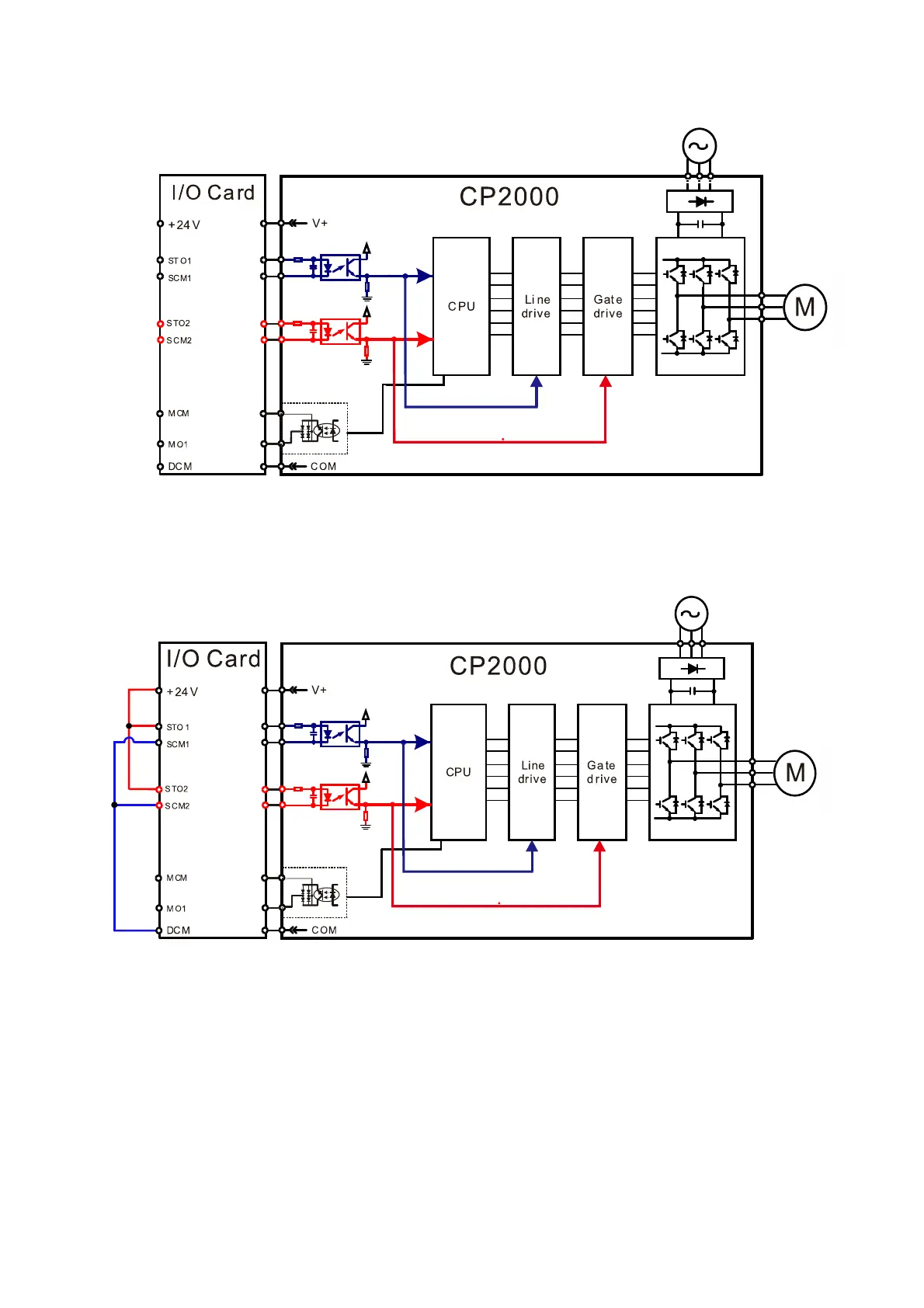

18-3-1Internal STO circuit as below:
18-3-2 In the figure below, the default setting for +24V-STO1-STO2 and SCM1-SCM2-DCM is short
circuit
:
