Delta VFD037CP43B-21

Chapter 7 Optional AccessoriesCP2000
7-20
Unit: mm
Input AC reactor
Delta part #
Dimensions

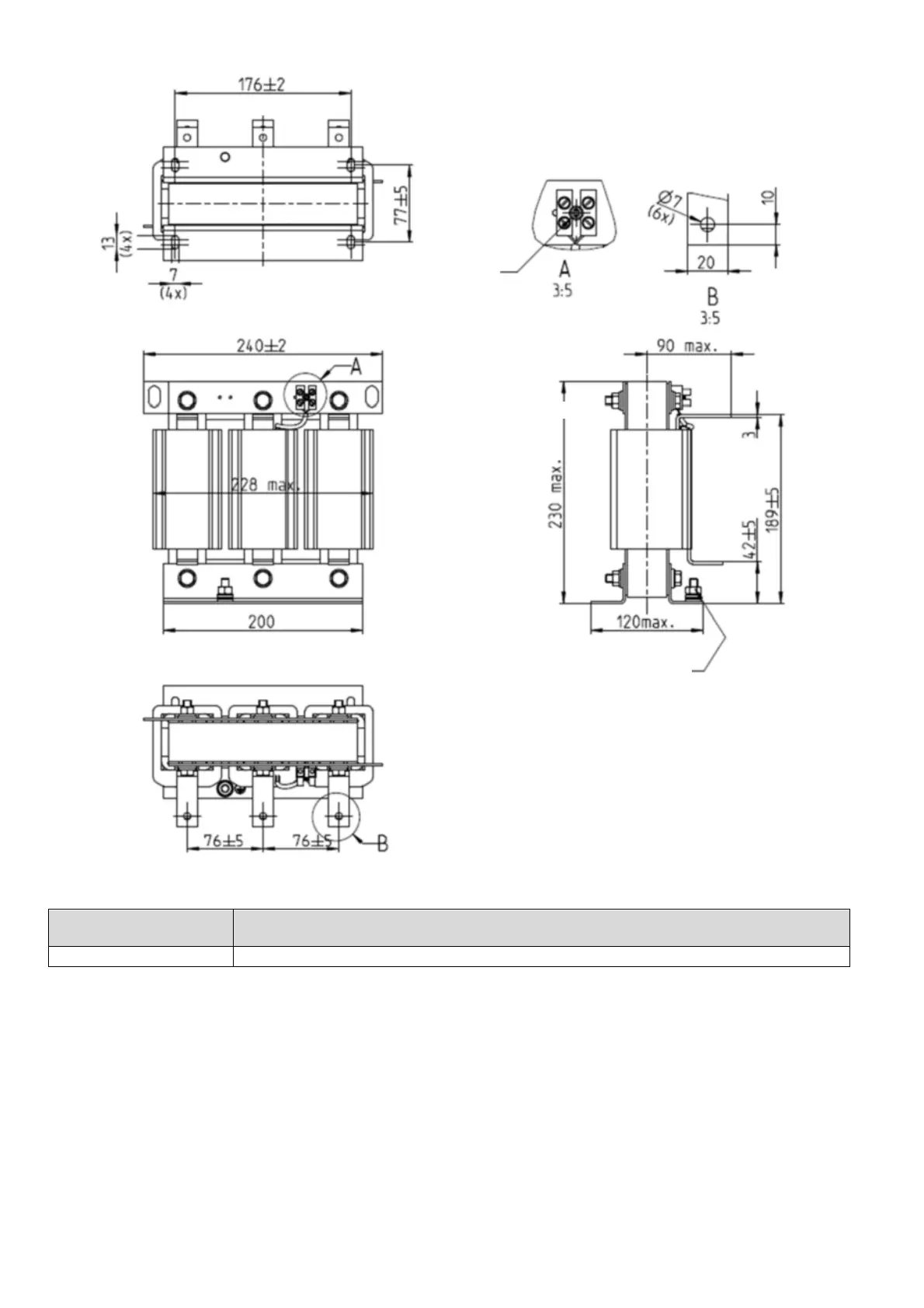

DR090AP141 Refer to the diagram above
PE bolt
PE M8x23
Tightening torque: 6±0.3Nm
Terminals 4mm
2
Tightening torque: 0.8–1.0Nm
Figure 7-11
Table 7-27
