Delta VFD037CP43B-21

Chapter 7 Optional AccessoriesCP2000
7-23
Unit: mm
Input AC reactor
Delta part #

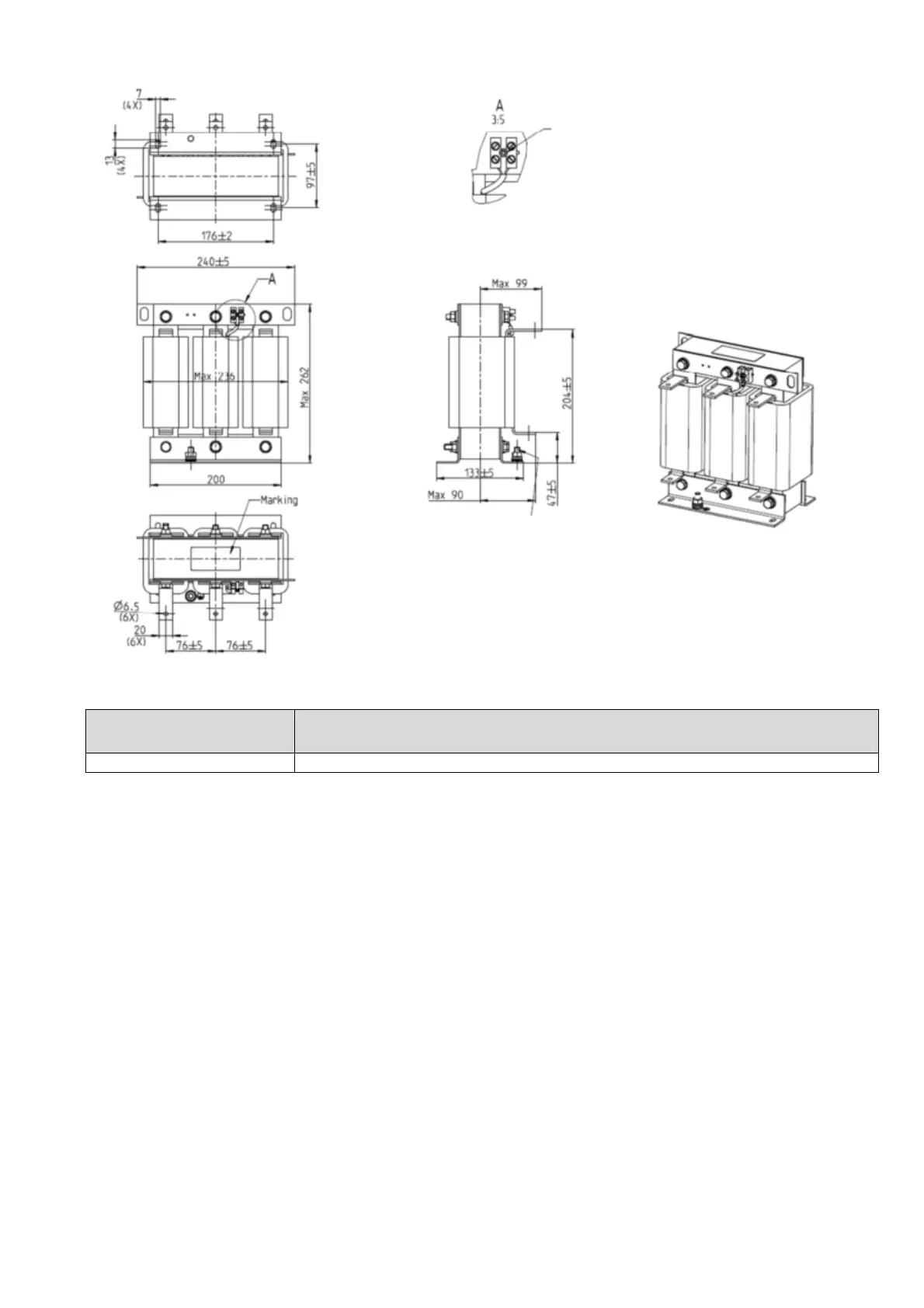

Dimensions
DR180AP070 Refer to the diagram above
Terminals: 4 mm
2
Tightening torque:
6.1–8.2 kg-cm / [5.3–7.1 lb-in] / [0.6–0.8Nm]
PE M8 x 23
Tightening torque: 6±0.3N
Figure 7-14
Table 7-30
