Delta VFD037CP43B-21

Chapter 7 Optional AccessoriesCP2000
7-42

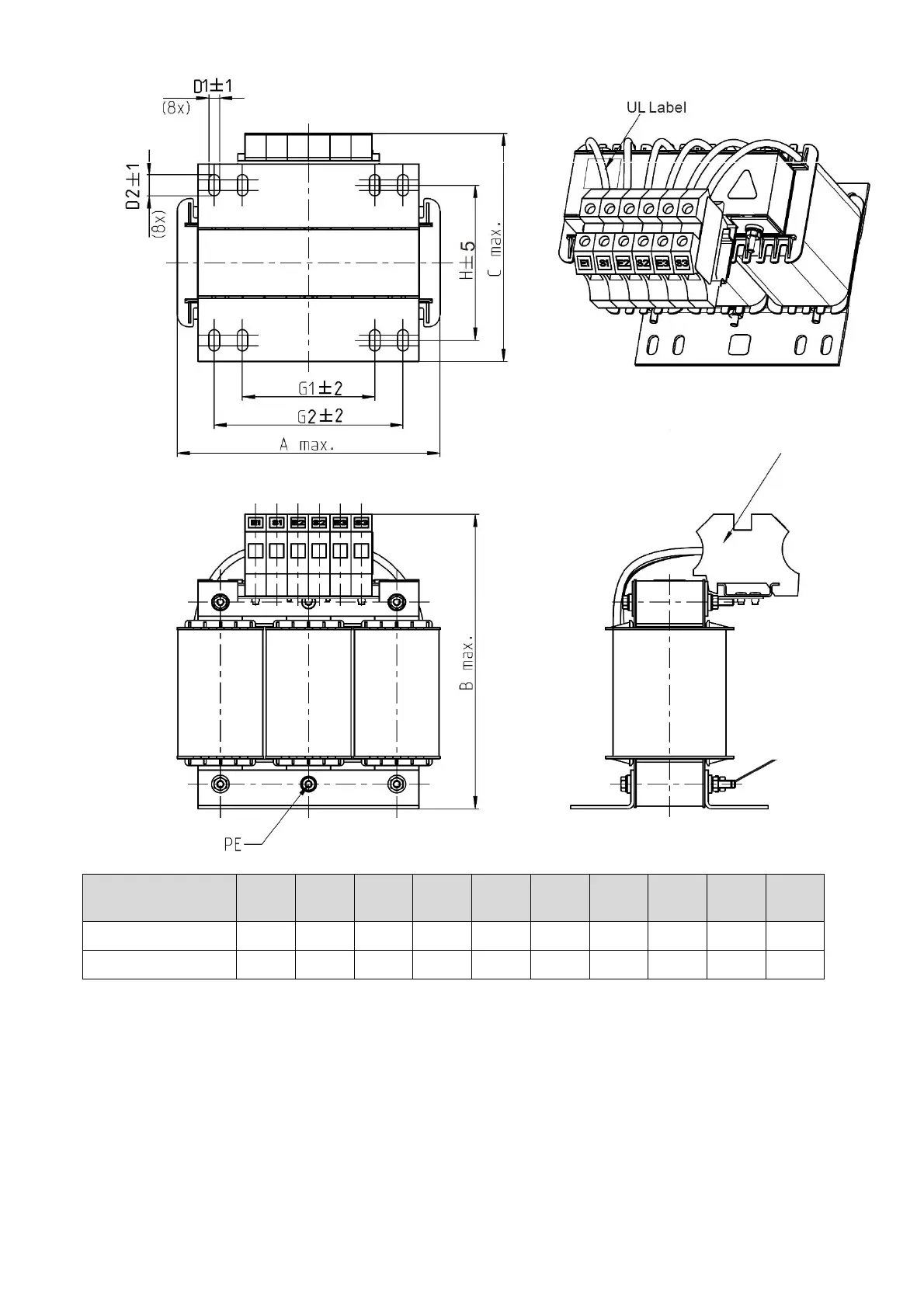

Output AC reactor
Delta part #
A B C D1*D2 H G G1 Q M PE D
DR049LP215 180 205 175 6*12 115 85 122 16 1.2–1.4 M4
DR065LP162 180 215 185 6*12 115 85 122 35 2.5–3.0 M4
Screw length must
not interfere with the
mounting holes
Unit: mm
Figure 7-28
Table 7-51
Terminals: 16mm
2
Tightening torque: 1.2–1.4Nm
