Delta VFD037CP43B-21

Chapter 7 Optional AccessoriesCP2000
7-44
Output AC reactor Delta
part #
A A1 B B1 B2 C C1 D1*D2 E H M*T
DR276LP049 270 260 320 50 265 200 140 10*18 176 106 30*5
DR3466LP037 270 265 340 50 285 200 140 10*18 176 106 30*5
Unit: mm

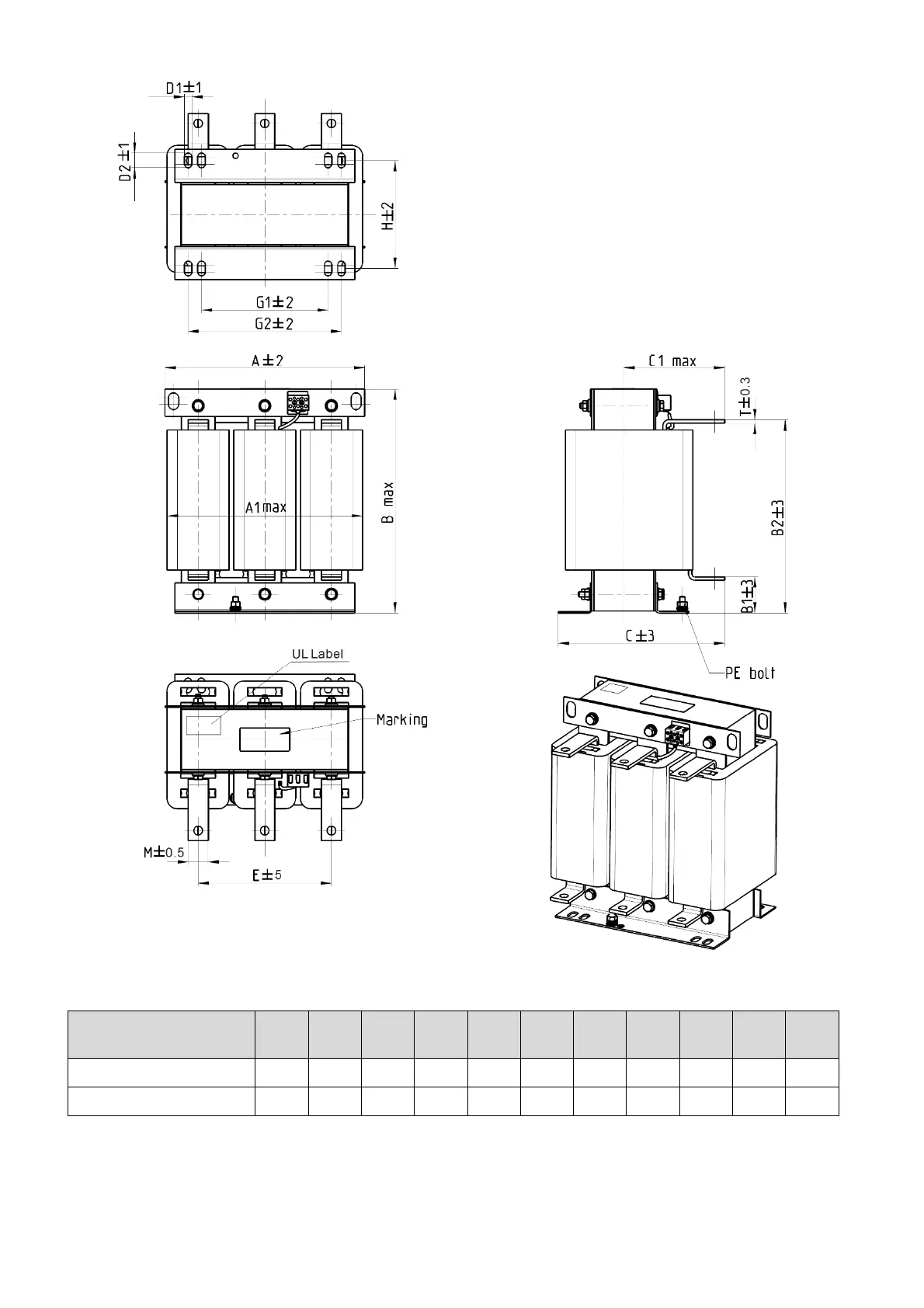

Figure 7-30
Table 7-53
