Delta VFD037CP43B-21

Chapter 3 UnpackingCP2000
3-22

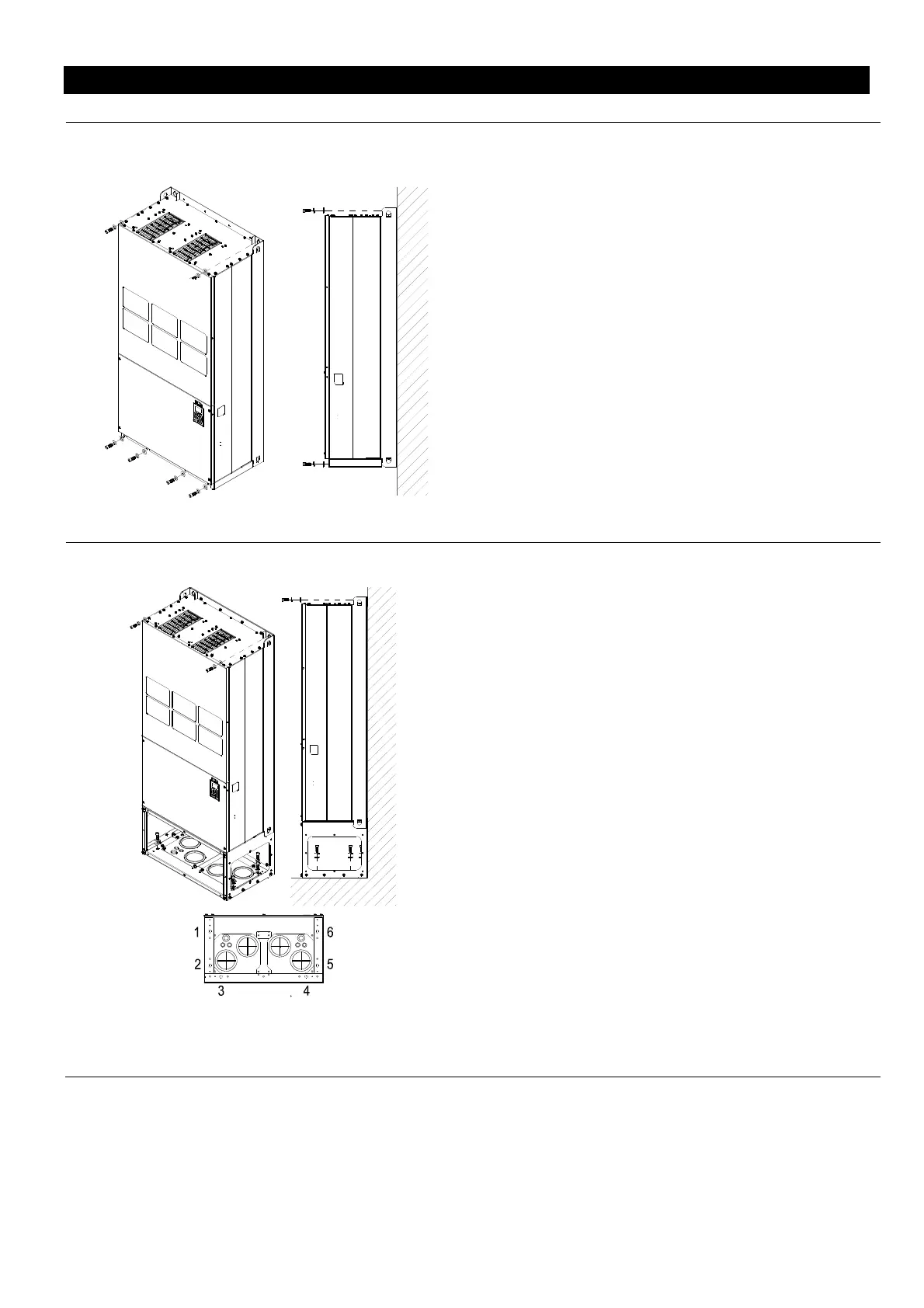

Frame H: Fix the drive
H1: VFDXXXXCPXXA-00
Screw M12*6
Torque: 340–420 kg-cm / [295.1–364.6 lb-in.] /
[33.3–41.2 Nm]
Figure 3-73
H2: VFDXXXXCPXXC-00
Fix the drive from the inside
Screw M12*8
Torque: 340–420 kg-cm / [295.1–364.6 lb-in.] /
[33.3–41.2 Nm]
Figure 3-74
Fix the drive from the inside
