Chapter 16 PLC Function Applications│CP2000
16-147
Special D
Description of Function
ttributes
bit Speed mode
D1126 + 10*N
0 Frequency command arrival
RO
1
Clockwise
Counterclockwise:
2 Warning
3 Error
5 JOG
6 Quick Stop
7 Servo ON
D1127 + 10*N
Actual frequency
RO
D1128 + 10*N -
※ N = 0–7

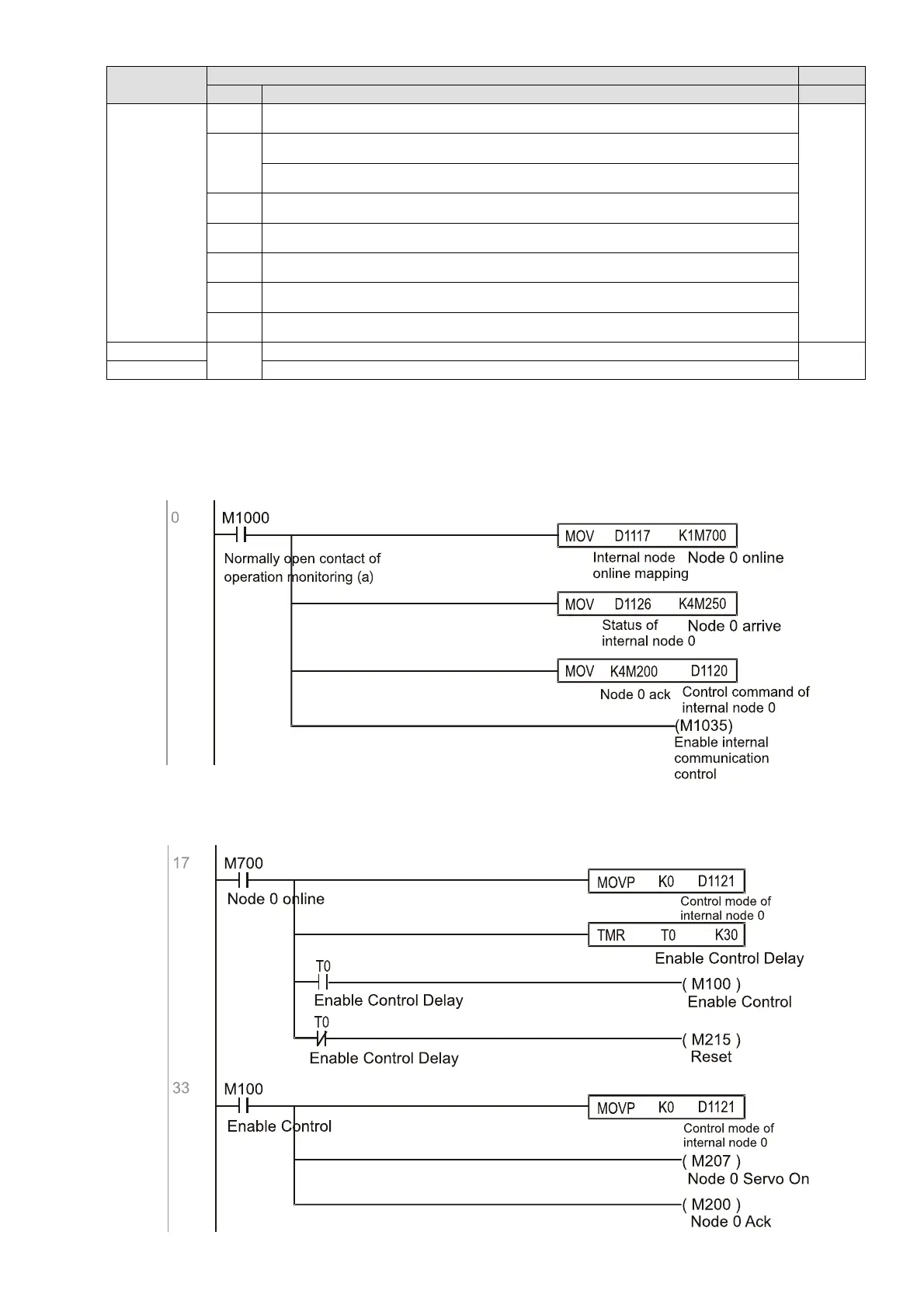

Example: Assume it is desired to control slave station 1 operation at frequencies of 30.00 Hz and
60.00 Hz, status, and online node correspondences:
When it is judged that slave station 1 is online, delay 3 sec. and begin control
