Delta VFD040EL43W-1 - Character Frame for RTU

Chapter 4 Parameters  VFD-EL-W
4-78
（7 , E , 2）
Even
parity
Start
bit
0
1
2
3
4
5
6
Stop
bit
7-data bits
11-bits character frame
Stop
bit
（7 , O , 2）
Odd
parity
Start
bit
0
1
2
3
4
5
6
Stop
bit
7-data bits
11-bits character frame
Stop
bit

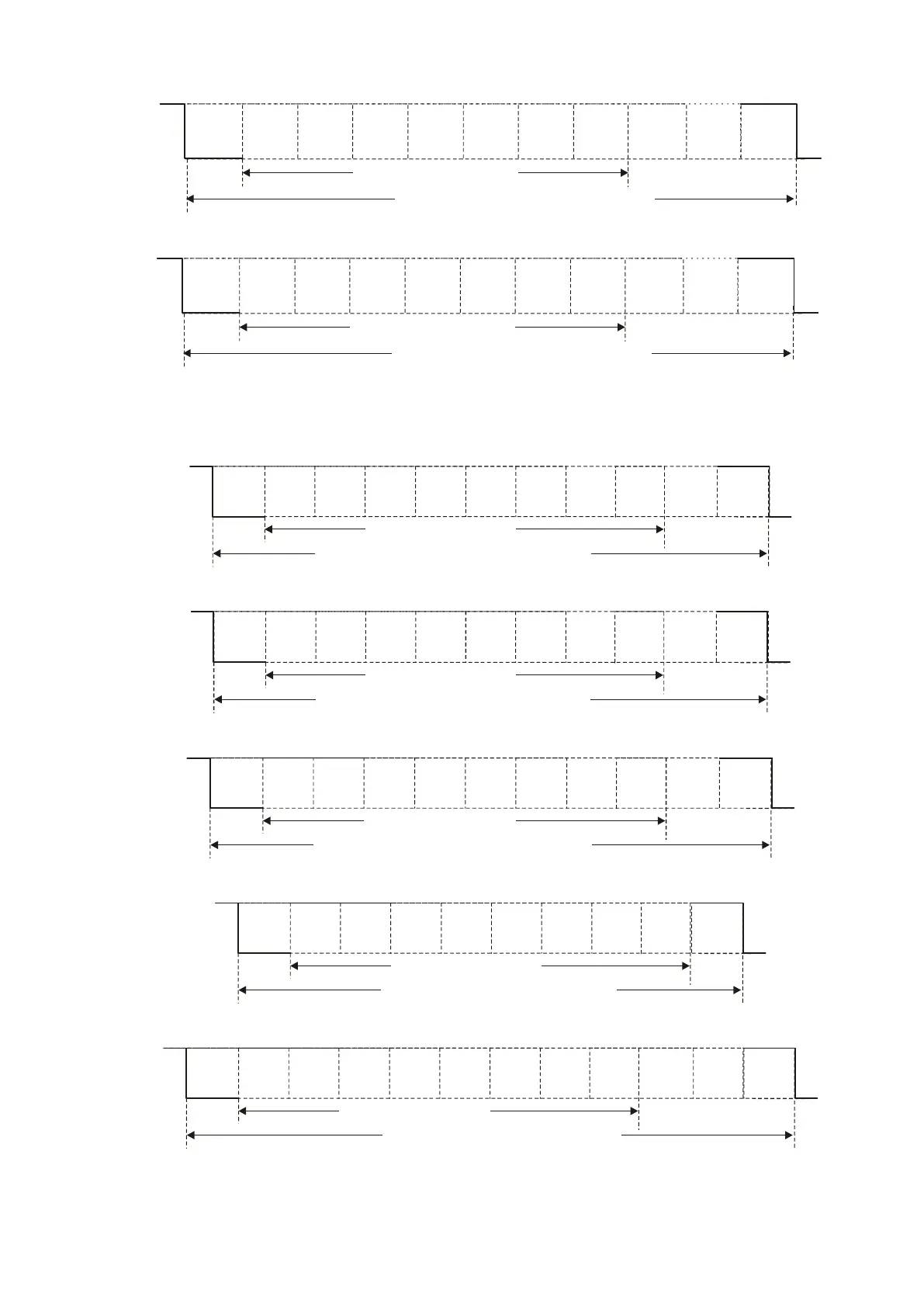

Character Frame for RTU:
（ 8 , N , 2）
Start
bit
0
1
2
3
4
5
6
Stop
bit
8-data bits
11-bits character frame
Stop
bit
7
（8 , E , 1）
Start
bit
0
1
2
3
4
5
6
Stop
bit
8-data bits
11-bits character frame
7
Even
parity
（8 , O , 1）
Start
bit
0
1
2
3
4
5
6
Stop
bit
8-data bits
11-bits character frame
7
Odd
parity
（8 , N , 1）
Start
bit
0
1
2
3
4
5
6
Stop
bit
8-data bits
10-bits character frame
7
（8 , E , 2）
Start
bit
0
1
2
3
4
5
6
Stop
bit
8-data bits
12-bits character frame
Stop
bit
7
Even
parity
