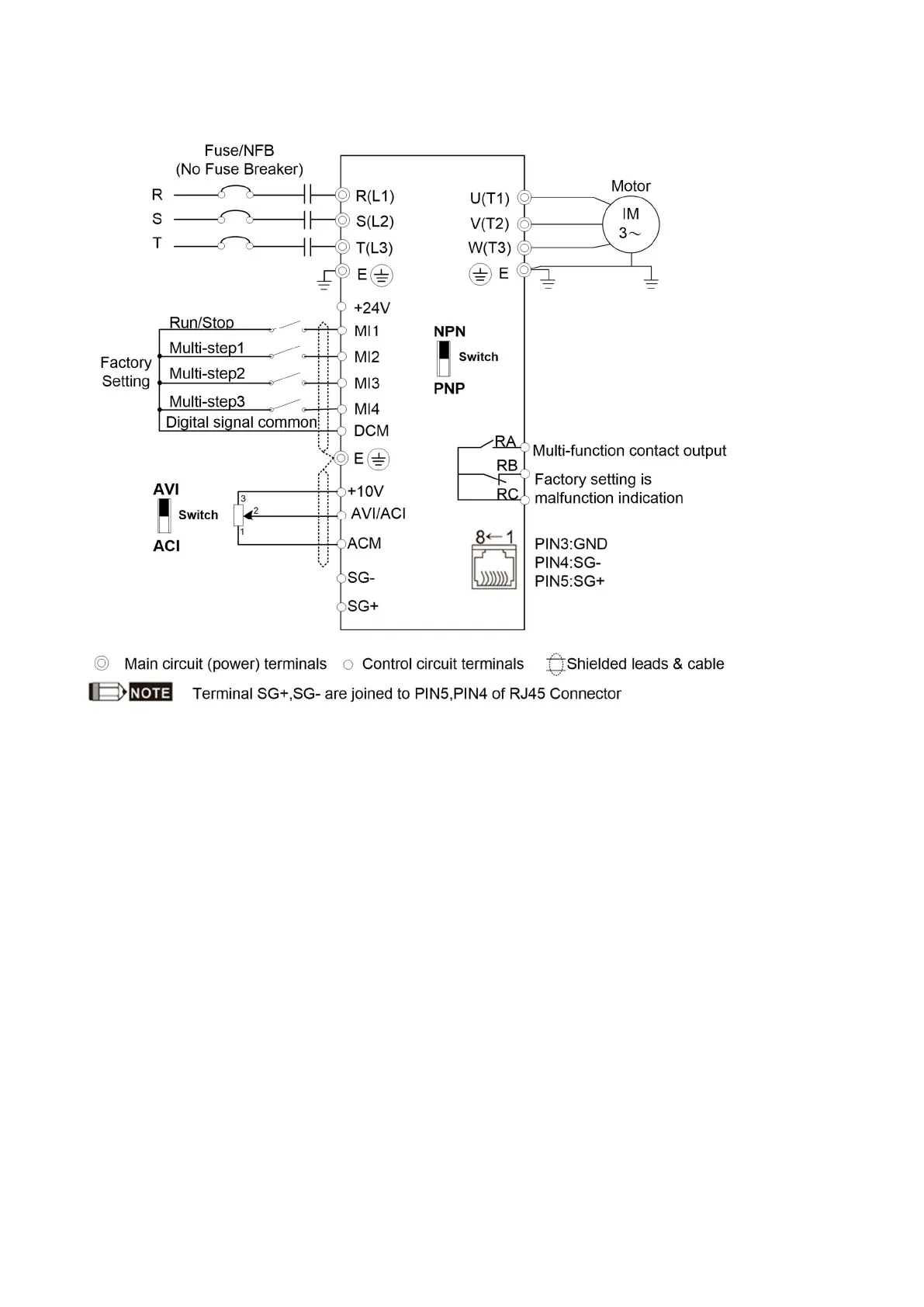

Delta VFD040EL43W-1 - 460 V Three-Phase

To Next Page

To Previous Page

Chapter 2 Installation and Wiring



VFD-EL-W

2-3

 460V Three-phase

VFD004EL43W(-1), VFD007EL43W(-1), VFD015EL43W(-1), VFD022EL43W(-1), VFD040EL43W(-1)
