Chapter 2 Installation and Wiring_VFD-B Series
2-28
Revision 10/2005, BE13, SW V4.08

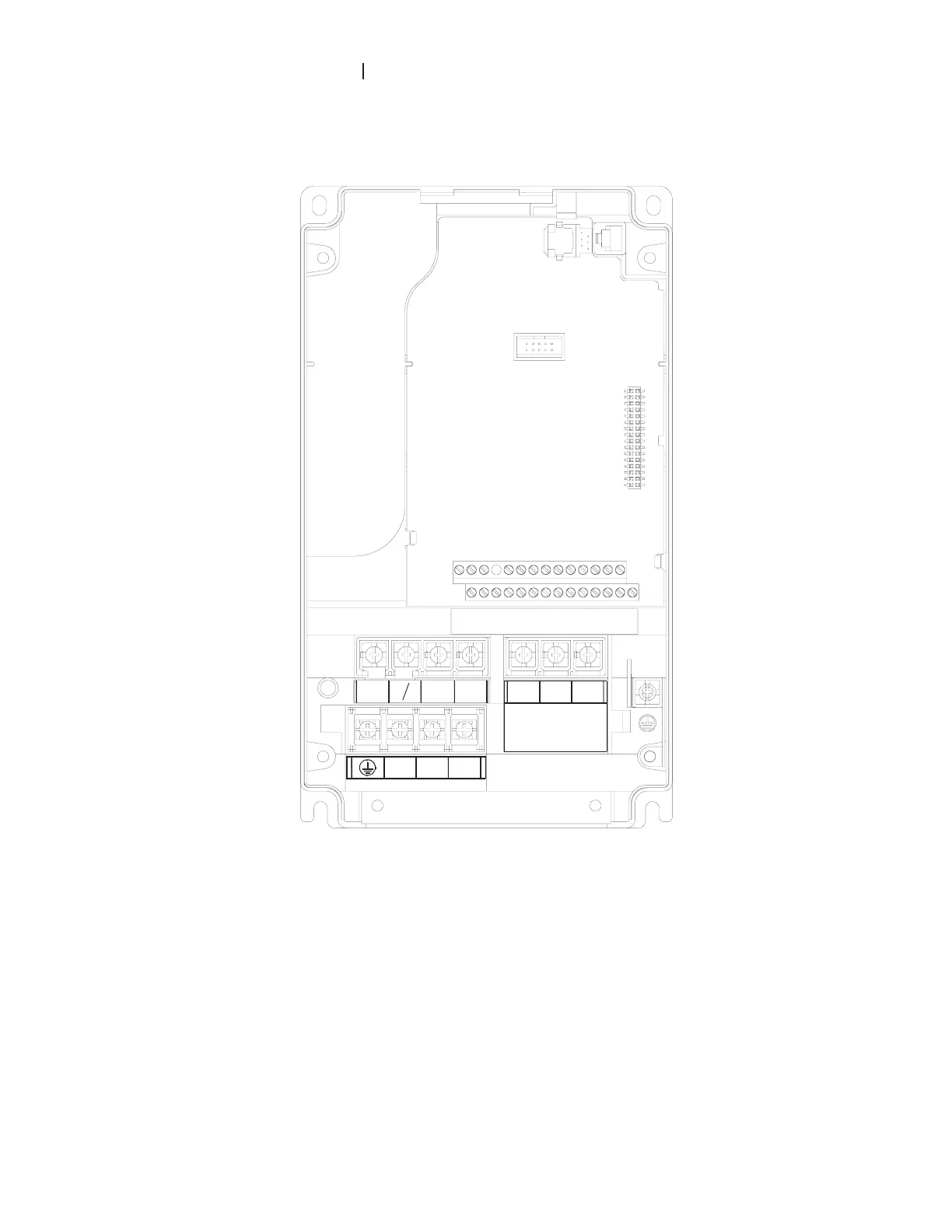

3HP to 5HP (2.2 to 3.7kW)
VFD022B21A, VFD037B23A/43A/53A
+1
+2
B
1
-
B
2
R/L1 S/L2 T/L3
Screw Torque :
Wire Gauge :
18Kgf-cm
18~10AWG
U/T1 V/T2 W/T3
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG (3.3-0.2mm
2
)
Power Terminal
Torque: 18 kgf-cm (15.6 in-lbf)
Wire Gauge: 10-18 AWG (5.3-0.8mm
2
)
Wire Type: Stranded copper only, 75qC
