Chapter 7 Optional AccessoriesCP2000
7-31

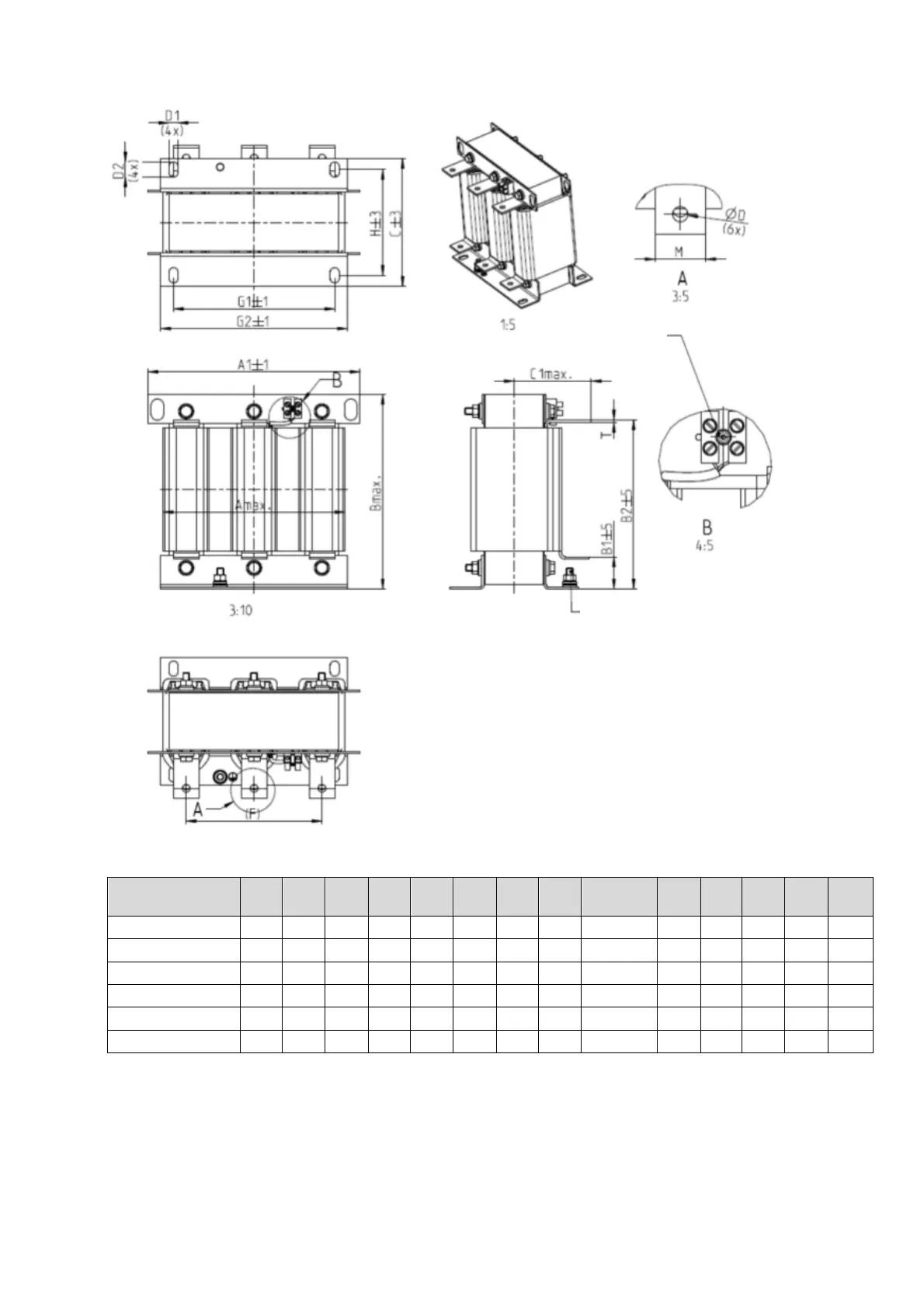

Input AC reactor
Delta part #
A A1 B B1 B2 C C1 D D1*D2 F G1 G2 H M*T
DR150AP162 240 250 245 40 200 151 105 9 11*18 160 190 220 125 20*3
DR180AP135 240 250 245 40 200 151 105 9 11*18 160 190 220 125 20*3
DR220AP110 264 270 275 50 230 151 105 9 10*18 176 200 230 106 30*3
DR260AP098 264 270 285 50 240 151 105 9 10*18 176 200 230 106 30*3
DR310AP078 300 300 345 55 295 153 105 9 10*18 200 224 260 113 30*3
DR370AP066 300 300 345 55 295 158 120 9 10*18 200 224 260 118 50*4
Terminals: 4 mm
2
Tightening torque: 8.2–10.2 kg-cm /
[7.1–8.9 lb-in] / [0.8–1.0Nm]
PE M8 x 23
Tightening torque: 6±0.3 Nm
Unit: mm
Figure 7-22
Table 7-38
To Next Page
