Chapter 7 Optional AccessoriesCP2000
7-32

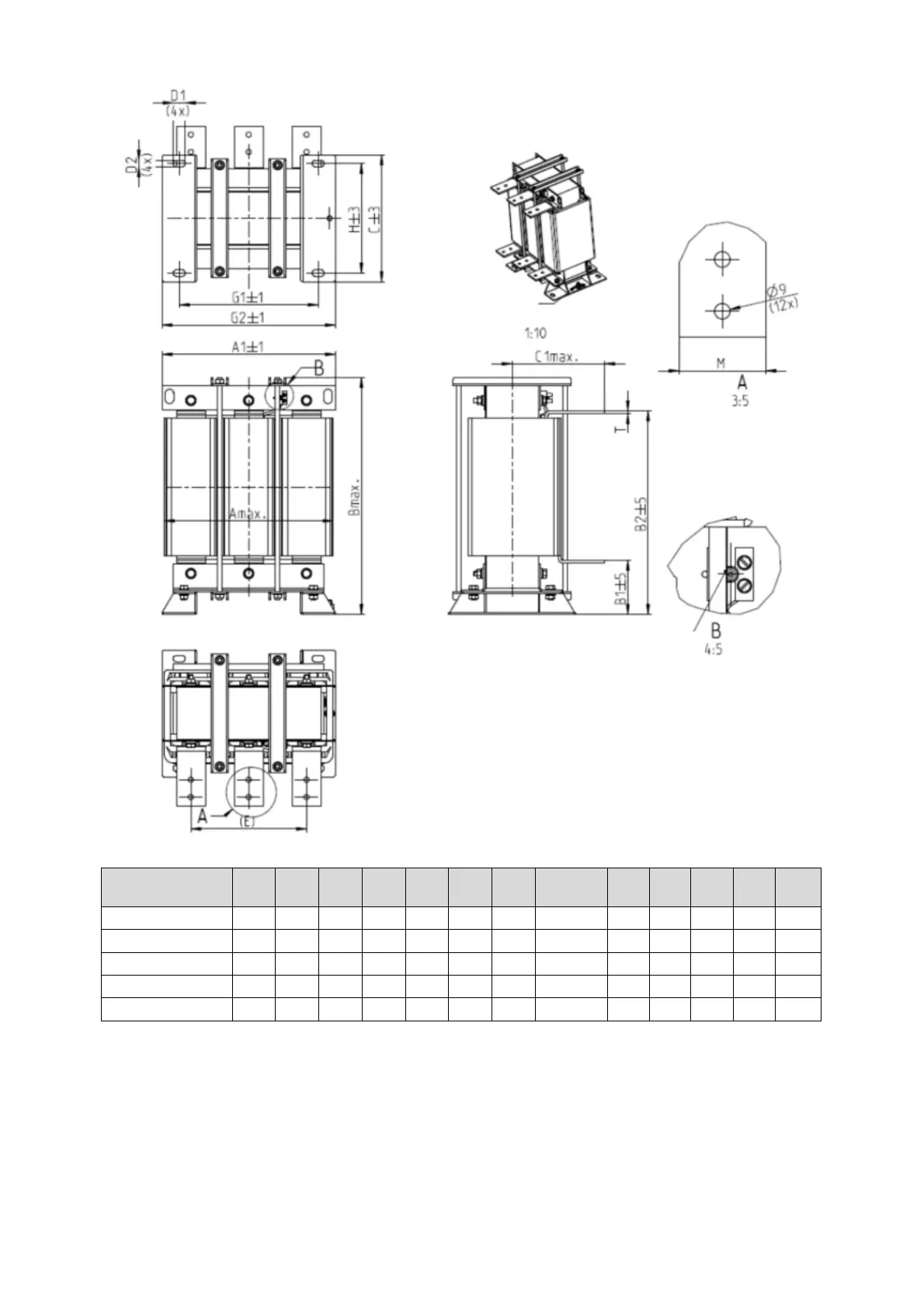

Input AC reactor
Delta part #
A A1 B B1 B2 C C1 D1*D2 E G1 G2 H M*T
DR460AP054 300 300 425 95 355 220 170 11*21 200 240 300 190 50*4
DR550AP044 300 300 445 95 375 220 170 11*21 200 240 300 190 50*4
DR616AP039 360 360 465 105 385 252 190 11*21 240 246 316 220 50*5
DR683AP036 360 360 465 105 385 252 195 11*21 240 246 316 220 50*5
DR866AP028 360 360 520 105 435 272 200 11*21 240 246 316 240 60*6
PE M8 x 23
Tightening torque:
6±0.3 Nm
Terminals: 4 mm
2
Tightening torque: 8.2–10.2 kg-cm /
[7.1–8.9 lb-in] / [0.8–1.0Nm]
Unit: mm
Figure 7-23
Table 7-39
To Next Page
