Chapter 7 Optional AccessoriesC2000 Plus
7-75

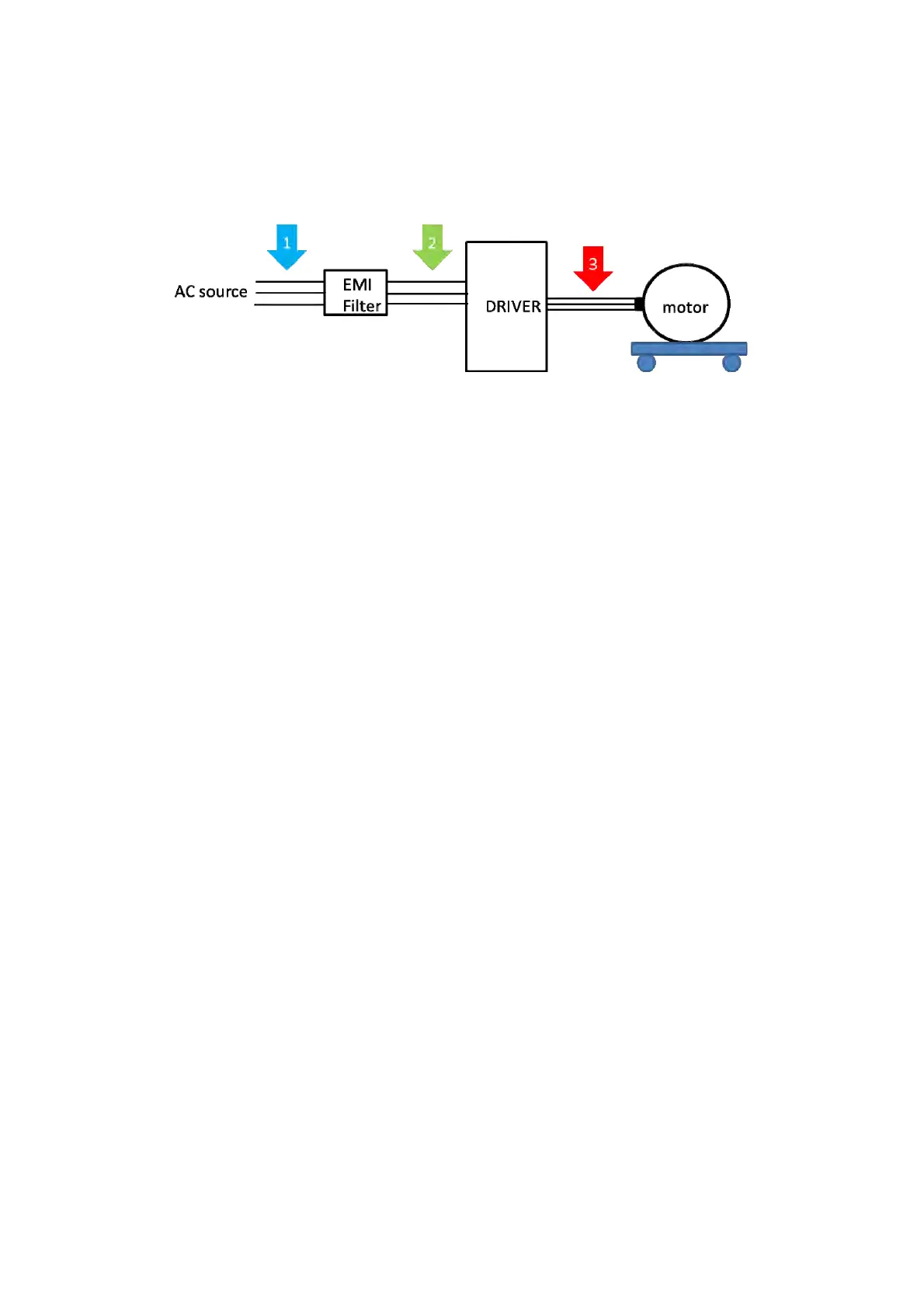

Zero phase reactor installation position diagram:
1* Install at the cable between the power supply and the EMC filter
2* Install at the cable between the EMC filter and the drive
3* Install at the cable between the drive and the motor
Figure 7-52
