Chapter 16 PLC Function ApplicationsMS300
666

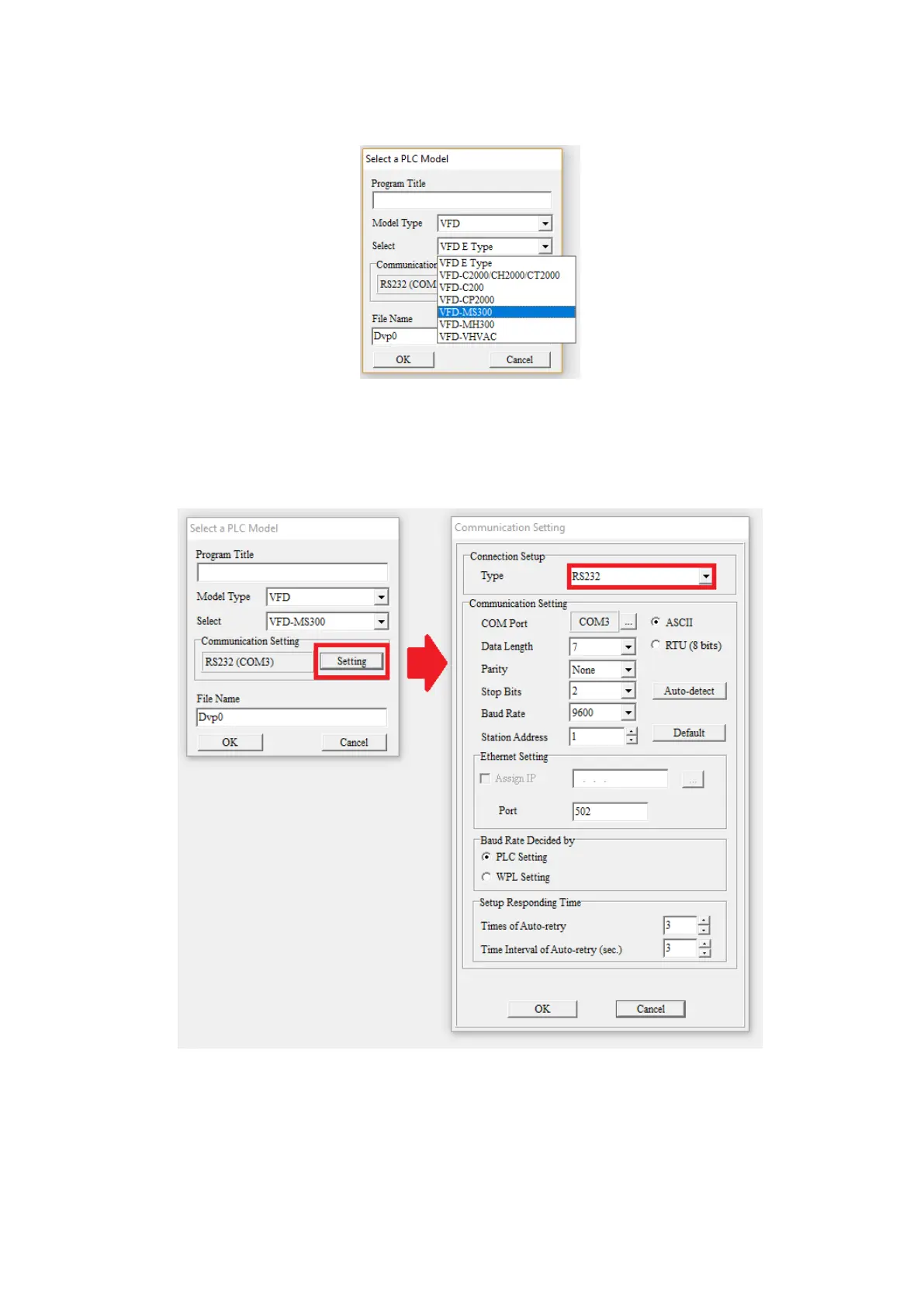

Step 4. This displays the Select a PLC Model dialog box where you can enter the Program Title, File
Name, and select the device and communication settings (see Figure 16-13).
Figure 16-13
In the Communication Setting dialog box, define the communication settings and then click
OK.
Figure 16-14
NOTE: When using USB port (MS300 / MH300 series) to connect to the drive, select RS232
for the Connection Setup.
