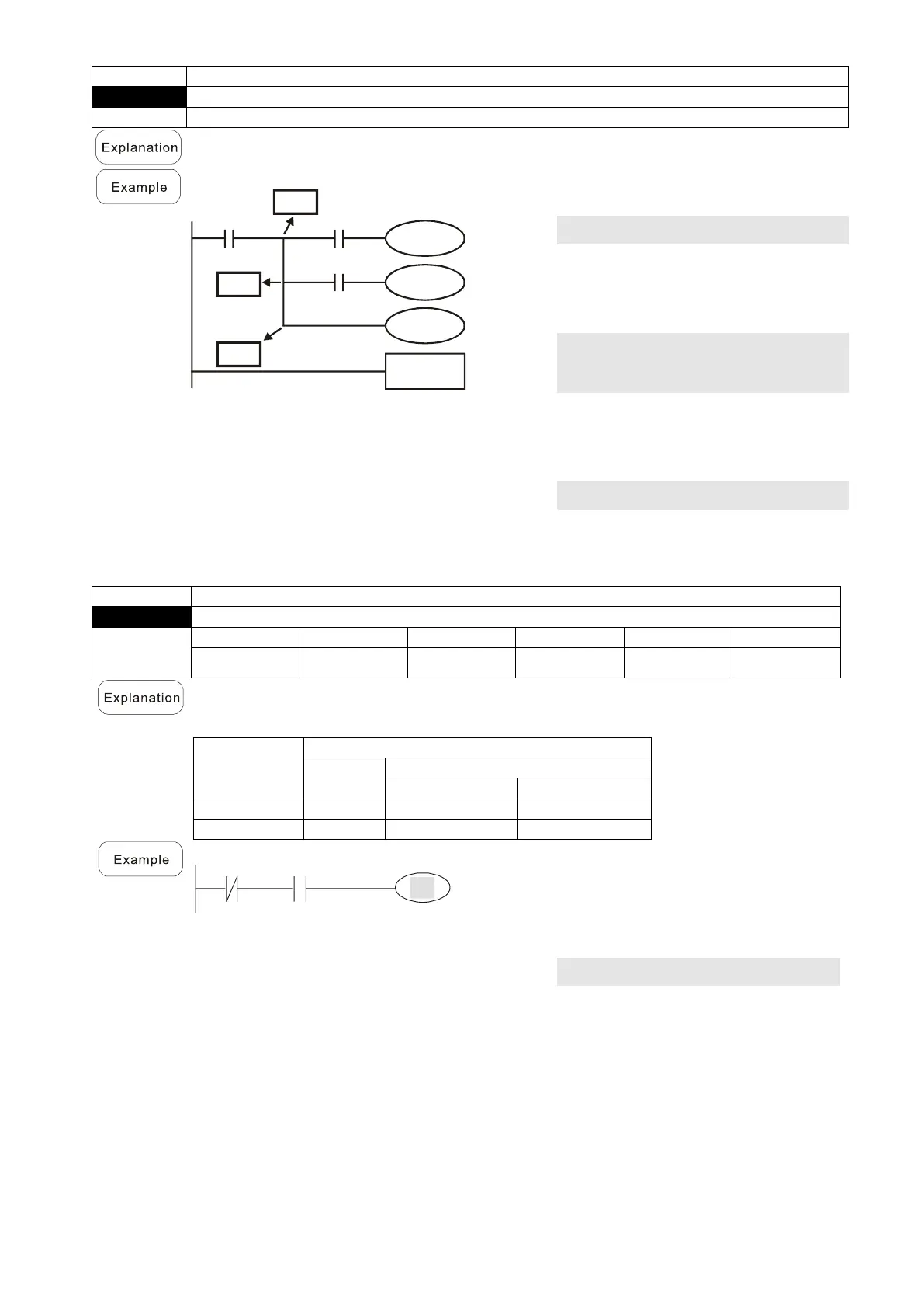

Chapter 16 PLC Function ApplicationsMS300
698
Command
Function
MPP
Read stack
Operand
N/A
Retrieves the result of the previously saved logical operation from the stack, and saves
to the cumulative register. (subtract one from stack pointer)
Ladder diagram:
X0
Y1
X1
M0
X2
Y2
END
MPP
MRD
MPS
Command code:
Description:
LD
X0
Load Contact A of X0
MPS
Save to the stack
AND
X1
Create a series
connection to
contact A of X1
OUT
Y1
Drive Y1 coil
MRD
Read the stack
(pointer does not
change)
AND
X2
Create a series
connection to
contact A of X2
OUT
M0
Drive M0 coil
MPP
Read stack
OUT
Y2
Drive Y2 coil
END
Program conclusion
Command
Function
OUT
Drive coil
Operand
X0–X17
Y0–Y17
M0–M799
T0159
C0–C79
D0–D399
Outputs the result of the logical operation before the OUT command to the designated
element.
Coil contact action:
Result:
Out command
Coil
Access Point:
Contact A (N.O.)
Contact B (N.C.)
FALSE
OFF
Not conducting
Conducting
TRUE
ON
Conducting
Not conducting
Ladder diagram:
X0
X1
Y1
Command code:
Description:
LD
X0
Load Contact B of
X0
AND
X1
Establish a parallel
connection to
contact A of X1
OUT
Y1
Drive Y1 coil
