Chapter 12 Description of Parameter SettingsCP2000
12.1-02-24

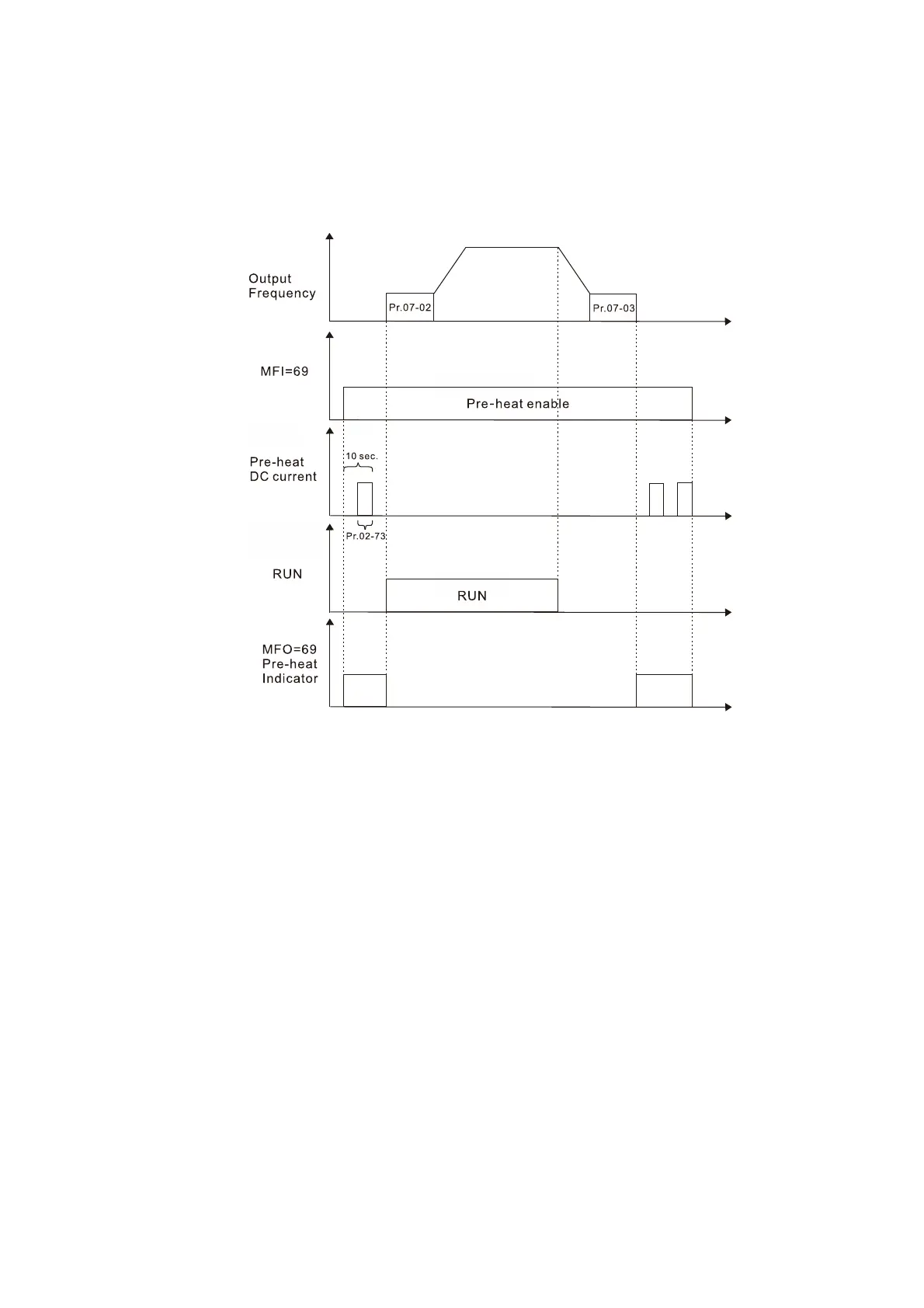

3. Enable DC brake function
DC brake and preheating are enabled at the same time. The motor drive operates with the
same logic described above for preheating. The only difference is that no matter the motor drive
is in operation (RUN) or stops operating (STOP), DC brake enables first. When the motor drive
stops, preheating is activated.
