Chapter 18 Safe T
orque
Off Function│CP2000
18-4

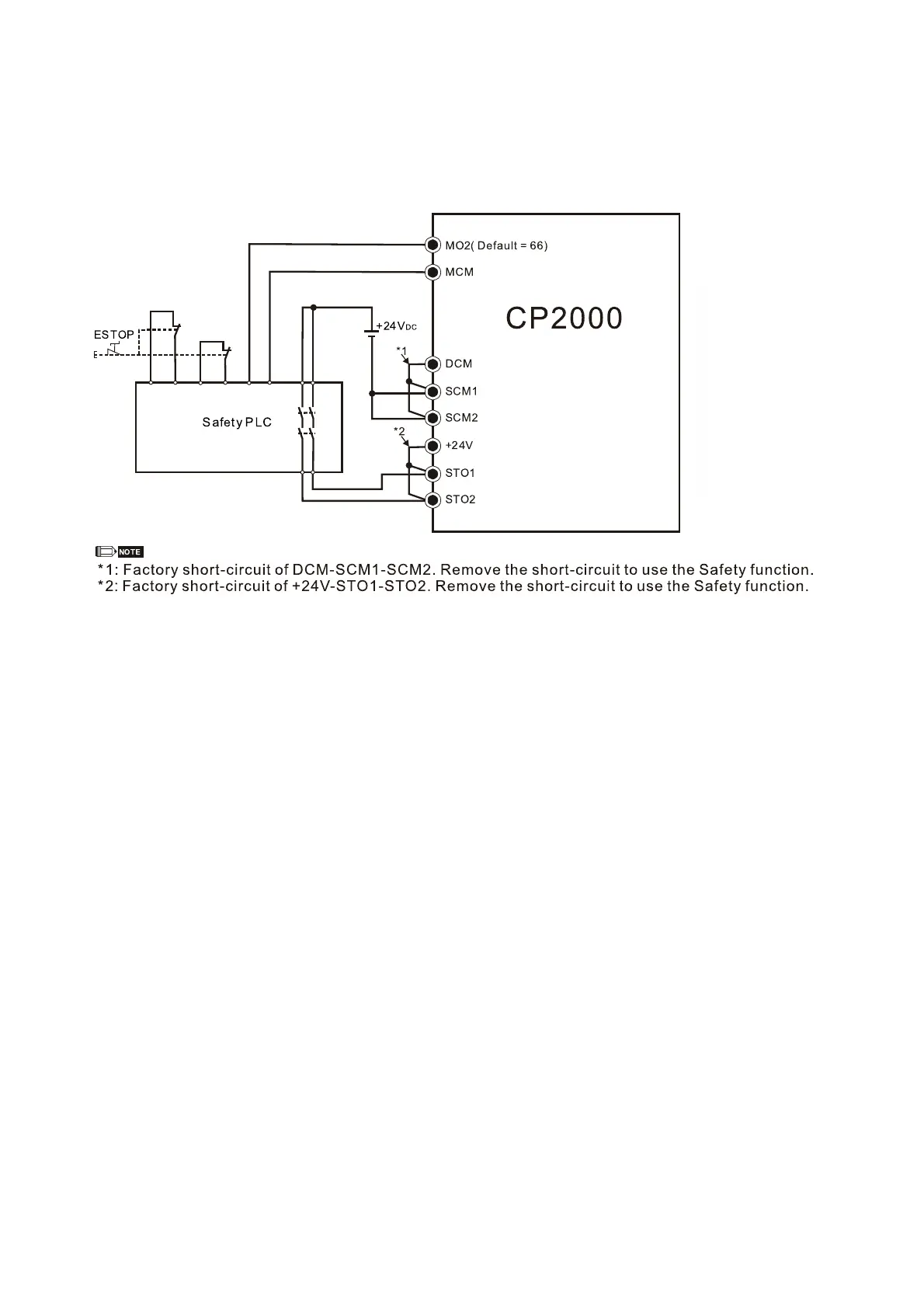

18-3-3 The control loop wiring diagram:
1. Remove the shot-circuit of +
24V
-STO1-STO2 and DCM-SCM1-SCM2
.
2. The wiring as below
diagram. The EST
OP switch must at Clos
e status in normal situation and drive
will be able to Run.
3. STO mode, switch EST
OP open. Drive output stop and keypad
display ST
O.
