Chapter 7 Optional AccessoriesMS300
106

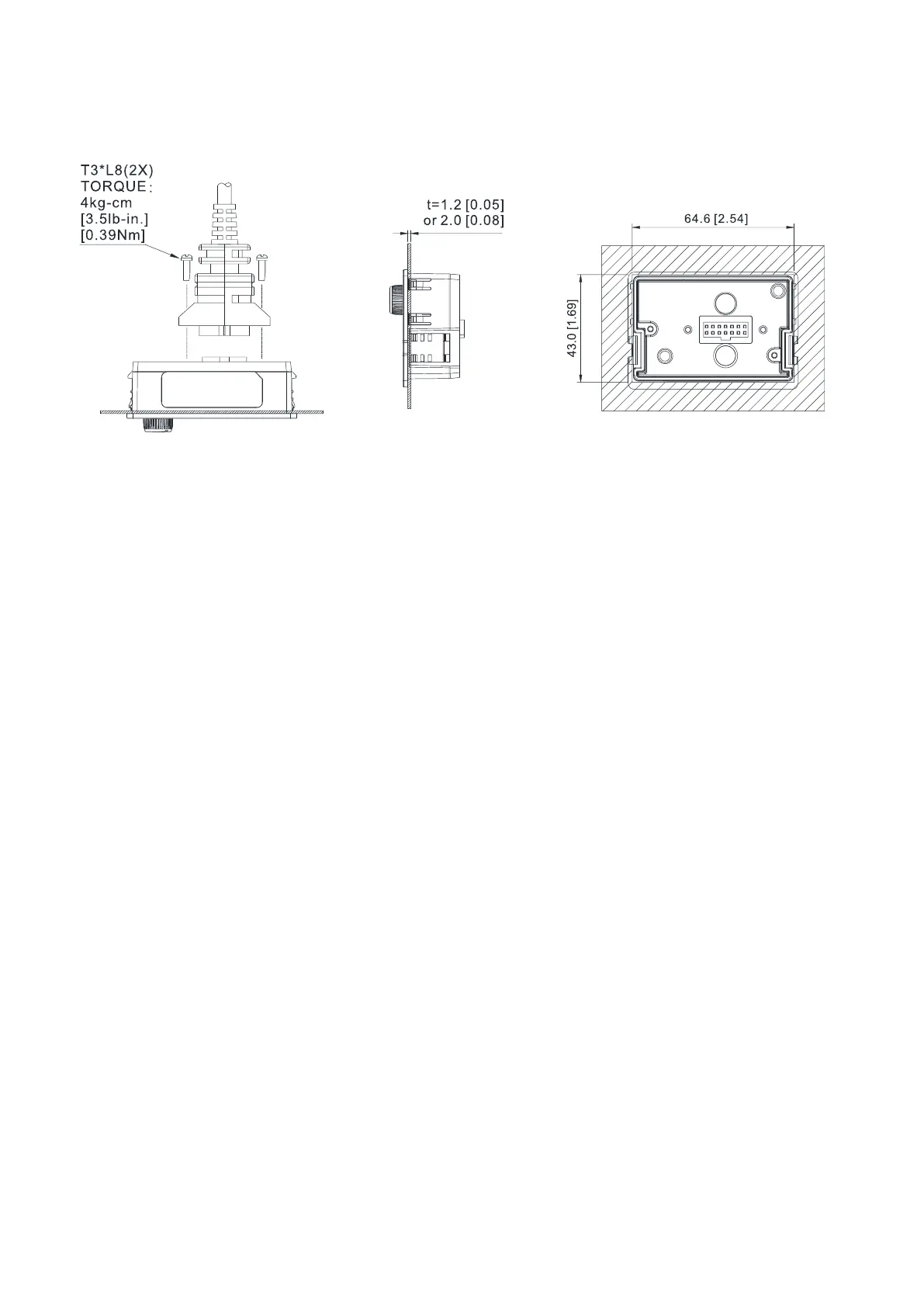

3. Method 2: Mounting through a plate
Plate Thickness = 1.2 (0.05) or 2.0 (0.08)
Unit: mm (inch)
Figure 7-71
