VIVOTEK
User's Manual - 27

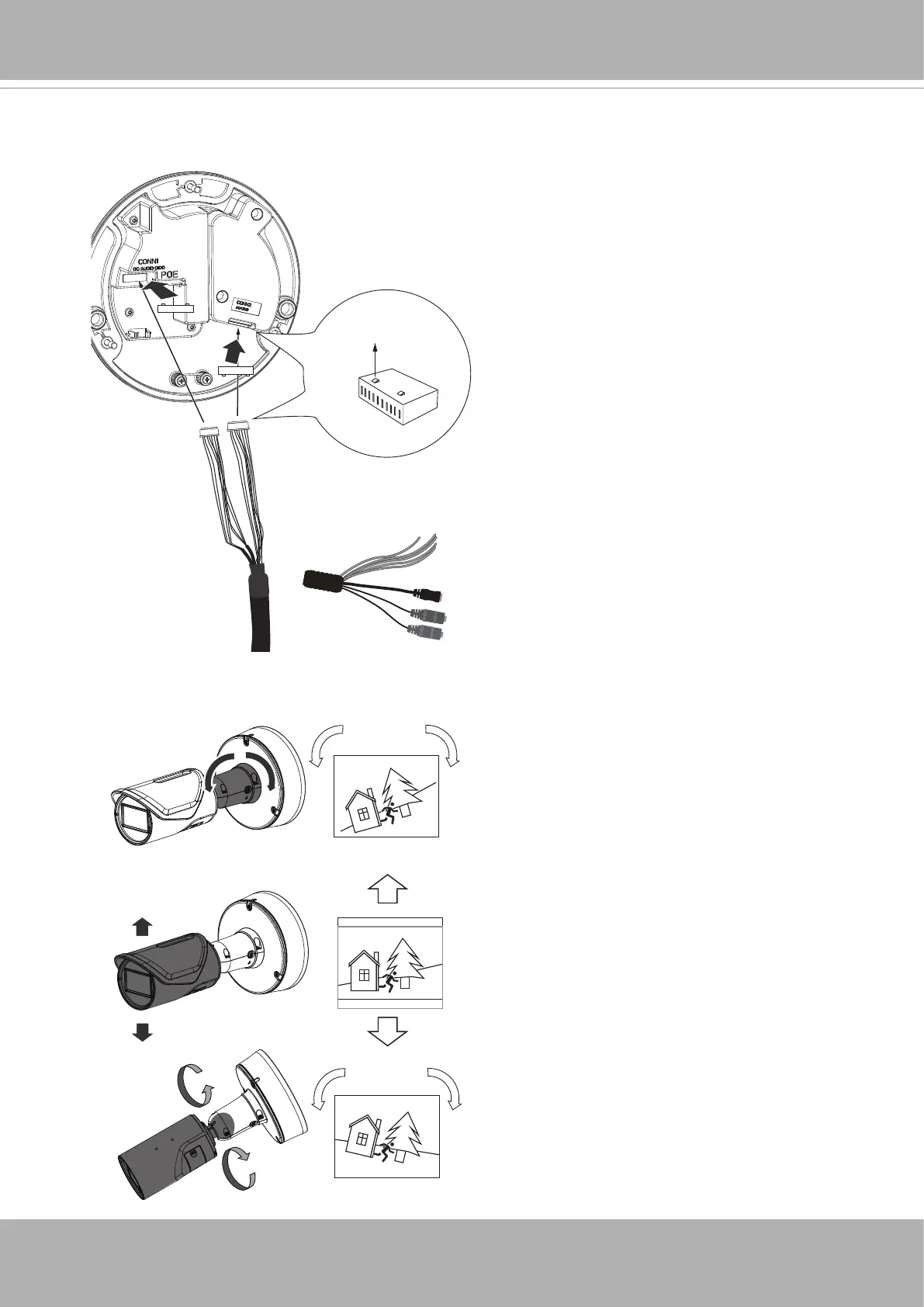

B-2. Connect the pin headers to the I/O extension module and that on the camera. Note
the orientation of the pin headers with the positions of the tabs. Properly install the
grommet as previously described.
180˚ max.
1
2
3
90˚ max.
21. Adjust the shooting direction by pan, tilt, or rotate to cover the area of your interest.
CONN 2 12 pin
CONN 1 10 pin
Tabs
DI-: Green/W
DI2+: Orange/W
DI3+: Yellow/W
DO2-: Gray
DO3-: Blue/W
DO+(12V): Purple
