Demco 1250 - Page 19

Page 19















































,7(0 3$57 '(6&5,37,21 47<
  /2&.:$6+(5

  1&+(;187

  /2&.:$6+(5

  %2/71&;+(;+($'*5

  %2/71&;*5+(;

  %2/71&;*5

  %2/71&;+(;+($'*5

  1871&1</21/2&.

  1871&1</21,16(57/2&.

  1871&/2&.1</21,16(57

  *5200(758%%(529$/ 
 
1&;*'+(;

  %2/71&;*5+(;

  /('/,*+76($/('<(//2:/$03 
 
&(17(5(;7(16,21

  &(17(5+,1*3,1

  /,)7&</,1'(53,1

  /,1.$*(3,1

  ;&</,1'(5

  8%2/7)25;78%(

  ;&</,1'(5

  &(17(5/,1.$*(

  723/,)7$50

  /,)7$50:,7+&</,1'(5($5

  722/%$5&(17(56(&7,21

  &</,1'(56723

  &</,1'(56723

  /,)73,1

  3,16$)(7</2&.;

  %ORFNKROGHU

  +<'02817%5$&.(7

  +<'02817%5$&.(7

  *$8*(+2/'(5

  /,*+732' 
92/80(
'$7(
 10
6$9('%<
'(6&5,37,21
7+('5$:,1*$1'$//
,1)250$7,217+(5(
21$5(7+(3523(57<2)
'(0&2
 7:
10

:(,*+7

;  0,10$&+,1(685)$&(
;; %5($.$//6+$53('*(6
;;; %(1'$1''5$)7 
72/(5$1&(6
722/%$5
$
6+((72)
6&$/(
5(9 '5$:,1*12
$3329%<
'5$:1%<

81/(6627+(5:,6(
63(&,),('$//',0(16,216
$5(,1,1&+(6
7+,5'$1*/(
352-(&7,21
7+6732%2;
%2<'(1,2:$
'$7(
'$7(


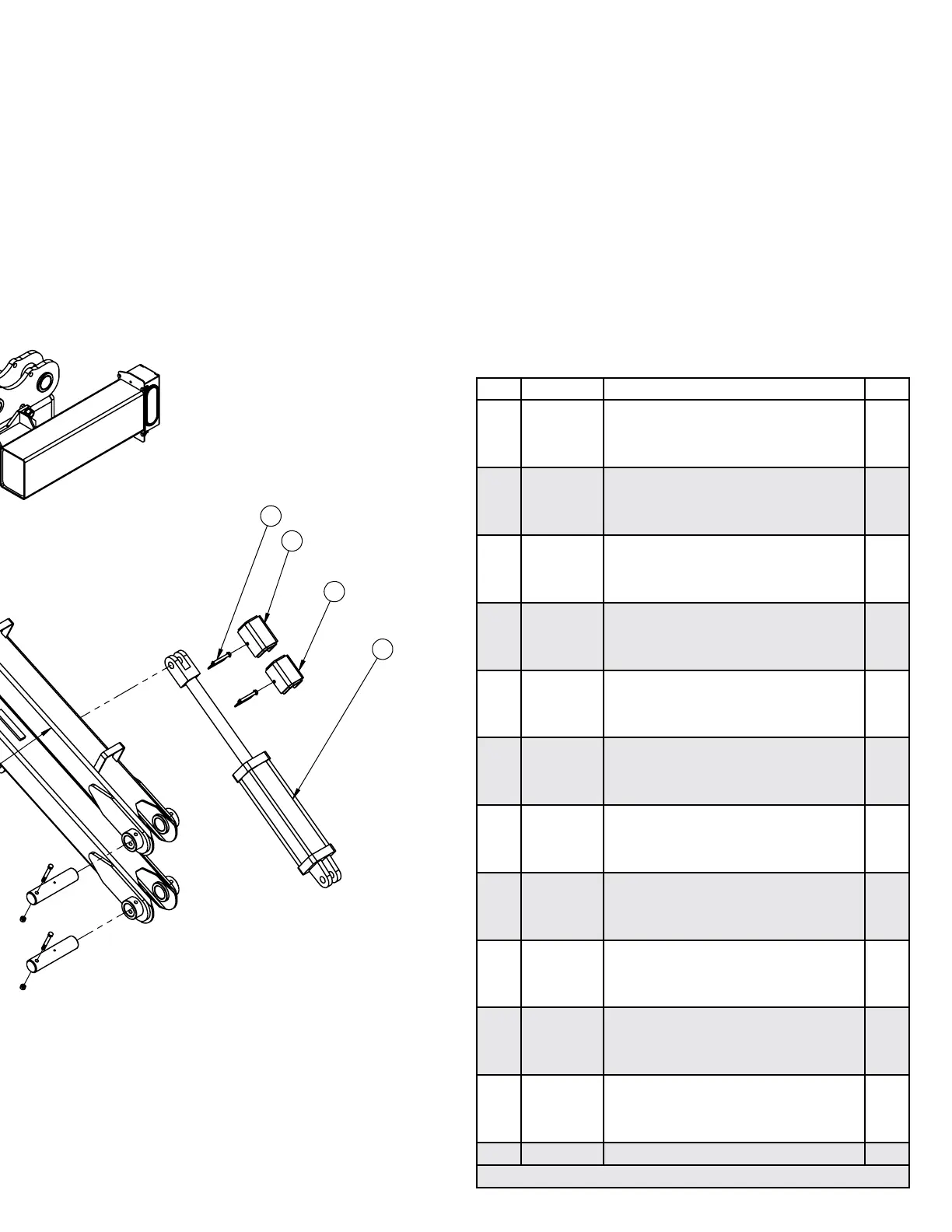

ITEM PART # DESCRIPTION QTY.
1
00060
WASHER, LOCK .375 4
2
00253
NUT, .75 NC HEX 8
3
00254
WASHER, LOCK .75 8
4
00907
BOLT, .375NC X 1.00 HEX HEAD GR.5 12
5
01899
BOLT .375NC X .75 HEX HEAD GR.5 4
6
02207
BOLT, .375NC X 3.00 HEX HEAD GR.5 4
7
02494
BOLT, .375NC X 2.25 HEX HEAD GR.5 8
8
02592
NUT, .375NC NYLON LOCK HEX 24
9
02771
NUT, .434NC NYLON LOCK HEX 8
10
02772
NUT, .25NC LOCK NYLON HEX 8
11
03652
GROMMET RUBBER OVAL 4
12
04055
BOLT, .25NC X 1.00 HEX HEAD GR.5 8
13
04796
BOLT, .438NC X 3.50 HEX HEAD GR.5 8
14
14924
LED LIGHT, SEALED YELLOW LAMP 4
15
15014-76
CENTER EXTENSION 2
16
15065-95
CENTER HINGE PIN 2
17
15066-95
LIFT CYLINDER PIN 2
18
15067-95
LINKAGE PIN 2
19
15082
3 X 6 CYLINDER 2
20
15091
U-BOLT .75 F/ 5 X 7 TUBE 4
21
15257
4” X 14” CYLINDER 2
22
15465-76
60’ CENTER LINKAGE 2
23
15654-76
TOP LIFT ARM 2
24
15655-76
LIFT ARM WITH CYLINDER EAR 2
25
15656-76
TOOLBAR CENTER SECTION 1
26
15659-76
CYLINDER STOP 5” 2
27
15660-76
CYLINDER STOP 4.5” 2
28
15677-95
LIFT PIN 8
29
15678
PIN, SAFETY LOCK .375” X 3” 4
30
15697-76
Block holder 2
31
15698-76
HYD MOUNT BRACKET 4
32
15699-76
HYD MOUNT BRACKET 4
33
15702-76
GAUGE HOLDER 1
34
15855-76
LIGHT POD 2
Please order replacement parts by PART NO., DESCRIPTION, and COLOR
Amber light goes to the top
Red light must face the rear
Connect Yellow wire to left light
Connect Green wire to right light
