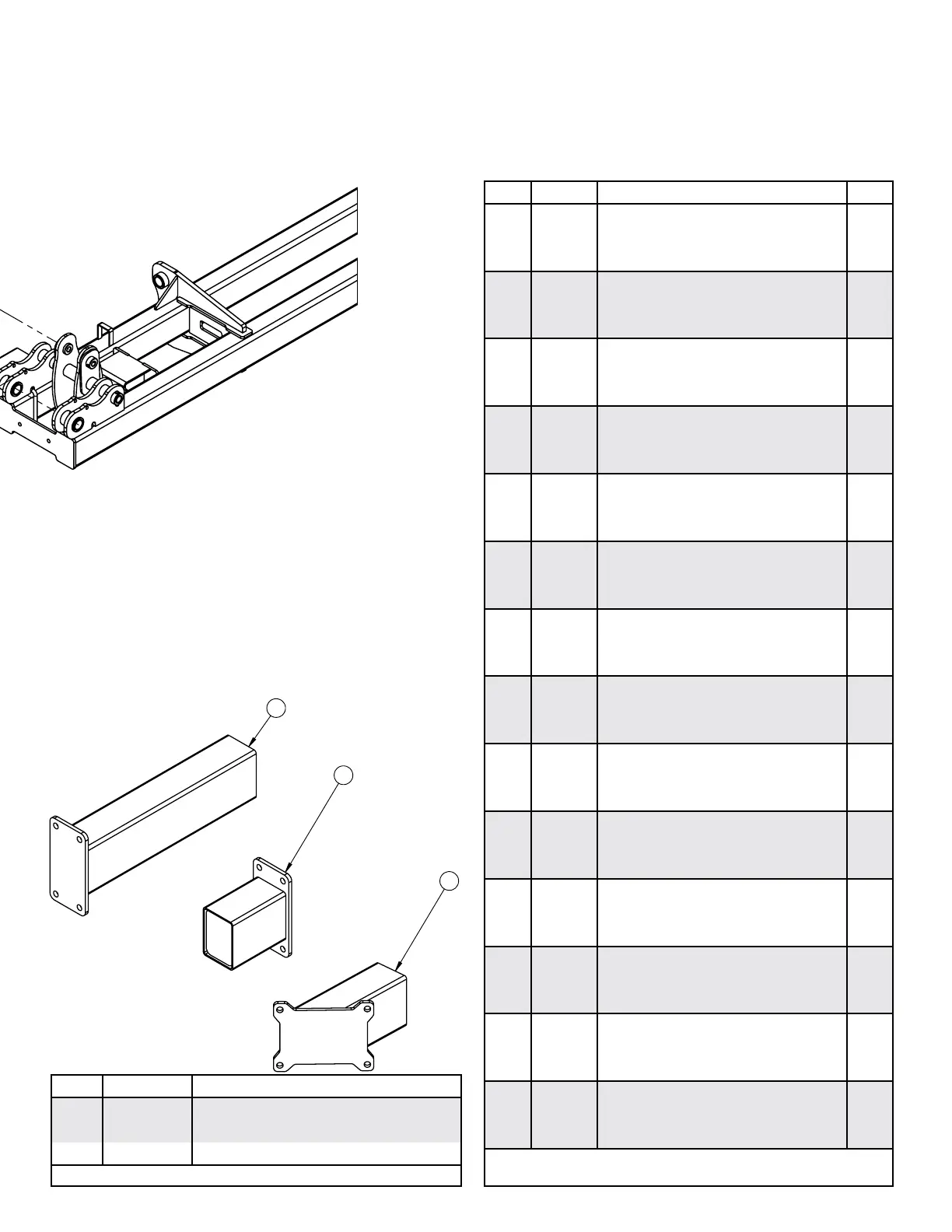

ITEM PART # DESCRIPTION
A
15015-76
GUESS ROW EXTENSION
B
15016-76
20” END ROW EXTENSION
C
15099-76
20” ROW EXTENSION
Please order replacement parts by PART NO., DESCRIPTION, and COLOR.
ITEM PART # DESCRIPTION QTY.
1
00060
WASHER, LOCK .375 4
2
00253
NUT, .75NC HEX 8
3
00254
WASHER, LOCK.75 12
4
00907
BOLT, .375NC X 1.00 HEX HEAD GR.5 4
5
00914
BOLT, .375NC X 1.50 HEX HEAD GR.5 2
6
02207
BOLT, .375NC X 3.00 HEX HEAD GR.5 4
7
02213
NUT WHEEL 12MM X 1.5 ZINC 10
8
02494
BOLT, .375NC X 2.25 HEX HEAD GR.5 12
9
02592
NUT, .375NC NYLON LOCK HEX 22
10
02769
BOLT .375NC X 4.00 GR.5 HEX 4
11
02771
NUT, .434NC NYLON LOCK HEX 12
12
02961
NUT, .75NC NYLON LOCK HEX 4
13
04050
BOLT .438NC X 1.50 GR5 HEX 8
14
04052
BOLT, .75UNC X 1.5 HEX HEAD GR.5 4
15
04369
5-BOLT HUB/SPINDLE 2
16
04796
BOLT, .438NC X 3.50 HEX HEAD GR.5 4
17
05047
BOLT, .75NC X 2.50 HEX HEAD GR.5 4
18
09218-95
HOSE KEEPER, 2 HOSE 4
19
10443
RUBBER BUMPER 2
20
14681
HITCH PIN 2
21
15017-76
40’ OUTER WING 2
22
15035-76
END WING LINKAGE 2
23
15036-76
RIGHT CURVED LINKAGE 2
24
15037-76
LEFT CURVED LINKAGE 2
25
15038-76
RIGHT WING 40’ TOOLBAR 1
26
15039-76
LEFT WING 40’ TOOLBAR (NOT SHOWN) 1
27
15062-76
WING REST 2
28
15063-95
CENTER HINGE PIN 2
29
15064-95
END HINGE PIN 2
30
15067-95
LINKAGE PIN 6
31
15068-95
CENTER LINK PIN 2
32
15079-95
LINKAGE PIN 2
33
15083
3.5 X 20 CYLINDER 2
34
15084
3 X 20 Cylinder 2
35
15090
TIRE 20.5 X 8.0 -10 PLY W/ RIM 2
36
15091
U-BOLT FOR 7 X 5 TUBE 4
37
15100-76
STOP BLOCK 2
38
15101-76
SPACER BLOCK 2
39
15102-76
HOSE HOLDER 4
40
15467-76
MOUNT FOR GAUGE WHEEL 2
41
15524-76
RIGHT GAUGE ARM 1
42
15525-76
LEFT GAUGE ARM (NOT SHOWN) 1
Please order replacement parts by PART NO., DESCRIPTION, and
COLOR
NOTE: ONLY RIGHT SIDE SHOWN
