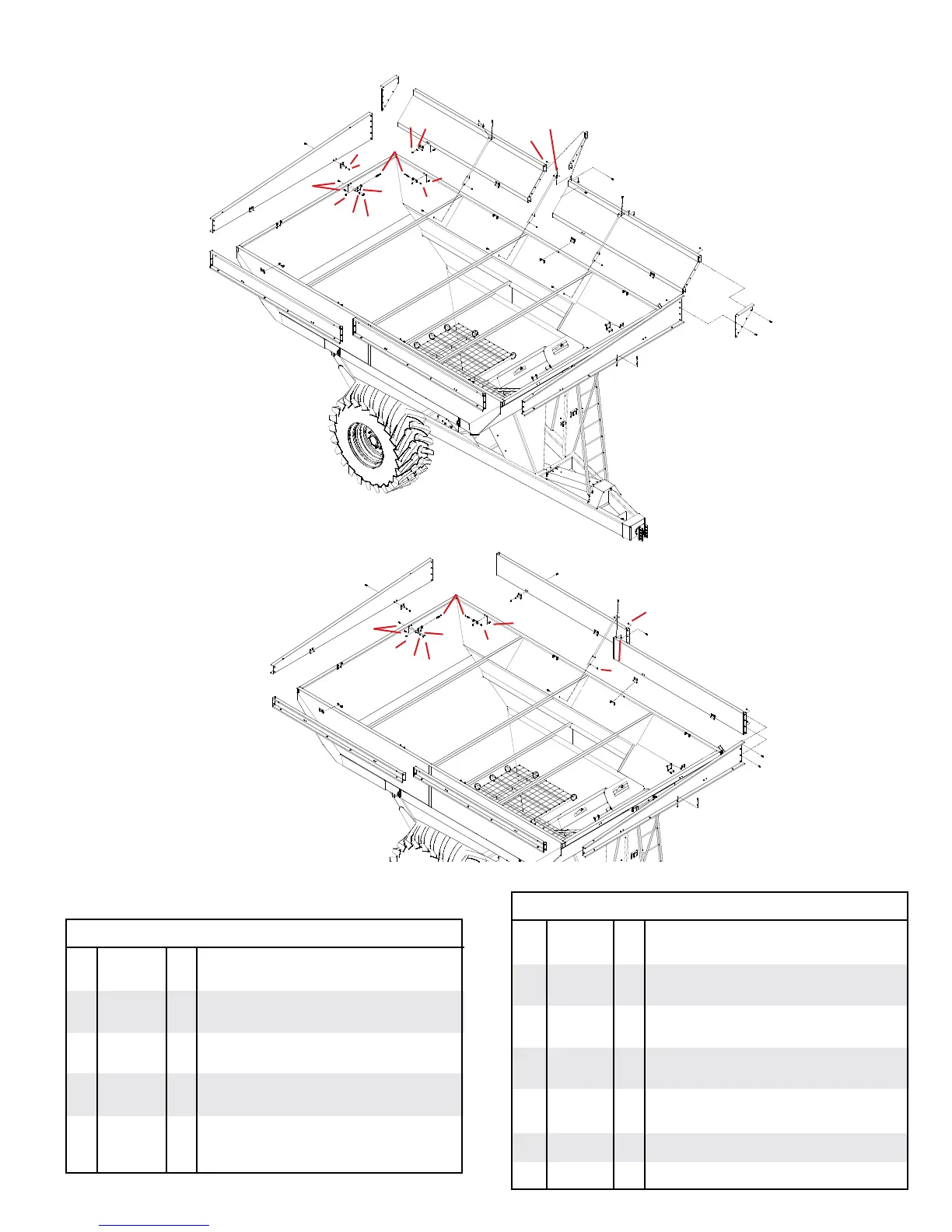

850 & 1050 EXTENSION ASSEMBLY
REF. PART
NO. NO. QTY. DESCRIPTION
Please order replacement parts by PART NO. and DESCRIPTION.
1
2
18
23
19
19
16
16
16
21
17
22
24
24
24
20
20
4
4
9
9
9
9
9
9
9
9
9
9
9
9
5
5
6
6
6
6
6
6
13
8
8
8
8
8
8
8
8
10
10
10
10
10
10
10
10
10
10
10
10
10
10
13
13
13
13
13
13
13
14
13
15
15
7
7
7
7
7
7
7
7
7
7
1. 10625-30 1 Front Extension
2. 10630-30 1 Rear Extension
3. 10626-30 2 Left Extension
4. 10627-30 2 Right Extension
5. 13152-30 4 Front/Rear Hinge
6. 13153-30 8 Side Hinge
7. 13154-30 12 Extension Hinge Pivot Bushing
8. 00004 56 5/16” Flatwasher
9. 01263 88 5/16” x 3/4” Hex Hd. Bolt Gr. 5
10. 02802 94 5/16” Locknut
11. 10668-30 1 Cross Angle Brace
12. 00907 1 3/8” X 1” Hex Head Bolt (Gr. 5)
13. 02592 14 3/8” Nylon Insert Locknut
14. 02990 6 5/16” x 1” Hex Head Bolt (Gr. 5)
15. 02769 12 3/8” x 4” Hex Head Bolt (Gr. 5)
16. 13052 1 3/8” x 1-1/4” Truss Bolt
12
12
12
12
REF. PART
NO. NO. QTY. DESCRIPTION
5. 13152-30 4 Front/Rear Hinge
6. 13153-30 8 Side Hinge
7. 13154-30 12 Extension Hinge Pivot Bushing
8. 00004 56 5/16” Flatwasher
9. 01263 108 5/16” UNC x 3/4” Hex Head Bolt (Gr. 5)
10. 02802 115 5/16” Nylon Insert Locknut
12. 00907 3 3/8” UNC x 1” Hex Head bolt (Gr. 5)
13. 02592 18 3/8” Nylon Insert Locknut
14. 02990 7 5/16” UNC x 1” Hex Head Bolt (Gr. 5)
15. 02769 12 3/8” x 4” Hex Head Bolt (Gr. 5)
16. 03170 3 3/8” x 1-1/4” Truss Bolt
17. 12670-30 1 Front Extension
18. 12671-30 1 Rear Extension
19. 12668-30 2 Left Extension
20. 12669-30 2 Right Extension
21. 12890-30 1 Extension Spacer Plate
22. 12699-30 1 Front End Cap
23. 12700-30 1 Rear End Cap
24. 12830-30 3 Brace Pipe
850 Extension Parts List
1050 Extension Parts List
