Demco 850 - Scale Option and Parts Breakdown

Page 28

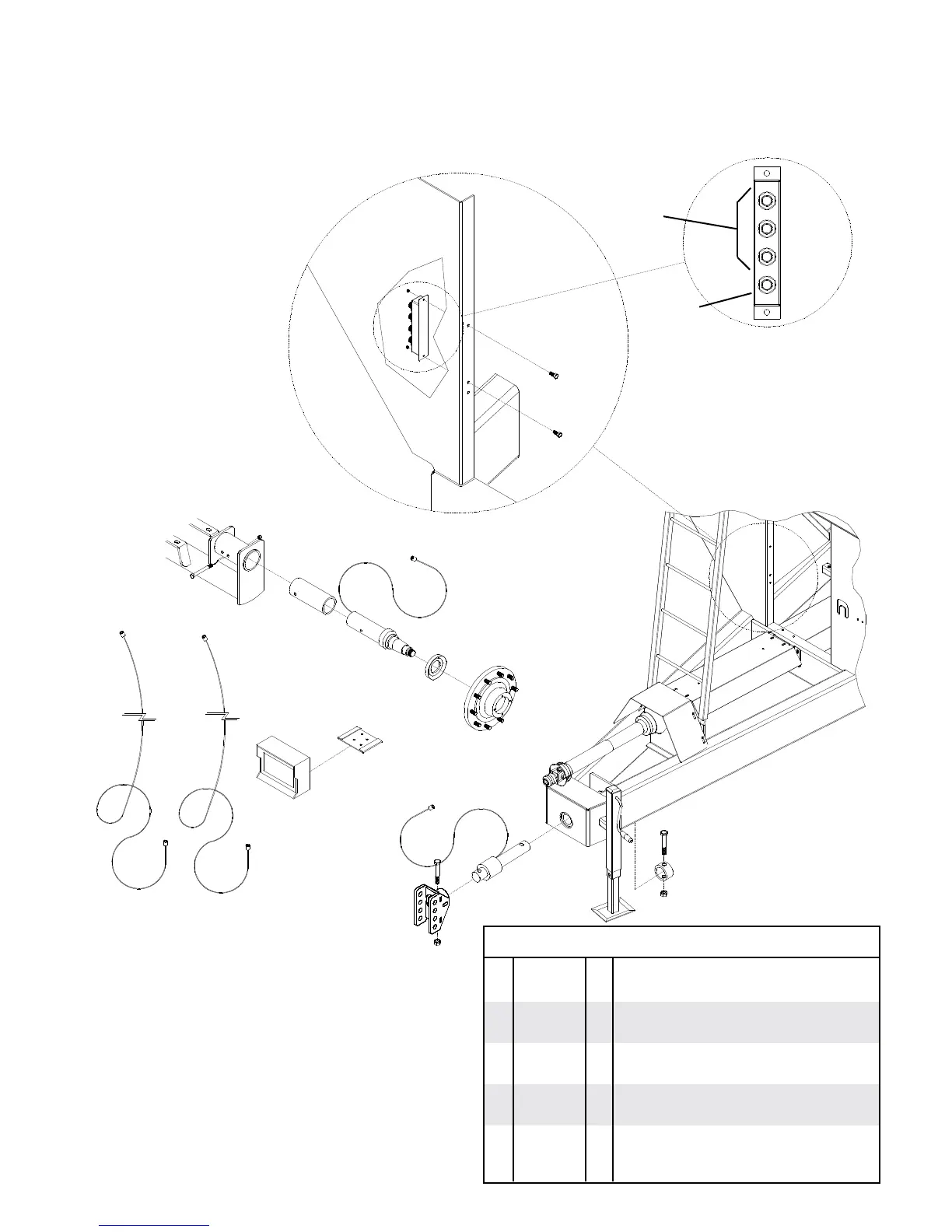

SCALE OPTION PARTS BREAKDOWN
1
2
3
4
5
6
7
8
9
10
For Parts Breakdown of all other Hub
and axle parts see page 14-16.
REF. PART
NO. NO. QTY. DESCRIPTION
1. 09410 2 Spindle Insert (850/1050)
2. 12260 2 Spindle with 21’ Wire Harness (850/1050)
- 14501 2 Spindle with 21’ Wire Harness (1150)
3. 09442 2 Grease Seal (850/1050)
- 14494 2 Grease Seal (1150)
4. 12263 1 Hitch Scale with 12’ Wire Harness
5. 11698 2 7/8” x 5 1/2” Hex Head Bolt Gr. 8
6. 10678 2 7/8” Nylon Insert Locknut
7. 12346-30 1 Hitch Assembly
8. 09441 1 8’ Power Cord Harness
9. 12259 1 640M Scale Monitor w/ printer port
10. 09440 1 640M Scale Bracket
11. 12257 1 Junction Box for 640M Scale unit
12. 12264 1 25’ Junction Box to Console Harness (640M)
13. 12375-30 1 Hitch Stop Collar (Black)
14. 13266 1 15’ Extension Cable (not shown)
Front View of
Junction Box
From the
Weighbars
To the
Tractor
11
12
5
6
13
