Demco DA10 - Actuator Parts Breakdown and Parts List

Page 13
5398 Master Cylinder Repair Kit
(gasket 05681 included)
4
4
4
3
1
6
4
4
4
9
8
8
2 5
5
7
9
9
9
22
23
13
21
10
11
14
14
16
19
18
17
24
20
15
15
24

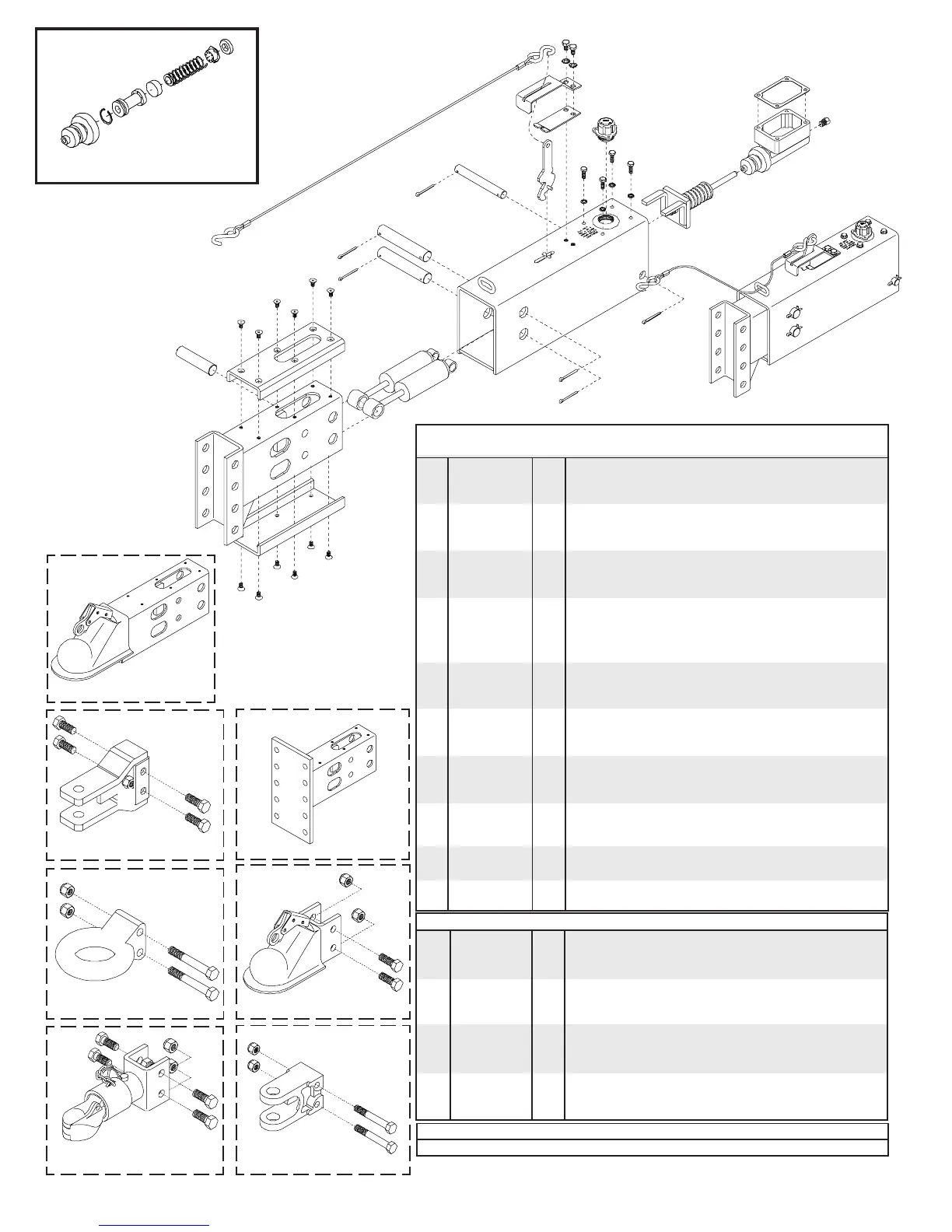

MODEL DA10 ACTUATOR PARTS BREAKDOWN
*1. 05972 1 Inner Slider Tb. Chan. Down (Shown)
*- 05335 - Inner Slider Tube Channel Center
*- 09670 - Inner Slider Tube Channel Up
2. 05987 1 Top Wear Pad
3. 05988 1 Bottom Wear Pad
4. 02206 12 1/4"-20UNC x 1/2" Flat Head Screw
5. SB12426 2 Damper Shock
6. 05973 1 Front Shock Pin
7. 03875 1 Outer Case (03875 shown see page 14 for others)
8. 05986 2 Connecting Pin
9. 02363 6 5/32" x 1-1/4" Cotter Pin
10. 05974 1 Rear Shock Pin
11. *05693 1 Emergency Lever Spring
12. 05424 2 5/16" External Tooth Lock Washer
13. 05961 2 5/16"-18UNC x 5/8" Hex Head Bolt Gr.5
14. 01076 4 1/4"-20UNC x 3/4" Hex Head Bolt Gr.5
15. 00057 4 1/4" Lock Washer
16. *05951 1 Emergency Lever
17. 05989 1 Push Rod Assembly
18. 05680 1 Master Cylinder
19. 05681 - Replacement Master Cyl. Gasket ONLY
20. SB12098 1 1/8" pipe - 3/16" Inverted Flare Fitting w/ orifice
21. 03876 1 Master Cylinder Cap w/ Diaphragm and O-Ring
- 05849 - O-Ring (replacement)
22. * 05408 1 3/32" Cable with hooks (both ends)
- SB10555 - Replacement S-hooks ONLY
23. 03866 1 Lever Guide
- BH21003 - Replacement Towable/Not Towable Decal
24. 05687 1 Master Cyl. Protective Boot
REF.
NO. PART NO. QTY. DESCRIPTION
DA10 OPTIONS
25. 05593 1 Clevis
26. 09557 1 Pintle Ring (6 Ton Capacity)
27. 02434 2 5/8"-11UNC x 4 1/2" Hex Head Bolt Gr.5
28. 03730 4 5/8"-11UNC Stover Lock Nut
29. 02587 2 5/8"-11UNC Nylon Insert Lock Nut
*30. 05823 1 2" Bulldog Coupler Welded to Clevis Channel
*- 05557 1 2-5/16" Bulldog Coupler Welded to Clevis Channel
*31. 07138 1 2-5/16" Lever Lock Coupler Slider Tube
32. 03420 1 Inner Slide Tube w/ Flat Plate
33. 04051 4 5/8"-11 UNC x 1-1/2" Hex Head Bolt Gr.5
34. 07678 1 2-5/16" Lever Lock Coupler
35. 07203 1 20000# Forged Yoke (while supplies last)
Please order replacement parts by PART NO. and DESCRIPTION.
29
29
27 33
33
28
28
29
29
- 5401 - Lever Replacement Kit (incl. items w/*)
- 5398 - Master Cylinder Repair Kit w/ gasket
32
31
2 5/6” RATED AT 10000#
34
2 5/16” RATED AT 10000#
27
27
RATED AT 10000#
35
33
33
30
33
33
28
28
2 5/16” RATED AT 10000#
27
26
RATED AT 10000#
33
33
25
33
RATED AT 10000#
33
28
Model DA10 ACTUATOR PARTS LIST
2” RATED AT 7000#
Standard Outer
Case Shown,
See Page 14 for
Other Options
12
Items marked with * are
available in primed or
plated. Please specify
which when ordering
