Denon AVR-S540BT User Manual

Speaker connection
Here we connect the speakers in the room to this unit.
This section explains how to connect them using typical examples.
NOTE
0
Disconnect this unit’s power plug from the power outlet before connecting the
speakers. Also, turn off the subwoofer.
0
Connect so that the speaker cable core wires do not protrude from the speaker
terminal. The protection circuit may be activated if the core wires touch the rear
panel or if the + and - sides touch each other. (“Protection circuit” (v
p. 126))
0
Never touch the speaker terminals while the power cord is connected. Doing so
could result in electric shock. When the “Setup Assistant” (page 7 in the separate
“Quick Start Guide”) is running, follow the instructions in the “Setup Assistant”
screen for making connections. (Power is not supplied to the speaker terminals
while the “Setup Assistant” is running.)
0
Use speakers with an impedance of 6 – 16 Ω/ohms.
o

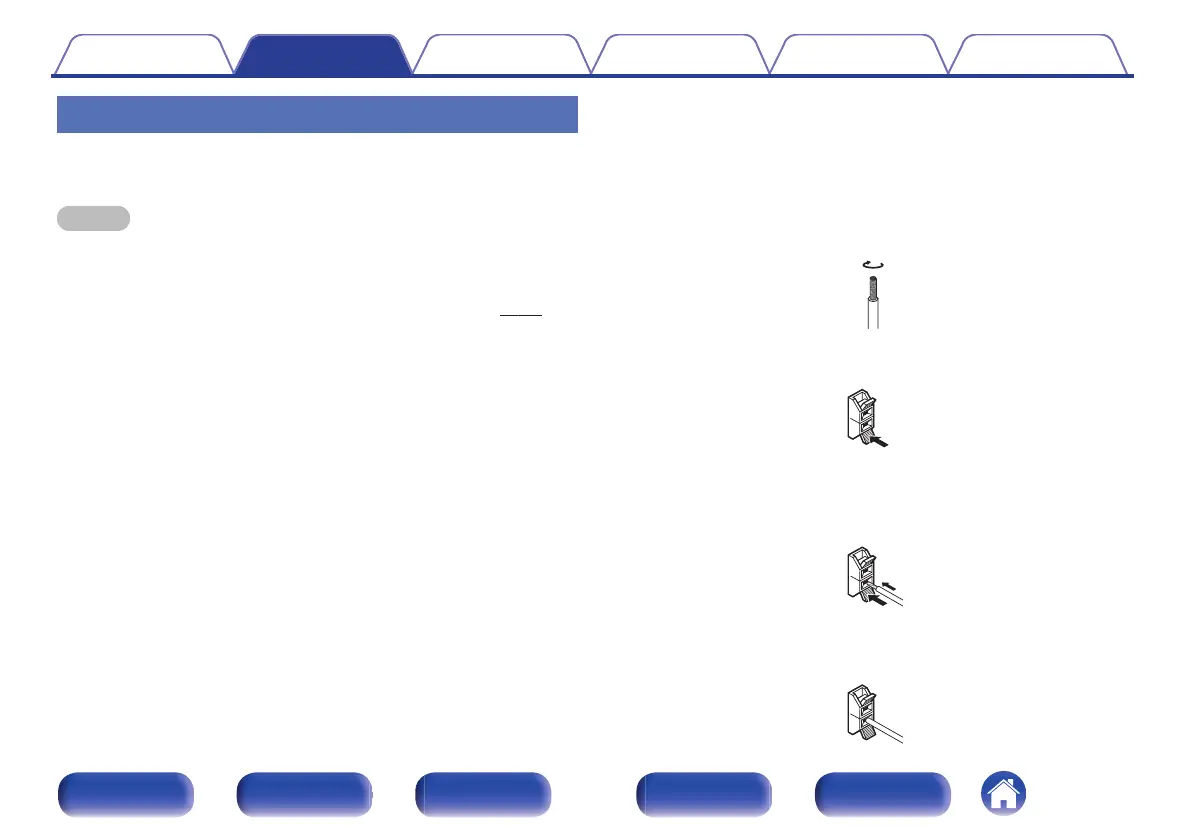

Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and –
(black) polarities on the speakers being connected to this unit, and be
sure to connect the channels and polarities correctly.
1
Peel off about 3/8 inch (10 mm) of sheathing from the
tip of the speaker cable, then either twist the core wire
tightly or terminate it.
.
2
Press the lever on the speaker terminal.
.
3
Holding the lever on the speaker terminal, insert the
core wire of the speaker cable all the way into the
speaker terminal.
.
4
Release your finger from the lever on the speaker
terminal.
.
Contents
Connections Playback Settings Tips Appendix
22
Front panel Display Rear panel Remote Index

Denon AVR-S540BT Specifications

General

Channels	5.2
Power Output per Channel	70 W (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
Output Power (6 ohm, 1 kHz, 0.7% 2ch Drive)	90 W
Output Power (6 ohm, 1 kHz, 10% 1ch Drive)	140 W
HDMI Inputs	5
HDMI Outputs	1
HDMI Version	2.0a
HDCP Support	2.2
4K/60 Hz Pass-through	Yes
Dolby Format	Dolby TrueHD, Dolby Digital Plus
DTS Format	DTS-HD Master Audio
Auto Speaker Setup	Yes (Audyssey MultEQ)
Bluetooth	Yes
FM Tuner	Yes
AM Tuner	Yes
Input Sensitivity/Impedance	200 mV / 47 kOhm
Dimensions (W x H x D)	434 x 151 x 319 mm
Ethernet Port	No
Wi-Fi	No
HDR Support	HDR10, HLG
Frequency Response	10 Hz - 100 kHz - +1/-3 dB
Total Harmonic Distortion	0.08% (20 Hz - 20 kHz)
Signal-to-Noise Ratio	98 dB (IHF-A weighted)
USB Port	Yes (Front)
