Denon AVR-S570BT Quick Start Guide

9

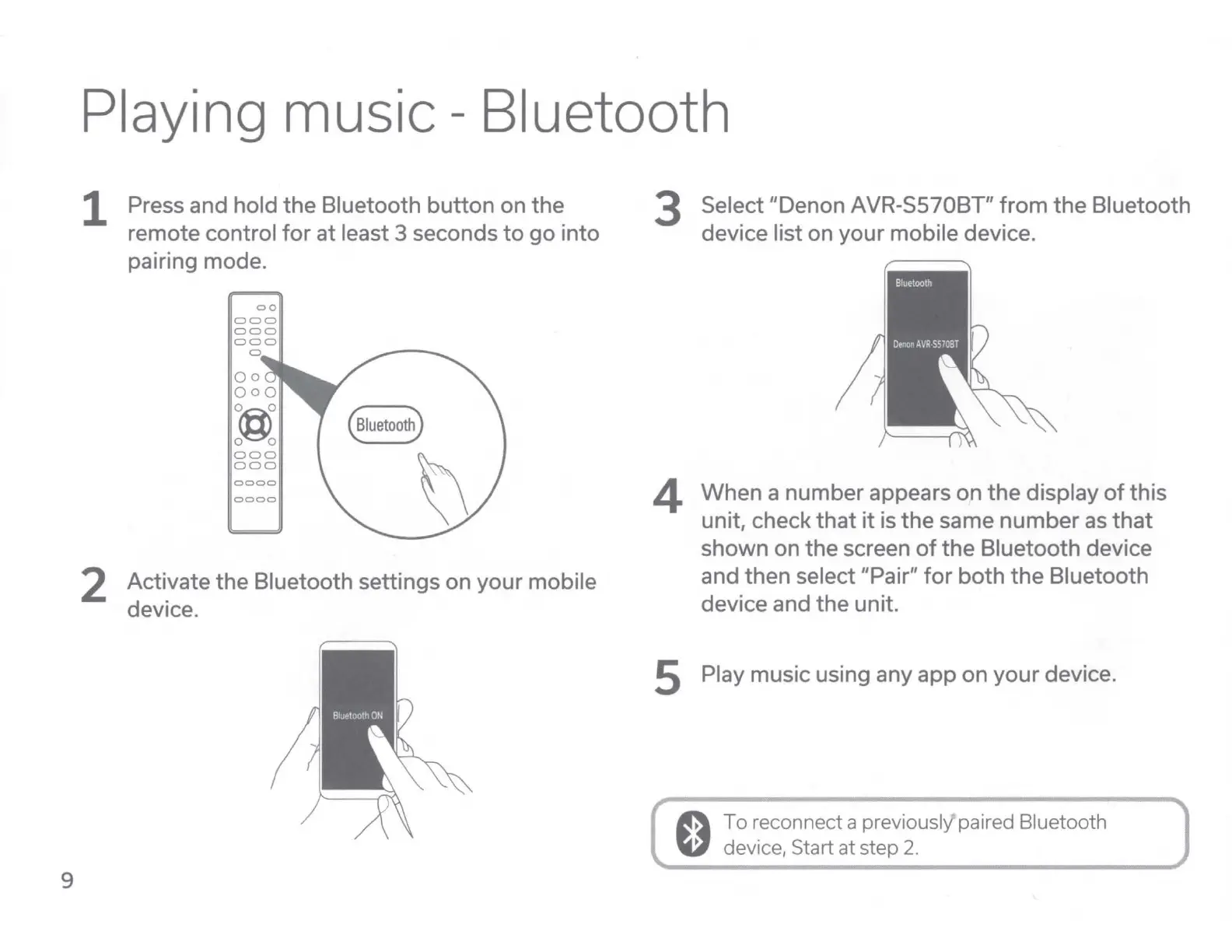

Playing music - Bluetooth
1 Press and hold the Bluetooth button on the
remote control for at least 3 seconds to go into
pairing mode.
00
DOD
DOD
DOD
D
:@ o
0 0
000
000
ODDO
0000
2 Activate the Bluetooth settings on your mobile
device.
3 Select "Denon AVR-S570BT" from the Bluetooth
device list on your mobile device.
4
When a number appears on the display of this
unit, check that it is the same number as that
shown on the screen of the Bluetooth device
and then select "Pair" for both the Bluetooth
device and the unit.
S Play music using any app on your device.
To reconnect a previously paired Bluetooth
device, Start at step 2.

Denon AVR-S570BT Specifications

General

Channels	5.2
Power Output	70W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
HDMI Outputs	1
4K/60Hz Pass-through	Yes
Bluetooth	Yes
Dolby Vision	Yes
HDR10	Yes
HDCP 2.3 Support	Yes
HDMI 2.1	No
4K/120Hz pass-through	No
HDR Support	Yes
eARC	Yes
Dolby Technologies	Dolby TrueHD, Dolby Digital Plus
DTS Technologies	DTS-HD Master Audio
Frequency Response	10Hz-100kHz
Total Harmonic Distortion	0.08%
Signal-to-Noise Ratio	98dB
Supported Audio Formats	MP3, WMA, AAC, FLAC, ALAC, WAV
Input Sensitivity/Impedance	200 mV / 47 kΩ
Dimensions (W x H x D)	434 x 151 x 319 mm
Weight	7.5 kg
