Denon AVR-S570BT Quick Start Guide

5

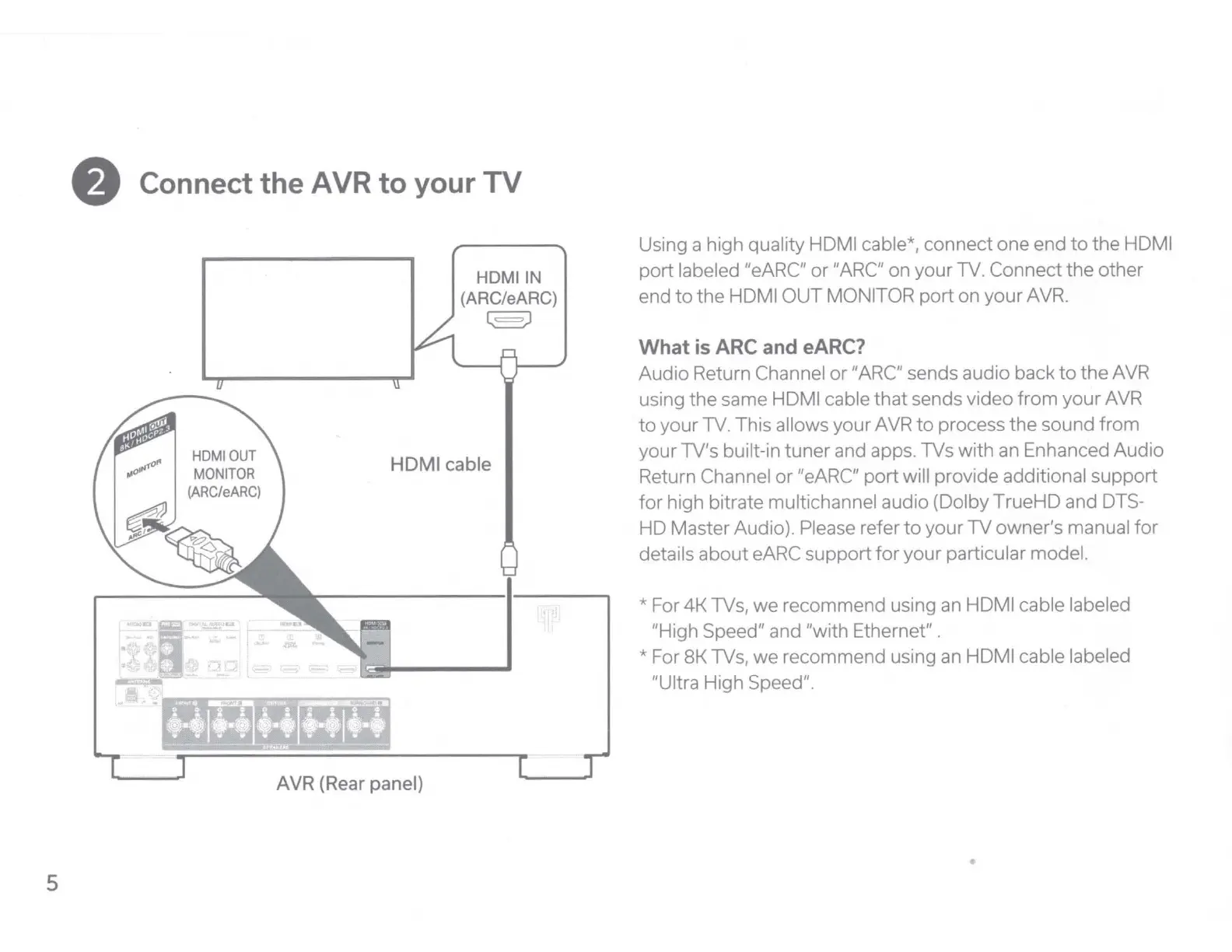

8 Connect the AVR to your TV
HDMIOUT
MONITOR
(ARC/eARC)
~<>
HDMI IN
(ARC/eARC)
L_ = )
HDMI cable
AVR (Rear panel)
Using a high quality HDMI cable*, connect one end to the HDMI
port labeled "eARC" or "ARC" on your TV. Connect the other
end to the HDMI OUT MONITOR port on your AVR.
WhdisARCandeARC?
Audio Return Channel or "ARC" sends audio back to the AVR
using the same HDMI cable that sends video from your AVR
to your TV . This allows your AVR to process the sound from
your TV
1
s built-in tuner and apps. TVs with an Enhanced Audio
Return Channel or "eARC" port will provide additional support
for high bitrate multichannel audio (Dolby TrueHD and DTS-
HD Master Audio). Please refer to your TV owner
1
s manual for
details about eARC support for your particular model.
* For 4K TVs, we recommend using an HDMI cable labeled
"High Speed" and "with Ethernet" .
* For BK TVs, we recommend using an HDMI cable labeled
"Ultra High Speed".
•

Denon AVR-S570BT Specifications

General

Channels	5.2
Power Output	70W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
HDMI Outputs	1
4K/60Hz Pass-through	Yes
Bluetooth	Yes
Dolby Vision	Yes
HDR10	Yes
HDCP 2.3 Support	Yes
HDMI 2.1	No
4K/120Hz pass-through	No
HDR Support	Yes
eARC	Yes
Dolby Technologies	Dolby TrueHD, Dolby Digital Plus
DTS Technologies	DTS-HD Master Audio
Frequency Response	10Hz-100kHz
Total Harmonic Distortion	0.08%
Signal-to-Noise Ratio	98dB
Supported Audio Formats	MP3, WMA, AAC, FLAC, ALAC, WAV
Input Sensitivity/Impedance	200 mV / 47 kΩ
Dimensions (W x H x D)	434 x 151 x 319 mm
Weight	7.5 kg
