Denon AVR-S740H Service Manual

※ In order to check, connect the player to the HDMI terminal and congure the player and TV as AVR
source.
Check the sound output while turning on the player and TV.
HDMI OUT
HDMI IN1

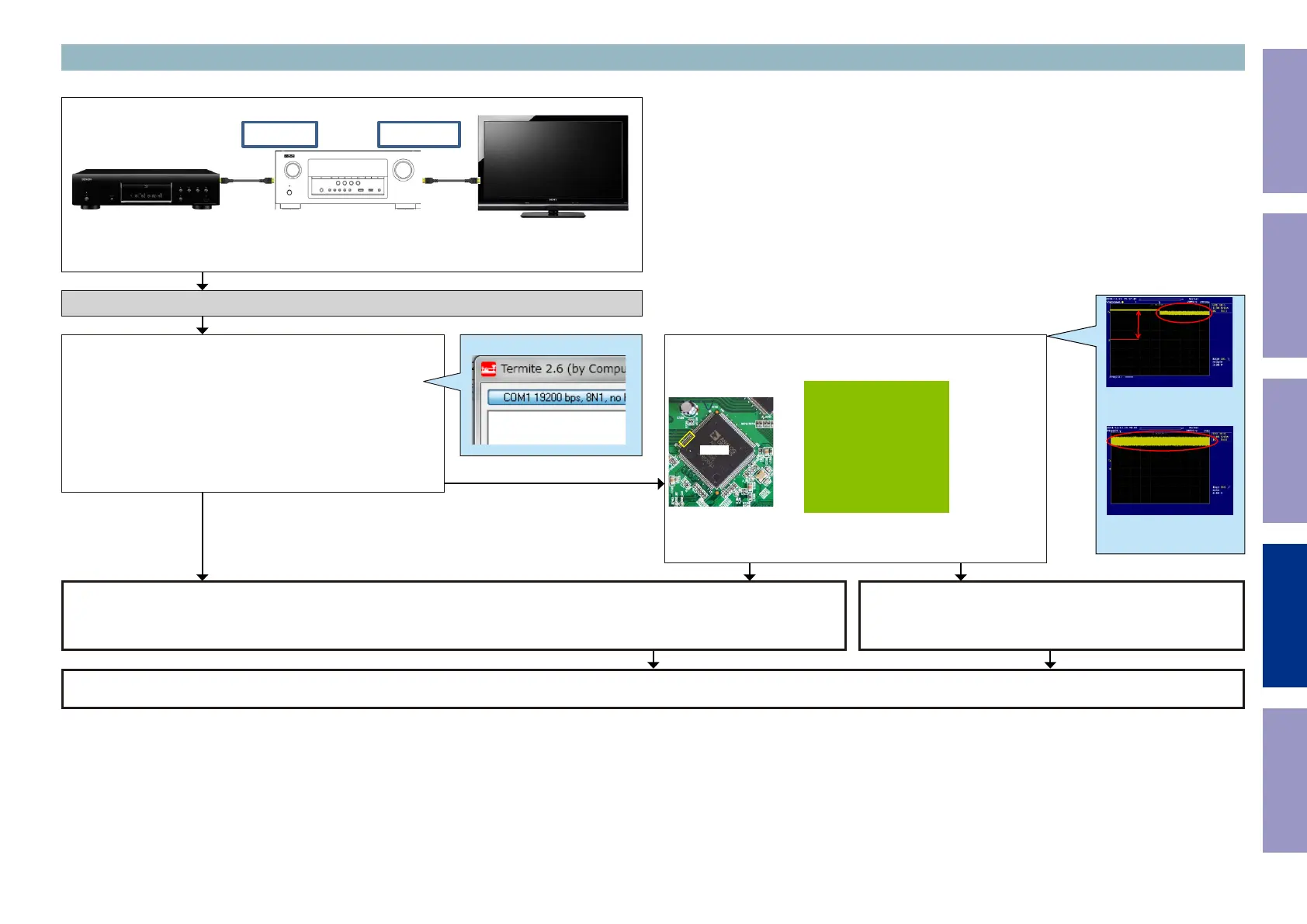

3-11. Fault detection procedure between HDMI Rx/Tx [MN864788] & OSD [ADV7623].
Check item(61). Check the TMDS CLK detection status of the regis-
ter.
Send the following command from Termite.exe.
Send the command "i 00B2 006A 0001".
When the following value is returned, go to Yes.
"11"
When the following value is returned, go to No.
"00"
Checking the TMDS status register (Rx/Tx -> OSD)
Example
i 00B2 006A 0001
Check item(62). Checking the TMDS input waveform. :
Check the TMDS waveform at the following test point.
Is the waveform like the sample?
23/24/26/27/29/30/32/33 pin
IC731
HDMI Rx/Tx [IC721] is faulty.
Replace with a new device.
Recheck from check item (4).
If it does not work, replace the PCB.
OSD [IC731] is faulty.
Replace with a new device.
YES NO
TMDS Signal
3.3V
Example of waveform in check ①
Voltage scale：1.0V/div
Time scale：20ms/div
TMDS
Example of waveform in check ②
Voltage scale：1.0V/div
Time scale：1s/div
YES
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
110

Denon AVR-S740H Specifications

General

Channels	7.2
Power Output per Channel	75 W (8 Ohms, 20 Hz - 20 kHz, 0.08% THD)
HDMI Inputs	6
HDMI Outputs	1
Dolby Atmos	Yes
DTS:X	Yes
Bluetooth	Yes
Wi-Fi	Yes
HEOS Multi-room	Yes
4K Ultra HD Pass-through	Yes
Power Output per Channel (6 Ohms)	110 W (6 Ohms, 1 kHz, 0.7% THD)
4K/Ultra HD Upscaling	Yes
Phono Input	Yes
Dolby Support	Dolby Atmos, Dolby TrueHD, Dolby Surround
Auto Calibration	Audyssey MultEQ
Input Sensitivity/Impedance	200 mV / 47 kOhms
Signal-to-Noise Ratio	98 dB (IHF-A weighted, Direct mode)
Ethernet	Yes
USB Port	Yes (front)
AM/FM Tuner	Yes
Supported Audio Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
HDR Support	HDR10, HLG, Dolby Vision
Wireless Audio	AirPlay 2
DTS Support	DTS:X, DTS-HD Master Audio
Zone Audio	Zone 2
Frequency Response	10 Hz - 100 kHz (+1, -3 dB, Direct Mode)
Total Harmonic Distortion	0.08% (20 Hz - 20 kHz)
Built-in DAC	192 kHz / 24-bit
