Denon AVR-S740H Service Manual

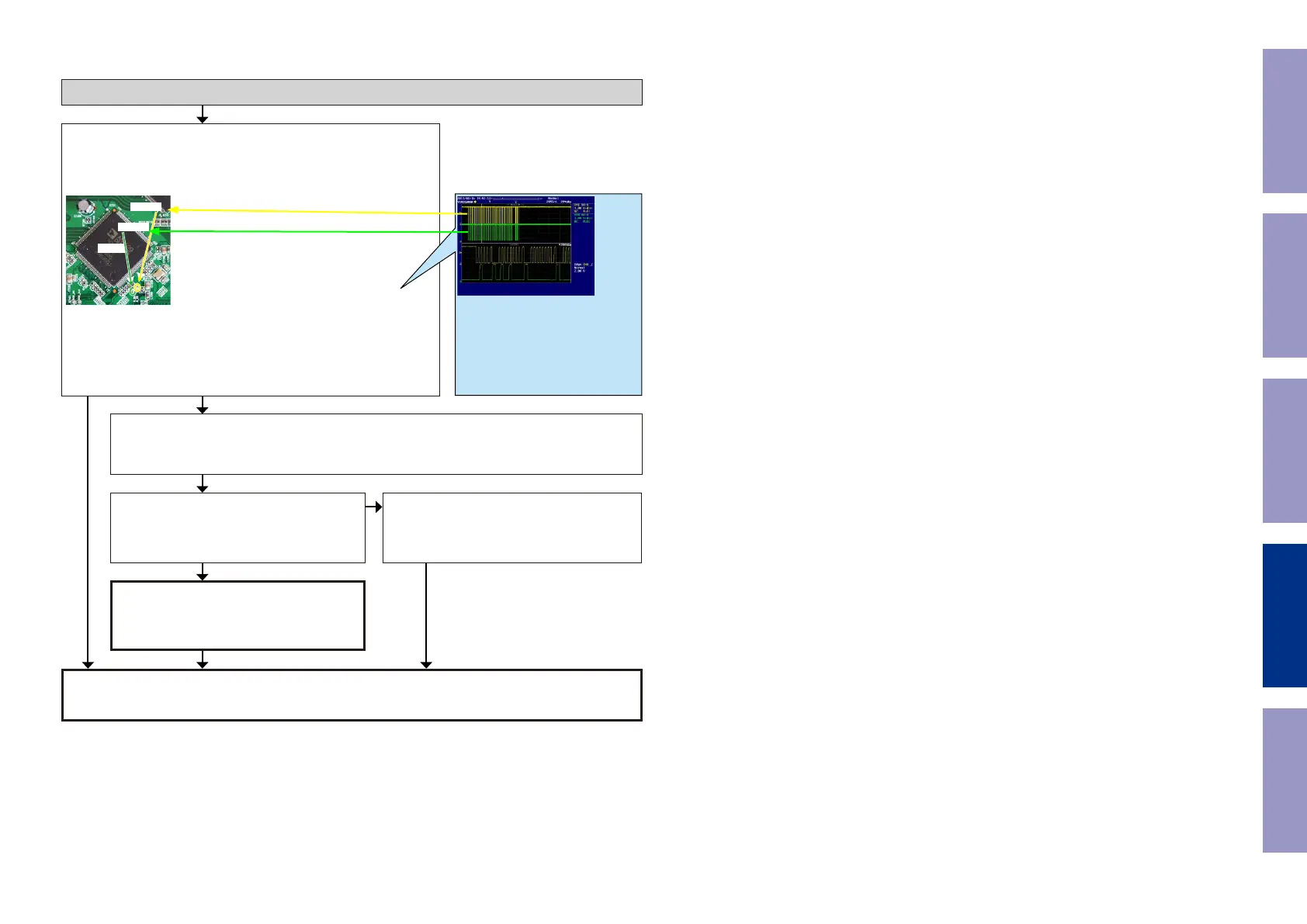

Check item(15). Check the I2C communication line :
Check the CPU.
Is the "I2C" waveform of the HDMI OSD [IC731] correct (like the one
shown in the diagram) when the power is turned on?
IC731
A_DA
A_CK
Check item(16). Check the I2C communication line :
Check HDMI OSD [IC731], CPU [IC751] patterns as well as soldering.
If there is no problem, go to the next step.
Check the HDMI Rx.
Remove the damping resistor [R7323/R7324]
of [IC731].
Is the "I2C" waveform correct?
CPU [IC751] is faulty.
Replace with a new device.
Check the I2C communication line.
Recheck from check item (1).
If it does not work, replace the PCB.
OSD [IC731] is faulty.
Replace with a new device.
YES
*The diagram shows an example.
(Signal patterns vary depending on the
timing.)
Points for checking waveforms
- Crest value (3.3V normally)
- Signal change
- SCL frequency (400kHz normally)
Voltage scale：1.0V/div
Time scale：10us/div
NO
YES
YES
NO
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
90

Denon AVR-S740H Specifications

General

Channels	7.2
Power Output per Channel	75 W (8 Ohms, 20 Hz - 20 kHz, 0.08% THD)
HDMI Inputs	6
HDMI Outputs	1
Dolby Atmos	Yes
DTS:X	Yes
Bluetooth	Yes
Wi-Fi	Yes
HEOS Multi-room	Yes
4K Ultra HD Pass-through	Yes
Power Output per Channel (6 Ohms)	110 W (6 Ohms, 1 kHz, 0.7% THD)
4K/Ultra HD Upscaling	Yes
Phono Input	Yes
Dolby Support	Dolby Atmos, Dolby TrueHD, Dolby Surround
Auto Calibration	Audyssey MultEQ
Input Sensitivity/Impedance	200 mV / 47 kOhms
Signal-to-Noise Ratio	98 dB (IHF-A weighted, Direct mode)
Ethernet	Yes
USB Port	Yes (front)
AM/FM Tuner	Yes
Supported Audio Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
HDR Support	HDR10, HLG, Dolby Vision
Wireless Audio	AirPlay 2
DTS Support	DTS:X, DTS-HD Master Audio
Zone Audio	Zone 2
Frequency Response	10 Hz - 100 kHz (+1, -3 dB, Direct Mode)
Total Harmonic Distortion	0.08% (20 Hz - 20 kHz)
Built-in DAC	192 kHz / 24-bit
