Denon AVR-S750H Service Manual

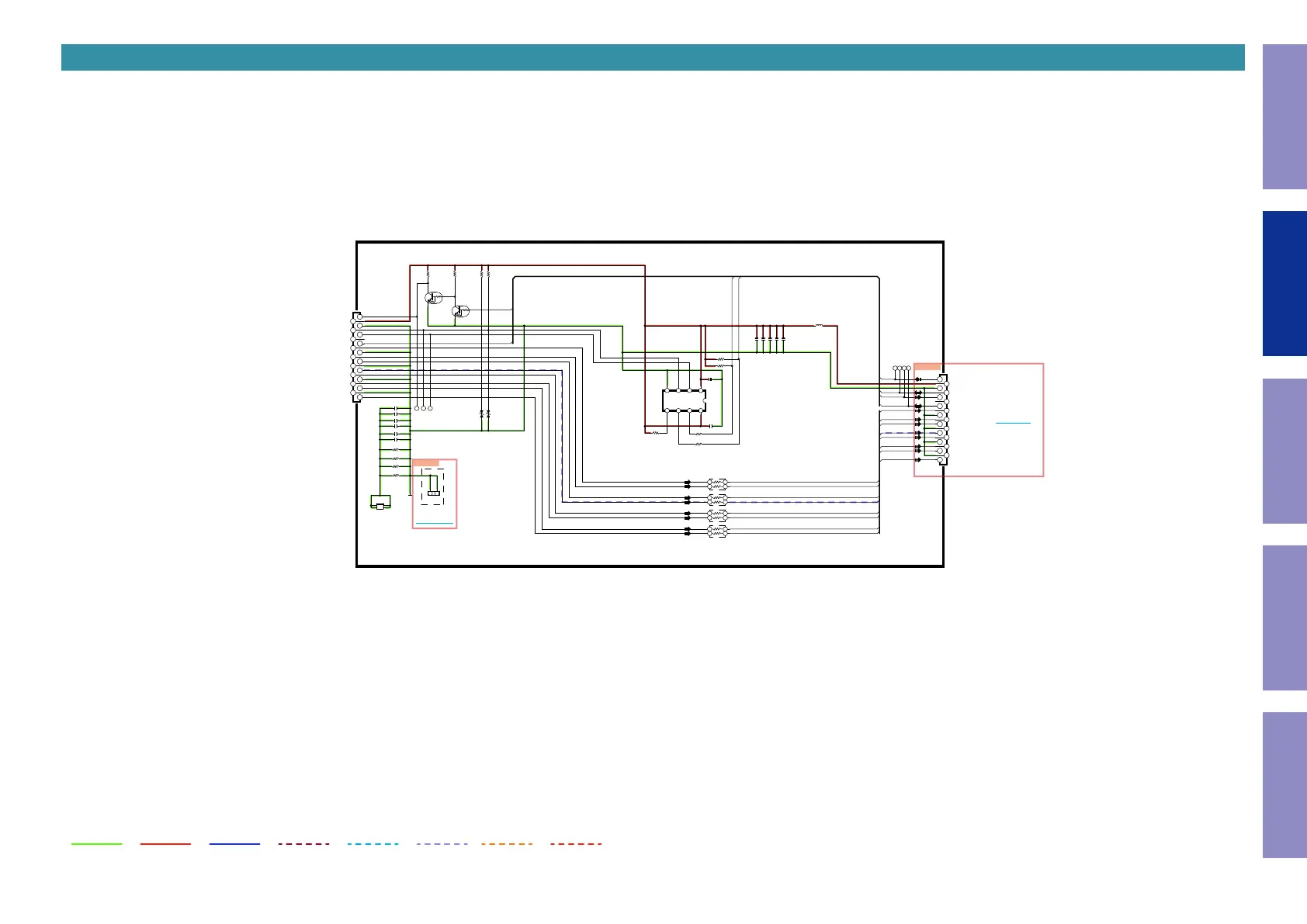

SCH14 FRONT HDMI
ANALOG VIDEO STBY POWER ANALOG AUDIO DIGITAL AUDIO TMDS SIGNAL GND LINE POWER- LINE POWER+ LINE
1.D2+
2.D2 SHIELD
3.D2-
4.D1+
5.D1 SHIELD
6.D1-
8.D0 SHIELD
7.D0+
9.D0-
10.CK+
11.CK SHIELD
12.CK-
13.CEC
14.NC
15.DDC CLK
16.DDC DATA
17.GND
18.+5V
19.HP DET
FRONT HDMI
RX_2+
RX_2-
RX_1+
RX_1-
RX_0+
RX_0-
RX_C+
RX_C-
TO HDMI RX
HP_DET
+5V
CEC5V
DDC_SDA
DDC_SCK
DGND
CEC
RXD_C-
RXD_C+
DGND
RXD_0-
RXD_0+
DGND
RXD_1-
RXD_1+
DGND
RXD_2-
RXD_2+
DGND
VCCA
SCLA
SDAA
GND
VCCB SCLB
SDAB
EN
FRONT HDMI ( TCA9517DGKR )
HDMI JACK BRACKET BK301 VMC1A422
CHASSIS GND
E2 ONLY
C3103 1000pF
C3110
0.047uF
L3101
60R/3A
R3102
10K
R3101
1k
R3106
10K
R3104
10K
R3103
10K
C3101
0.047uF
C3102
0.01uF
R3108
10K
T316 T317 T315
T303 T302 T301 T304
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
JK311
CJJ9H021Z
Q3101
KRC102S
Q3102
KRC104S
D3102
OPEN
D3101
OPEN
4 3 2 1
L3102
0x2
4 3
2 1
L3103
0x2
4 3 2 1
L3104
0x2
4 3 2 1
L3105
0x2
1234
5 6 7 8
IC311
TCA9517DGKR
R3109
10K
R3105
22
R3107
22
C3104
10uF/6.3V
C3105
OPEN
C3106
OPEN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
JK312
CJJ9H027Z
BK301
BRACKET
C3111
10uF
C3112
10uF
C3113
10uF
C3114
10uF
C3115
OPEN
C3116
OPEN
R3110
OPEN
R3111
OPEN
R3112
OPEN
R3113
OPEN
21
BN301
OPEN
CONTROL
CEC
HPDF
DDC_SCL
TMDS
RX_C-
RX_C+
RX_0-
RX_0+
RX_1-
RX_1+
RX_2-
RX
_2+
CONTROL
DDC_SCL
DDC_SDA
HPDF
CEC
RX_C-
RX_C+
RX_0-
RX_0+
RX_1-
RX_1+
RX_2-
RX_2+
DDC_SDA
DGND
_BN301
TO CN701
JK312
TO JK702
