Denon AVR-S750H - Front Panel Assy; Top Cover

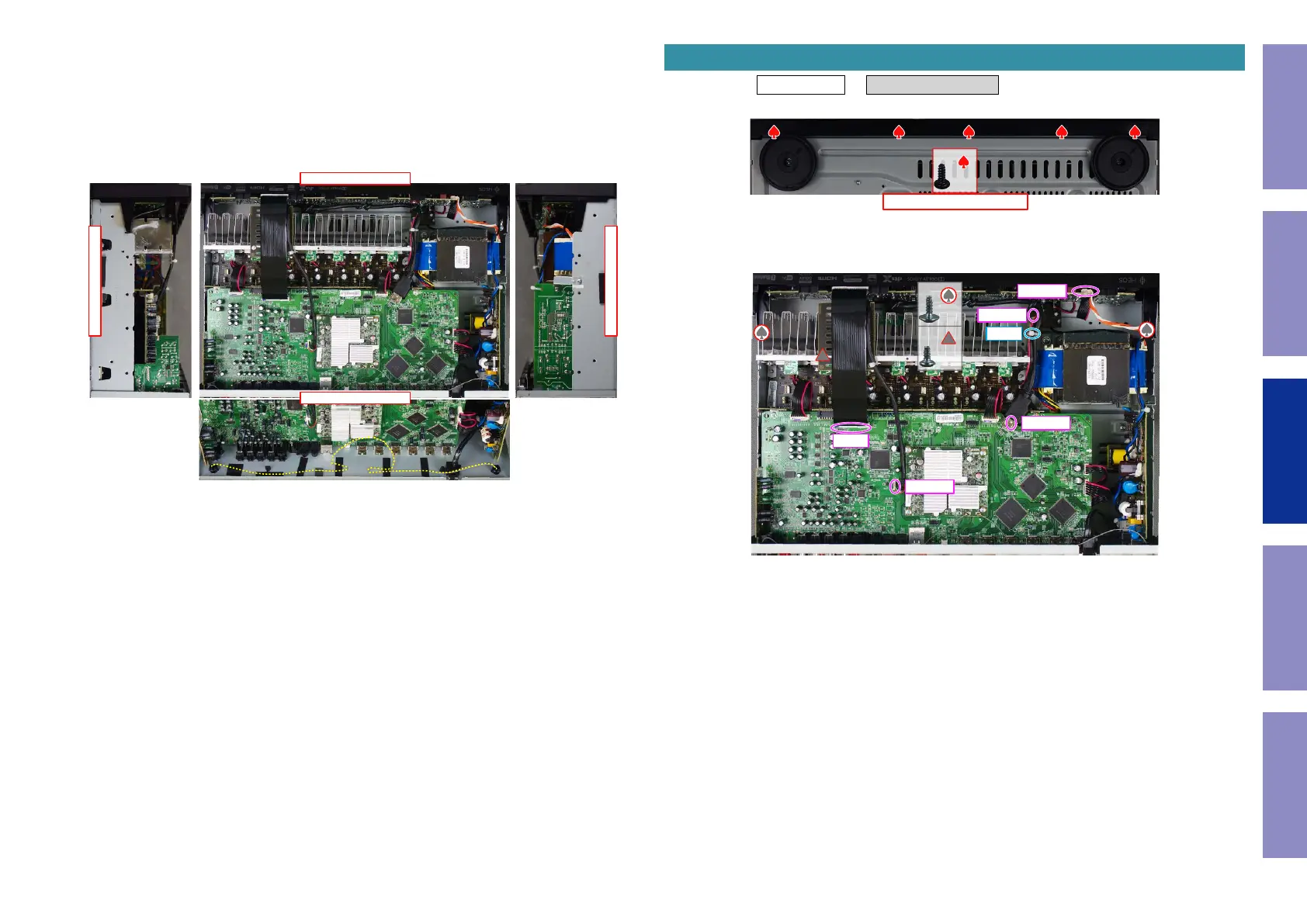

Explanatory Photos for DISASSEMBLY
• Fortheshootingdirectionofeachphotosusedinthismanual,seethephotobelow.
• A, B, C and Dinthephotobelowindicatetheshootingdirectionsofphotos.
• Thephotographswithnoshootingdirectionindicatedweretakenfromthetopoftheunit.
•PhotosofAVR-S750HE3areusedinthismanual.
The viewpoint of each photograph
(Shootingdirection:X)[Viewfromthetop]
↓Shooting direction: C↓ ↑Shooting direction: D↑
↑Shooting direction: A↑
↓Shooting direction: B↓
Proceeding : TOP COVER → FRONT PANEL ASSY
(1) Removethescrews.
(2) Removethescrews.Cutthewireclamp,thenremovetheconnector.
RemovetheFFC.
1. FRONT PANEL ASSY
View from the bottom
x5
x2
x1
CN102
CN104
FFC
CN813
JK702
CUT
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
67
