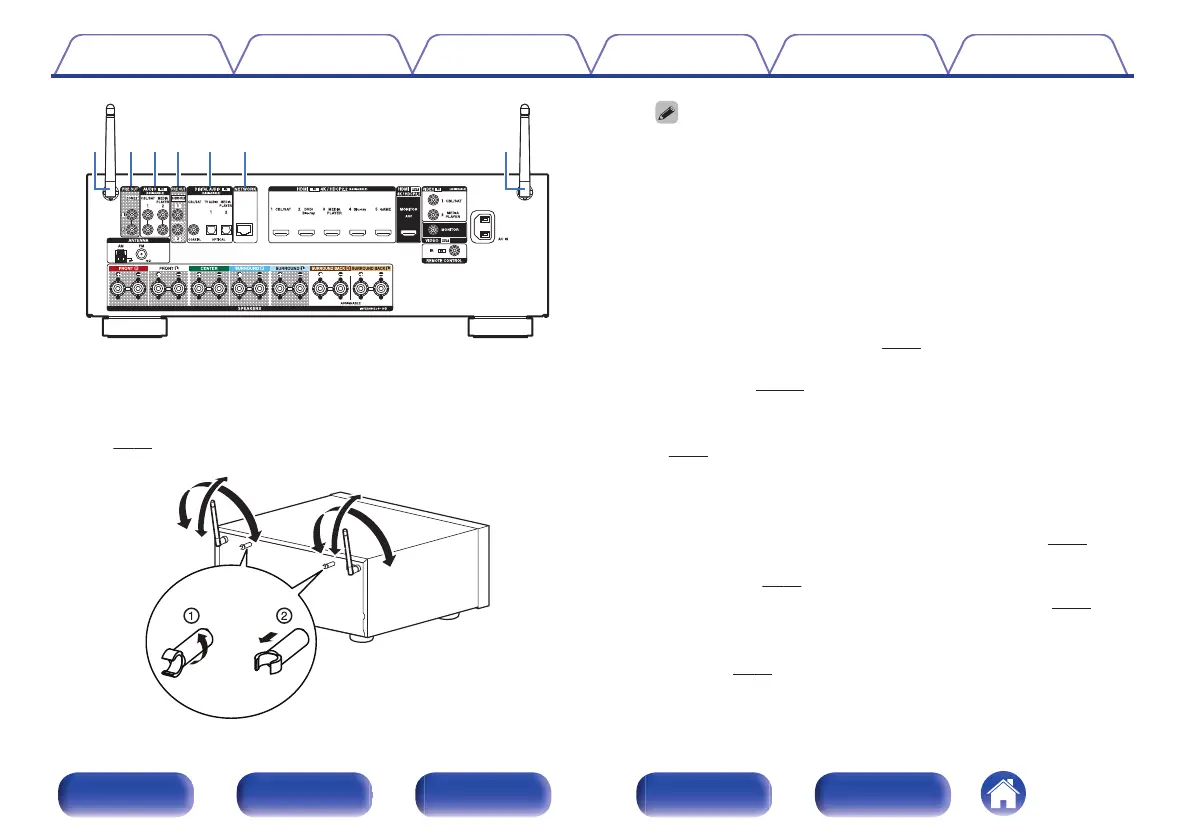

Rod antennas for Bluetooth/wireless LAN
Stand this antenna upright when connecting to a network via wireless
LAN, or when connecting to a handheld device via Bluetooth.
(v p. 60)
.
0
The antenna clip can be removed from the rear panel.
A
Rotate the antenna clip 90 degrees to the left.
B
Pull the antenna clip out towards yourself.
0
The antenna clip is needed when transporting this unit. Keep it in a
safe place.
0
Attach the antenna clip by following the steps for removing it in
reverse.
B
PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or power amplifier
for ZONE2.
0
“Connecting the subwoofer” (v
p. 33)
0
“Connection 2 : Connection using an external amplifier
(ZONE2)” (v p. 142)
C
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
(v
p. 52)
D
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)” (v
p. 49)
0
“Connection 3 : TV equipped without an HDMI
connector” (v p. 50)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v
p. 52)
E
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (v p. 59)
