Denon AVR-X1500H Service Manual

JIG FOR SERVICING
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.

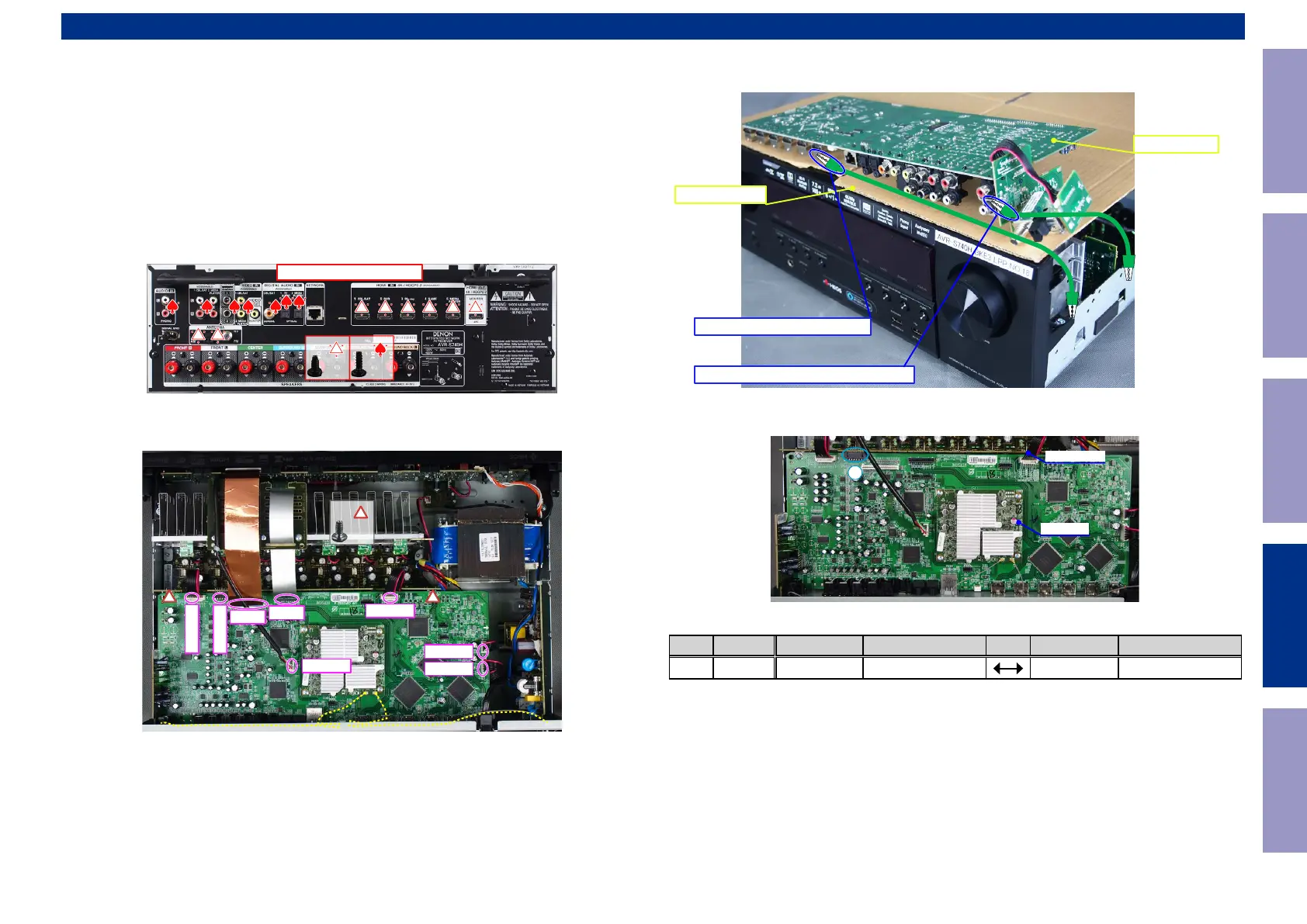

Connection of Jig for DIGITAL PCB
---Items to Be Prepared---
8U-110084S : EXTENSION UNIT KIT : 1Set
Insulation sheet (Not supplied) : 1 sheet
Ground lead (Not supplied) : 2 pc
-Proceeding-
(1) Remove the screws.
(2) Remove the connector PCB.
↓Shooting direction: A↓
x7x8
x2
FFC
FFC
CN813
CN741
CN823
CN754 CN822
CN753
(3) Remove the DIGITAL PCB from the chassis and turn it over.
Place an insulation sheet larger than the PCB underneath the DIGITAL PCB.
b
Connect the earth of the PCB to the chassis using an earth wire, etc.
(4) Connect the expansion cables.
Board-to-Board Connections
No. Pin Ref. No. PCB Ref. No. PCB
q
15pin CN201 DIFF-AMP
CN822 DIGITAL
PCB DIGITAL
Insulation sheet
CHASSIS-HDMI CONNECTOR
CHASSIS-COMPOSITE CONNECTOR
DIFF-AMP
DIGITAL
1
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
144

Denon AVR-X1500H Specifications

General

Display	-
Sample rate	196 kHz
Aspect ratio	21:9
HDCP version	2.2
Product color	Black
Audio decoders	DSD, DTS-HD, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Volume control	Rotary
HDMI in	6
Composite video in	2
Ethernet LAN (RJ-45) ports	1
Receiver type	Surround
Frequency range	20 - 20000 Hz
Output impedance	8 Ω
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	175 W
Power output per channel (20-20KHz@8 Ohm)	80 W
AM band range	520 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Deezer, Napster, Pandora, SIRIUS Internet Radio, Spotify, Tidal, TuneIn, iHeartRadio
Supported graphics resolutions	3840 x 2160
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
Connectivity technology	Wired & Wireless
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	430 W

Weight and Dimensions

Depth	330.2 mm
Width	434.3 mm
Height	236.2 mm
Weight	8618 g
