EXPLODED VIEW

AVR-X1500H Parts List :

http://dmedia.dmglobal.com/Document/DocumentDetails/24432

AVR-S740H Parts List :

http://dmedia.dmglobal.com/Document/DocumentDetails/24433

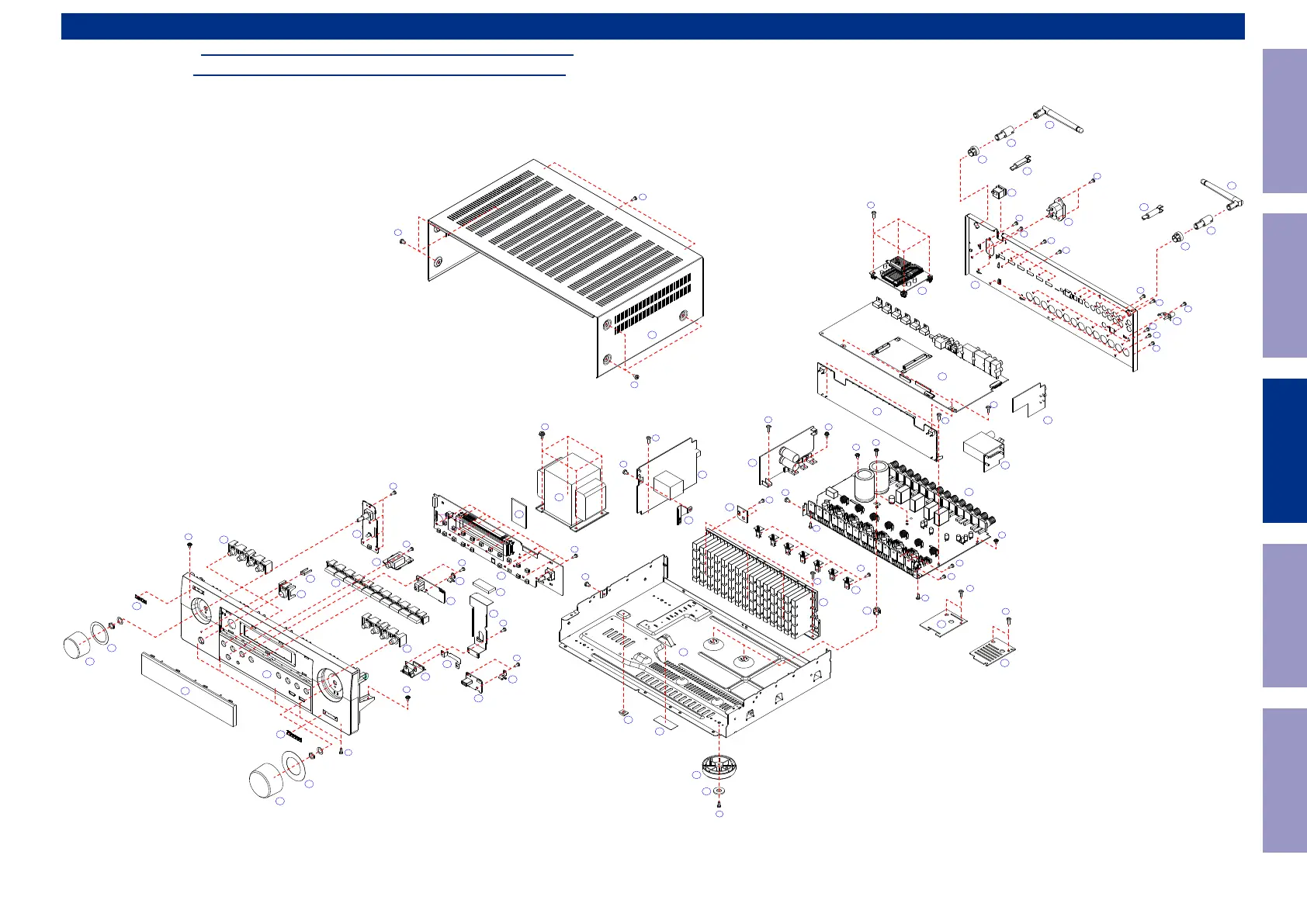

AVRS740H/X1500H EXPLODED VIEW

P10

P11

P12

P13

P18

S10

S11

S15

S12

x14

S14

P19

F14

x13

S13

F10

F11

F10

F12

P14

P15

P16

P17

M15

M11

M12

M13

M14

M11

M12

M13

M14

M10

P20

M16

F15

F16

F17

F13

WARNING:

Parts marked with this symbol

have critical characteristics.

Use ONLY replacement parts recommended by the manufacturer.

Before Servicing

This Unit

Electrical Mechanical Repair Information Updating
