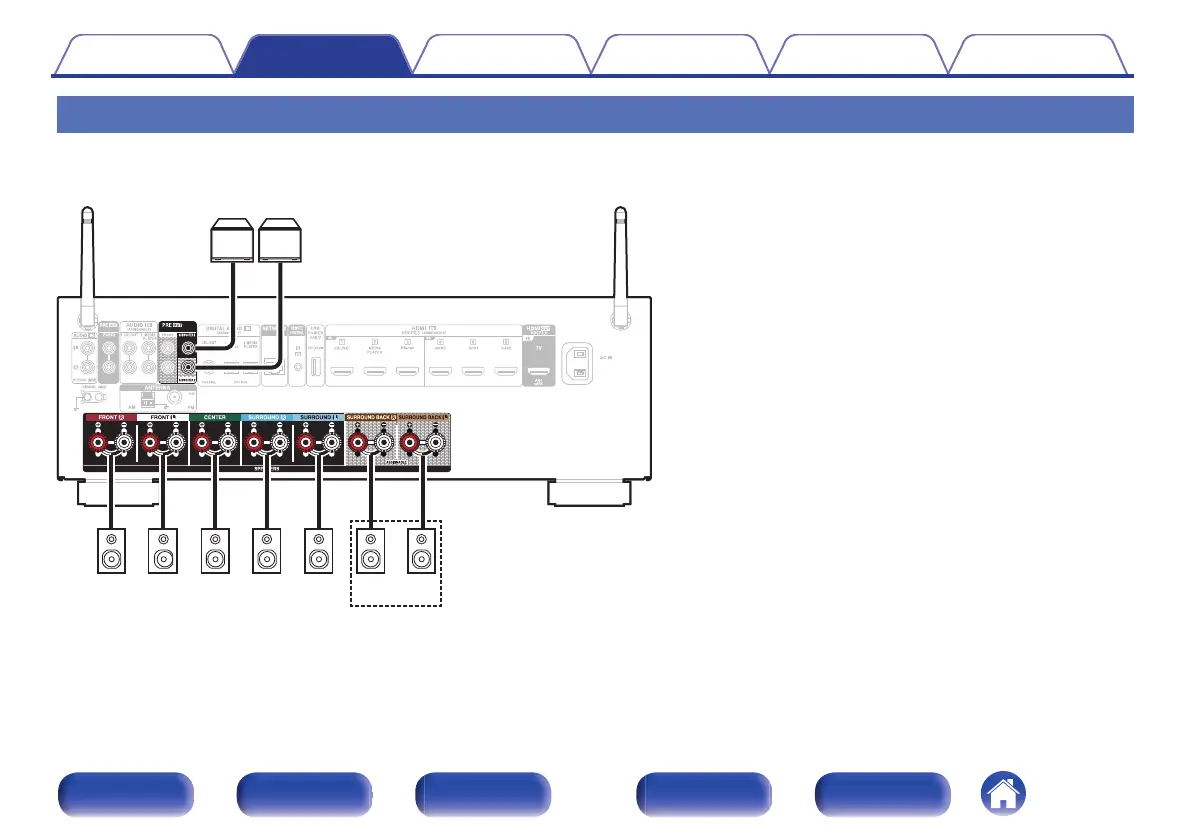

Connecting speakers to the speaker terminals
You can connect 7.2 channel speakers to this unit.
Connect each speaker according to the speakers you are using.
z1
When using a single surround back speaker, connect it to the
SURROUND BACK L terminal.
z2
The Surround Back speaker terminal can be assigned to the Height/
Ceiling/Dolby Enabled speaker in some speaker systems.
Refer to the section on “Speaker Layout” in the menu for instructions on
configuring the settings. (v p. 189)
SW2SW1
SR SLFR FL C
SBLSBR
