Denon AVR-X2500H Service Manual

HDMI Tx [U1039] is faulty.
Replace with a new device.
HDMI Tx [U1039] is faulty.
Replace with a new device.
Recheck from check item (3).
If it does not work, replace the PCB.
Recheck from check item (3).
If it does not work, replace the PCB.
Check for a short circuit in the TMDS line.
If there is no problem, the HDMI Tx [U1039] is faulty.
Replace with a new device.
Check for a short circuit in the HPD line.
If there is no problem, the HDMI Tx [U1039] is faulty.
Replace with a new device.
When the results of check item (58) are "10"
(Detection of HPD is OK / Detection of RXSENSE is not OK )
When the results of check item (58) are "20"
(Detection of HPD is not OK / Detection of RXSENSE is OK )

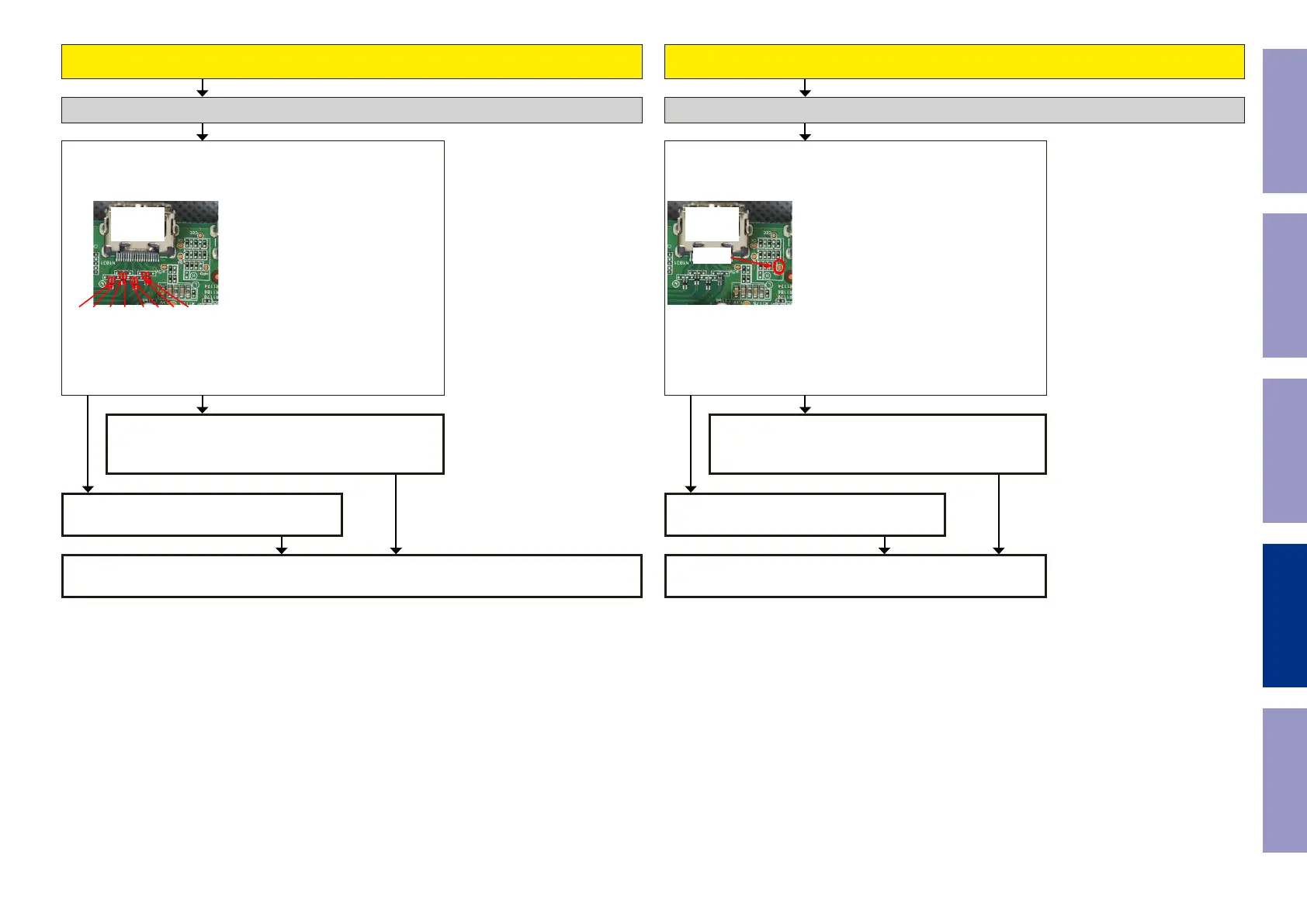

Check item(62). Checking the RXSENSE :
Does the test point of RXSENSE close to the HDMI output terminal
[N1031] indicate the (3.3V)?
N1031
D2+ D2- D1+ D1- D0+ D0- CK+ CK-
HDMI
OUT 1
HDMI
OUT 1
Check item(63). Checking the HPD :
Does the voltage of HPD test point close to the HDMI output termi-
nal [N1031] indicate Hi (3-5 V)?
N1031
HPD
HDMI
OUT 1
HDMI
OUT 1
Check the RXSENSE. (Monitor1) Check the HPD. (Monitor1)
NO NOYES YES
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
118

Denon AVR-X2500H Specifications

General

HDMI in	8
Composite video in	2
Ethernet LAN (RJ-45) ports	1
AirPlay	No
Display	-
Sample rate	196 kHz
HDCP version	2.2
Product color	Black
Audio decoders	DSD, DTS-HD, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Volume control	Rotary
RS-232 interface	Yes
Connectivity technology	Wired & Wireless
Receiver type	Surround
Frequency range	20 - 20000 Hz
Output impedance	8 Ω
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	185 W
Power output per channel (20-20KHz@8 Ohm)	95 W
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	500 W
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Deezer, Napster, Pandora, SIRIUS Internet Radio, Spotify, Tidal, TuneIn, iHeartRadio
Supported graphics resolutions	3840 x 2160

Weight and Dimensions

Depth	340.3 mm
Width	434.3 mm
Height	167.6 mm
Weight	9389 g
