Denon AVR-X2500H Service Manual

YES
YES
YES

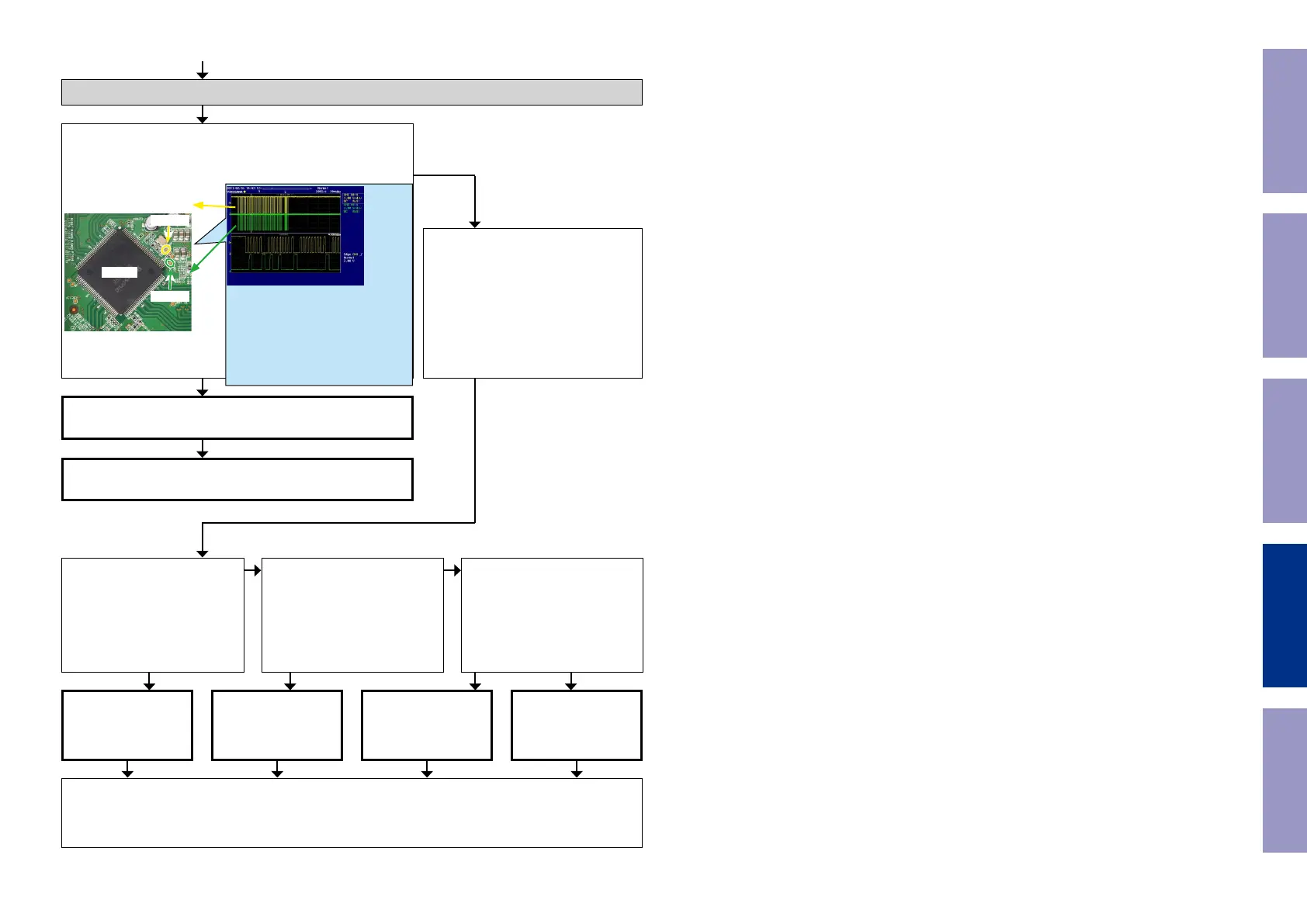

Check the I2C communication line. (HDMI Tx)
Check item(9). Check the I2C communication line :
Check the CPU.
Is the "I2C" waveform of the TP near the HDMI Tx [U1039]
correct (like the one shown in the diagram) when the power is
turned on?
U1039
HSDA
HSCL
HDMI Rx1 [U1000] is
faulty.
Replace with a new
device.
HDMI Rx2 [U1003] is
faulty.
Replace with a new
device.
HDMI Tx [U1039] is
faulty.
Replace with a new
device.
The CPU [U1018] is
faulty.
Replace with a new
device.
HDMI Tx [U1039] is faulty.
Replace with a new device.
Recheck from check item (1).
If it does not work, replace the PCB.
Check item(10). Check the I2C com-
munication line :
Check HDMI Rx [U1000 or U1003],
HDMI Tx [U1039] and CPU [U1018]
patterns as well as soldering.
If there is no problem, go to the next
step.
Check the HDMI Rx2.
Remove the damping resistor
[R1169/R1170] of [U1003].
Is the "I2C" waveform correct?
Recheck from check item (1).
If it does not work, replace the PCB.
Check the HDMI Tx.
Remove the damping resistor
[R1882/R1883] of [U1039].
Is the "I2C" waveform correct?
Check the HDMI Rx1.
Remove the damping resistor
[R1061/R1062] of [U1000].
Is the "I2C" waveform correct?
NO
NO NO
YES YES YES NO
*The diagram shows an example.
(Signal patterns vary depending on
the timing.)
Points for checking waveforms
- Crest value (3.3V normally)
- Signal change
- SCL frequency (400 kHz normally)
Voltage scale：1.0V/div
Time scale：10us/div
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
96

Denon AVR-X2500H Specifications

General

HDMI in	8
Composite video in	2
Ethernet LAN (RJ-45) ports	1
AirPlay	No
Display	-
Sample rate	196 kHz
HDCP version	2.2
Product color	Black
Audio decoders	DSD, DTS-HD, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Volume control	Rotary
RS-232 interface	Yes
Connectivity technology	Wired & Wireless
Receiver type	Surround
Frequency range	20 - 20000 Hz
Output impedance	8 Ω
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	185 W
Power output per channel (20-20KHz@8 Ohm)	95 W
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	500 W
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Deezer, Napster, Pandora, SIRIUS Internet Radio, Spotify, Tidal, TuneIn, iHeartRadio
Supported graphics resolutions	3840 x 2160

Weight and Dimensions

Depth	340.3 mm
Width	434.3 mm
Height	167.6 mm
Weight	9389 g
