Denon AVR-X2500H Service Manual

YES
YES
YES

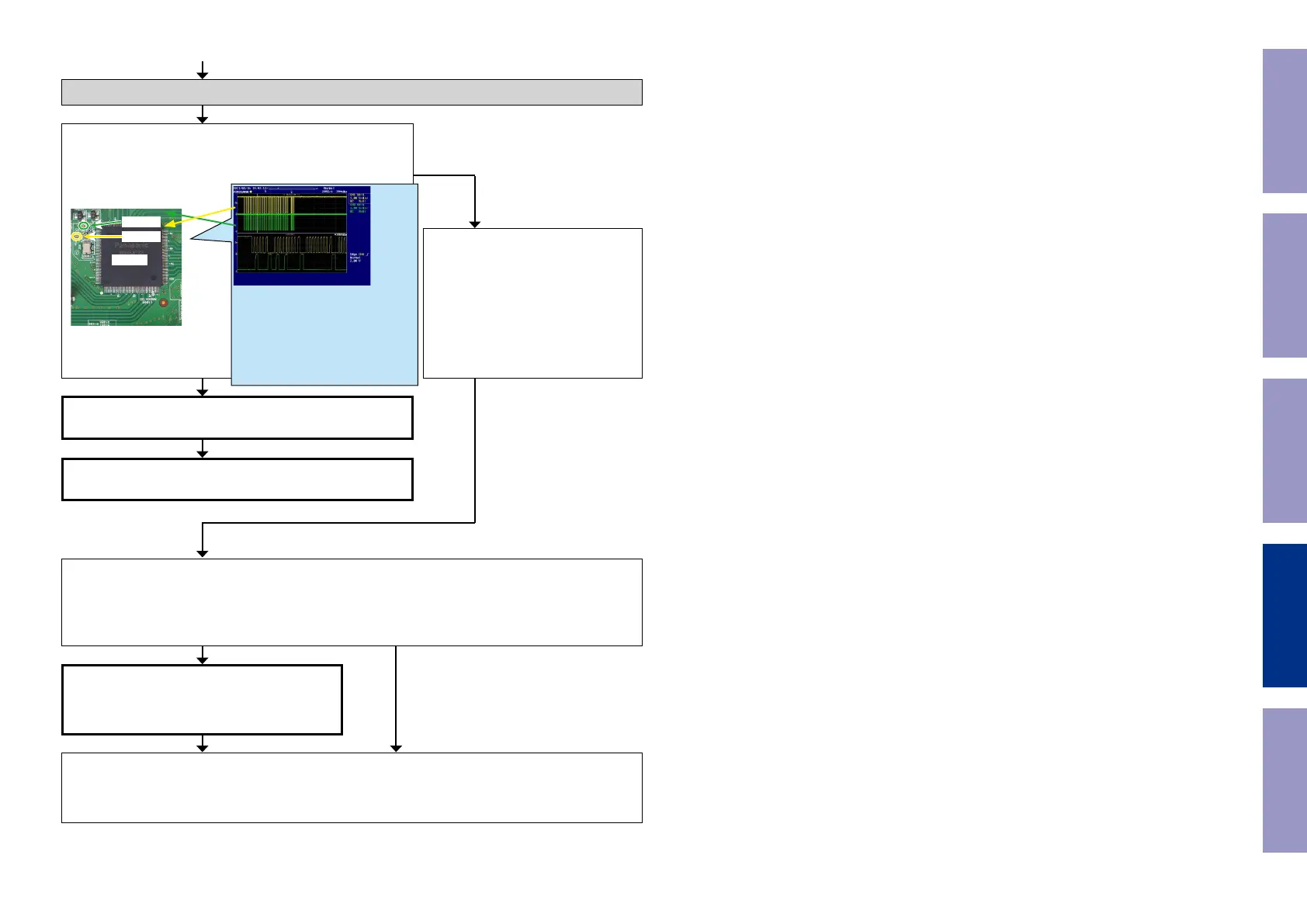

Check the I2C communication line. (HDMI Rx)
Check item(14). Check the I2C communication line :
Check the CPU.
Is the "I2C" waveform of the TP near the HDMI Rx [U1000]
correct (like the one shown in the diagram) when the power is
turned on?
U1000
HSDA
HSCL
HDMI Rx [U1000] is faulty.
Replace with a new device.
Recheck from check item (1).
If it does not work, replace the PCB.
Check item(15). Check the I2C com-
munication line :
Check HDMI Rx [U1000 or U1003],
HDMI Tx [U1039] and CPU [U1018]
patterns as well as soldering.
If there is no problem, go to the next
step.
NO
*The diagram shows an example.
(Signal patterns vary depending on the
timing.)
Points for checking waveforms
- Crest value (3.3V normally)
- Signal change
- SCL frequency (400 kHz normally)
Voltage scale：1.0V/div
Time scale：10us/div
HDMI Rx1 [U1000] is faulty.
Replace with a new device.
Check the HDMI Rx1.
Remove the damping resistor [R1061/R1062] of [U1000].
Is the "I2C" waveform correct?
Recheck from check item (1).
If it does not work, replace the PCB.
YES NO
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
98
