Speaker installation
Determine the speaker system depending on the number of speakers you
are using and install each speaker and subwoofer in the room.

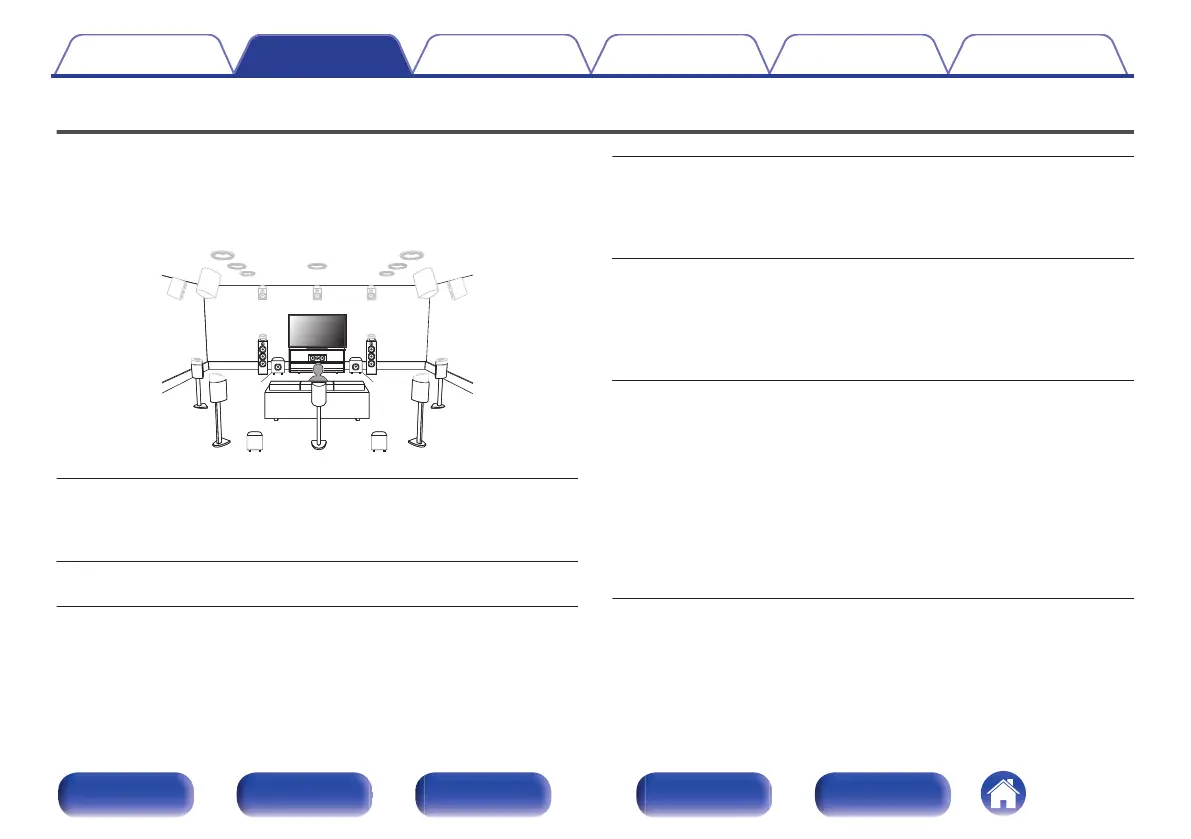

Speaker installation is explained using this example of a typical
installation.
C
FL FR
SBL
SBR
SB
SW1
SL SR
SW3 SW4
SW2
FL/FR
(Front speaker left/
right):
Place the FRONT left and right speakers an
equal distance from the main listening position.
The distance between each speaker and your TV
should also be the same.
C
(Center speaker):
Place the CENTER speaker in between the front
speakers and above or below your TV.
SL/SR
(Surround speaker left/
right):
Place the SURROUND left and right speakers an
equal distance to the left and right sides of the
main listening position. If you don’t have
surround back speakers, move the surround
speakers slightly behind your listening position.
SBL/SBR
(Surround back
speaker left/right):
Place the SURROUND BACK left and right
speakers an equal distance from the main
listening position and directly behind the main
listening position. When using a single surround
back speaker (SB), place it directly behind the
listening position.
SW 1/2/3/4
(Subwoofer):
Place your subwoofer near your front speakers. If
you are using multiple subwoofers, place pairs of
subwoofers spaced equally across the front or
rear walls of the room or place single subs
midway between the front pairs or rear pairs.
You can also set a specific layout when using
multiple subwoofers on the “Subwoofer Mode”
setting (v p. 215):
2 subwoofers: 2 front, or 1 front and 1 rear
3 subwoofers: 2 front and 1rear
4 subwoofers: 2 front and 2 rear
