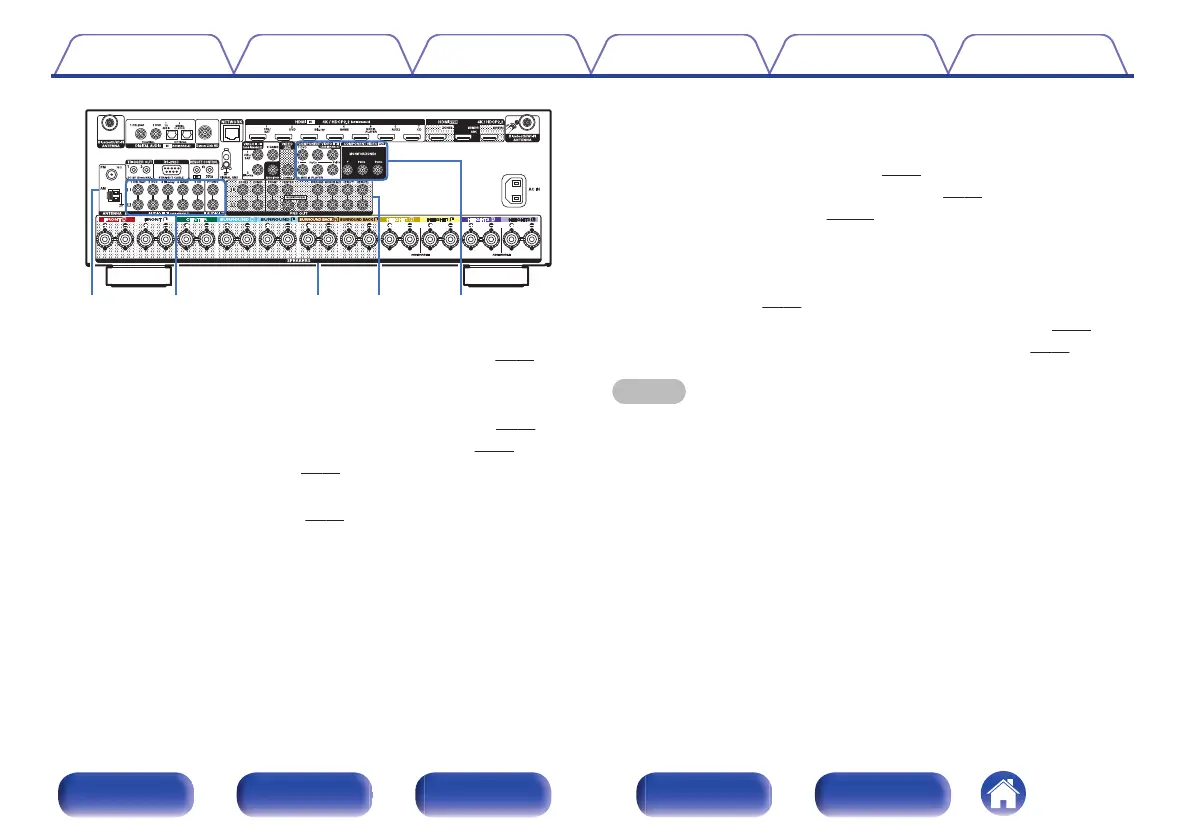

L
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 83)
M
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v
p. 77)
0
“Connecting a DVD player or Blu-ray Disc player” (v
p. 78)
0
“Connecting a turntable” (v
p. 81)
N
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 40)
O
PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or an external power
amplifier.
0
“Connecting the subwoofer” (v
p. 41)
0
“Connecting 11.1-channel speakers” (v p. 59)
0
“Connecting ZONE” (v
p. 163)
P
Component video connectors (COMPONENT VIDEO)
Used to connect devices equipped with component video connectors.
0
“Connection 3 : TV equipped without an HDMI
connector” (v
p. 75)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 77)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 78)
NOTE
0
Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
Contents Connections Playback Settings Tips Appendix
27
Front panel Display Rear panel Remote Index
