This unit is compatible with Dolby Atmos and DTS:X which offers an even wider
and deeper surround sensation.
0
Dolby Atmos is not supported in a 5.1-channel or less speaker configuration.
0
DTS:X can be selected regardless of the speaker configuration.
0
Auro-3D recommends adding FRONT HEIGHT and SURROUND HEIGHT
speakers to a 5.1 speaker configuration. Optionally, you may substitute REAR
HEIGHT, Dolby Atmos Enabled speakers instead of FRONT HEIGHT and
SURROUND HEIGHT speakers for Dolby Atmos, DTS:X and Auro-3D playback.
0
Use the illustration below as a guide for how high each speaker should be
installed. The height does not need to be exactly the same.
.
z
1
z2
z3
z4
z5
Point slightly
downwards
Front height
speaker
z1 30° - 45°
z4 125° - 150°
z2 30° - 55°
z3 65° - 100°
z5 135° - 150°
GViewed from the sideH
Top front speaker Top rear speaker
Front speaker Surround
speaker
Surround
back
speaker
Point slightly
downwards
Rear height
speaker
Top middle / Top surround speaker Surround height speaker
0
For the best Auro-3D experience Surround Height speakers are recommended,
however you may substitute Rear Height speakers from a Dolby Atmos speaker
setup in place of Surround Height speakers.
.
TS
SL
TRL
RHL RHR
FHL
TML
TFL
FL
SR
TRR
FHR
TMR
TFR
FR
C

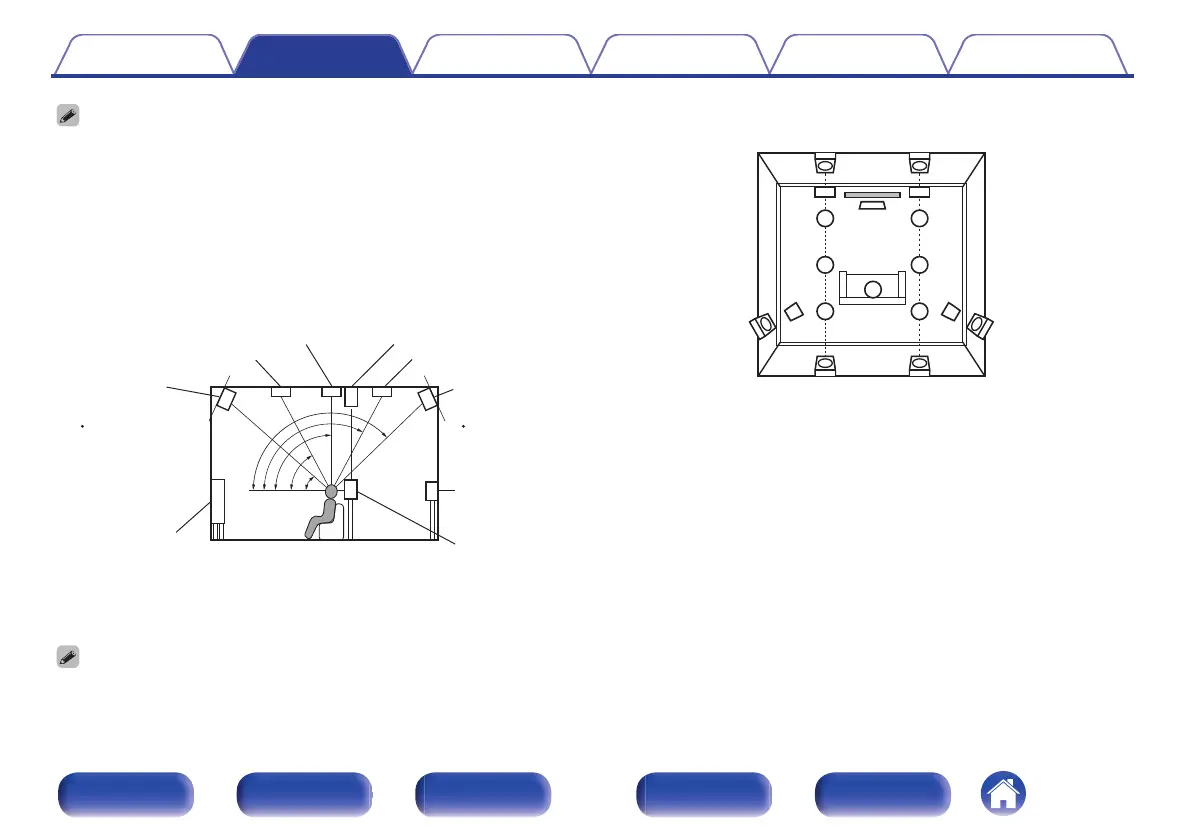

Height speakers layout
GViewed from the topH
SHRSHL
Contents
Connections Playback Settings Tips Appendix
36
Front panel Display Rear panel Remote Index

Denon AVR-X4800H Specifications

General

Channels	9.4
Dolby Atmos	Yes
DTS:X	Yes
HDMI Inputs	7
HDMI Outputs	3
4K/120Hz Pass-through	Yes
8K Support	Yes
Wi-Fi	Yes (2.4GHz/5GHz)
Bluetooth	Yes
HEOS Built-in	Yes
Amplifier Channels	9
Power Output per Channel @ 8 Ohms / 1 kHz / 0.08% THD / 2 Channels Driven	125W
Speaker Impedance	4-16 Ohms
Auro 3D	Yes
IMAX Enhanced	Yes
HDCP Support	2.3
HDR Compatibility	HDR10, HDR10+, Dolby Vision, HLG
eARC Support	Yes
Phono Input	Yes
Ethernet	Yes
Voice Assistant Support	Amazon Alexa, Google Assistant, Apple Siri
Audyssey MultEQ XT32	Yes
Total Harmonic Distortion	0.05%
Input Sensitivity/Impedance	200 mV / 47 kOhms
Network Connectivity	Ethernet, Wi-Fi
Supported Audio Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
Dimensions (W x H x D)	434 x 167 x 389 mm
Weight	13.5 kg
Power Output per Channel	125W
Voice Control	Yes
Frequency Response	10 Hz - 100 kHz
DAC	32-bit AKM
Video Pass-Through	8K
Zone Audio Output	Zone 2, Zone 3
Wireless Audio Streaming	Yes
Signal-to-Noise Ratio	102 dB
Video Inputs/Outputs	7/3 (HDMI)
Audio Inputs/Outputs	7 HDMI inputs, 3 HDMI outputs, 1 phono input, 2 optical inputs, 1 coaxial input
