Denon AVR-X6700H Quick Start Guide

3
Important: External Antennas
The removable external antennas are required for both
Bluetooth and Wireless network connectivity. Please make
sure to connect the antennas before attempting to use the
Bluetooth or Wi-Fi features of the AVR-X6700H.

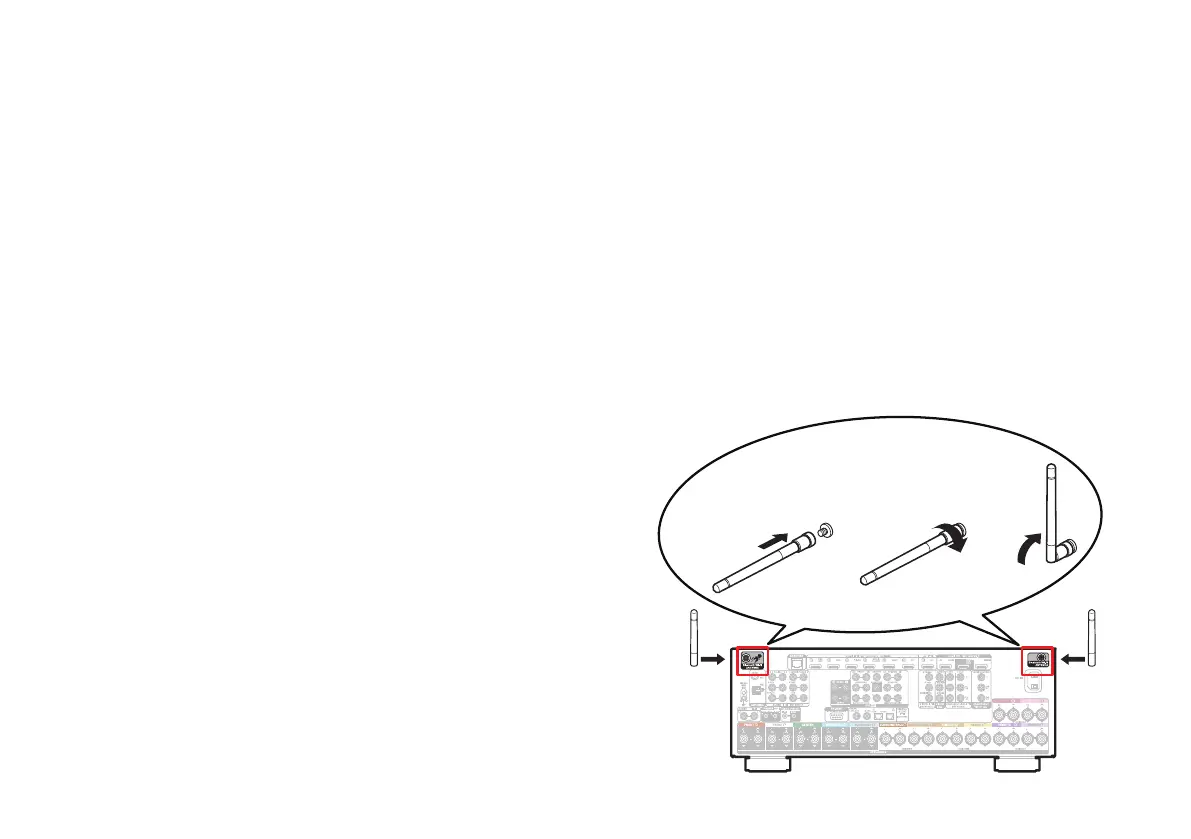

n Connecting the external antennas for
Bluetooth / Wireless connectivity
For each of the two antennas:
q Place the antenna evenly over the antenna terminal
located at the upper left or right corner of the rear panel.
w Turn the antenna clockwise until it is fully connected. Do
not over tighten.
e Rotate the antenna upwards for the best possible
reception.
q w e
HEIGHT3 HEIGHT3
PrintingColor:Black

Denon AVR-X6700H Specifications

General

Channels	11.2
Power Output	140W per channel (8 ohms, 20Hz-20kHz, 0.05% THD)
Speaker Impedance	4-16 ohms
Input Sensitivity/Impedance	200mV / 47k ohms
HDMI Inputs	8
HDMI Outputs	3
HDCP Support	HDCP 2.3
HDR Compatibility	HDR10, HDR10+, Dolby Vision, HLG
Audio Return Channel (ARC)	eARC
Video Upscaling	8K
Bluetooth	Yes
Wi-Fi	Yes
Ethernet	Yes
Voice Assistant Support	Amazon Alexa, Google Assistant, Apple Siri
Phono Input	Yes
Zone Audio Output	3 Zones
Room Calibration	Audyssey MultEQ XT32
Frequency Response	10Hz-100kHz (+1, -3 dB, Direct Mode)
Total Harmonic Distortion	0.05%
Signal-to-Noise Ratio	102dB
HDMI Support	4K/120Hz, 8K/60Hz
USB Port	1
Streaming Services	AirPlay 2, HEOS, Spotify, Tidal, Deezer, Amazon Music, Pandora, SiriusXM
Audio Decoding	Dolby Atmos, DTS:X, Auro-3D
