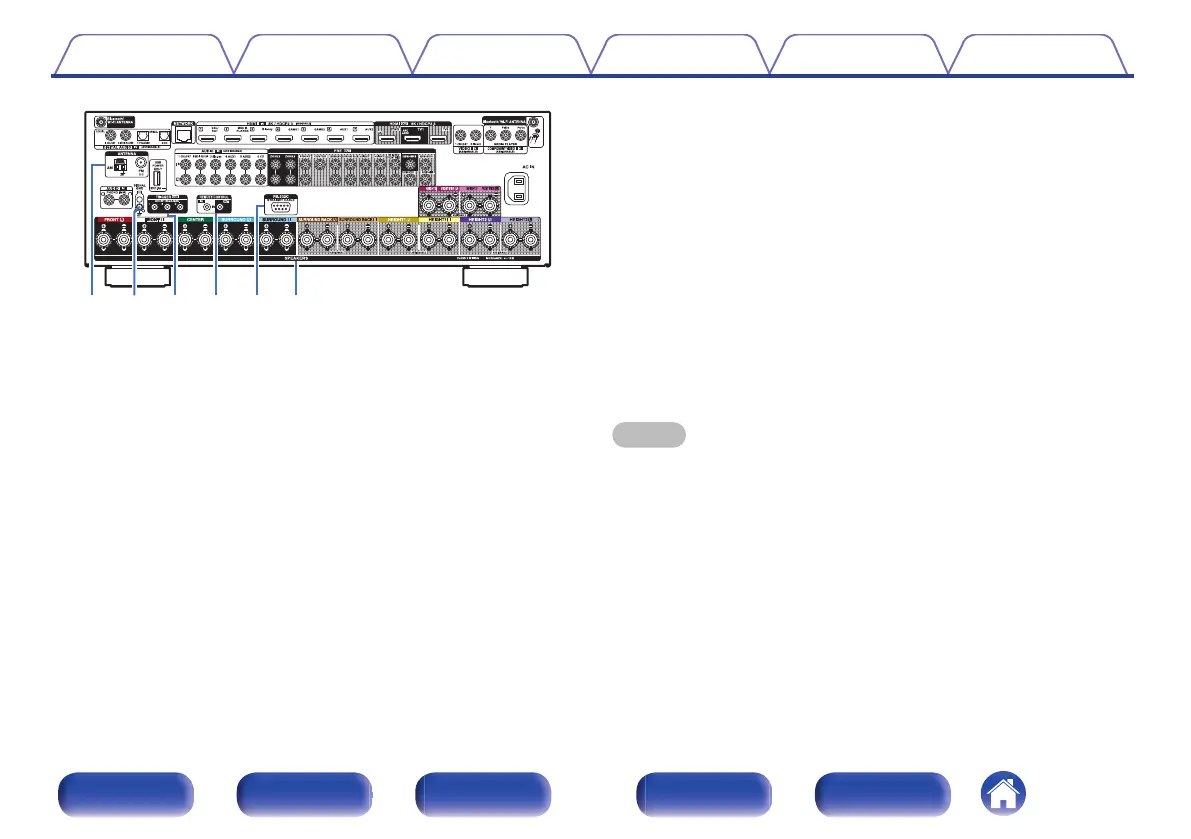

K
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 82)
L
SIGNAL GND terminal
Used to connect a ground wire for the turntable. (v p. 80)
M
TRIGGER OUT jacks
Used to connect devices equipped with the trigger function.
(v p. 87)
N
REMOTE CONTROL jacks
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a different room. (v p. 86)
O
RS-232C connector
Used to connect home automation controller devices fitted with
RS-232C connectors. Consult the owner’s manual of the home
automation controller for more information about serial control of this
unit.
Perform the operation below beforehand.
A
Turn on the power of this unit.
B
Turn off the power of this unit from the external controller.
C
Check that the unit is in the standby mode.
P
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 40)
NOTE
0
Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
