Denon DCD-1420 - Disassembly Procedures; Chassis Component Removal; CD Mechanism Disassembly

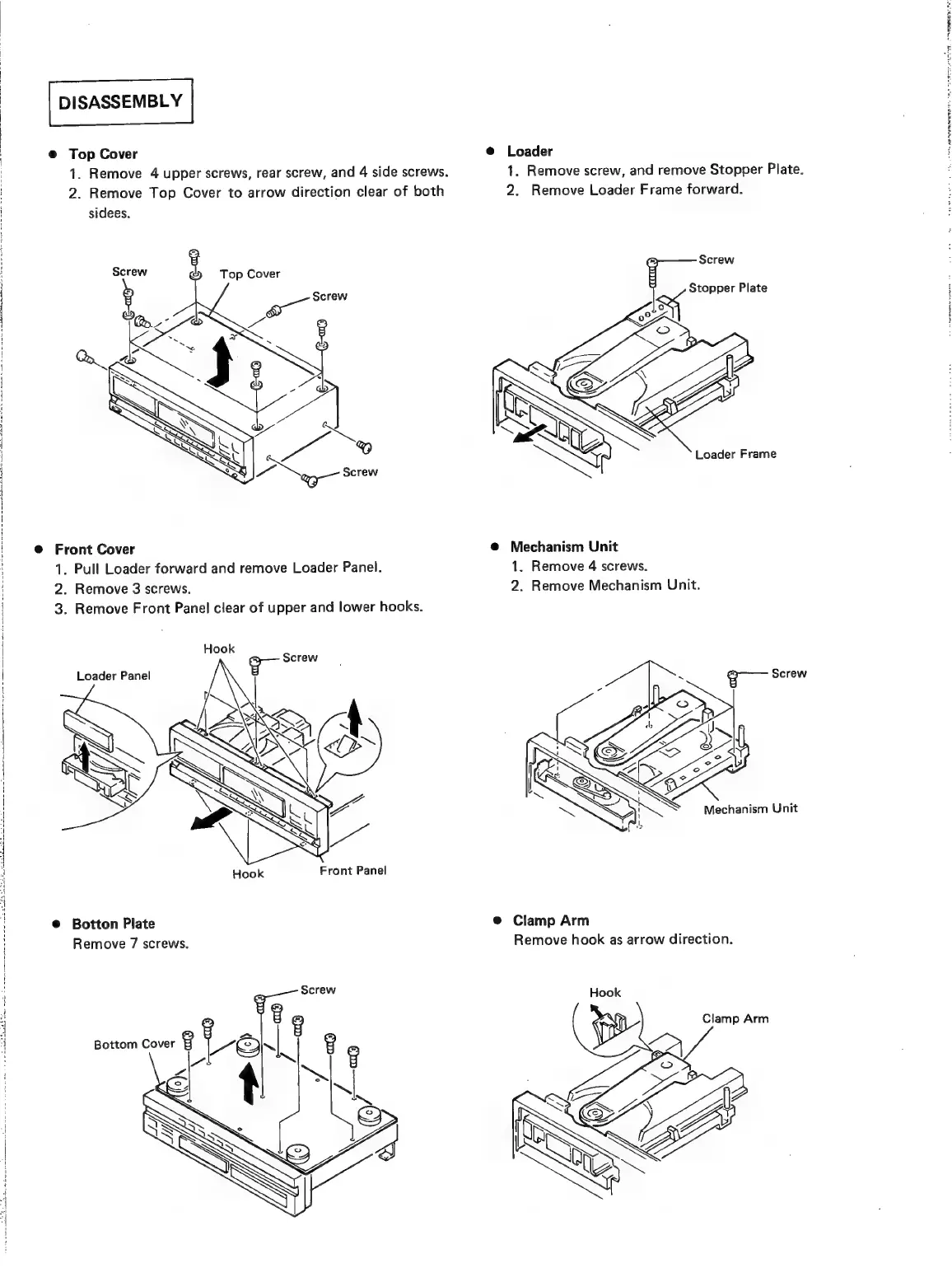

DISASSEMBLY
Top Cover
1. Remove 4 upper screws, rear screw, and 4 side screws.
2. Remove Top Cover to arrow direction clear of both
sidees.
@ Front Cover
1. Pull Loader forward and remove Loader Panel.
2. Remove 3 screws.
3. Remove Front Panel clear of upper and lower hooks.
Hook
Loader Panel
Hook
@ Botton Plate
Remove 7 screws.
oe
mt
LO
i
8g
t
Front Panel
Screw
Screw
Ug
|
@ Loader
1. Remove screw, and remove Stopper Plate.
2. Remove Loader Frame forward.
Screw
, Stopper Plate
<i
Loader
Frame
@ Mechanism Unit
1. Remove 4 screws.
2. Remove Mechanism Unit.
@ Clamp Arm
Remove hook as arrow direction.
Clamp Arm
i
i
