Denon DCD-1420 - Focus Gain Adjustment; VR102 Focus Gain Adjustment

6. Focus gain

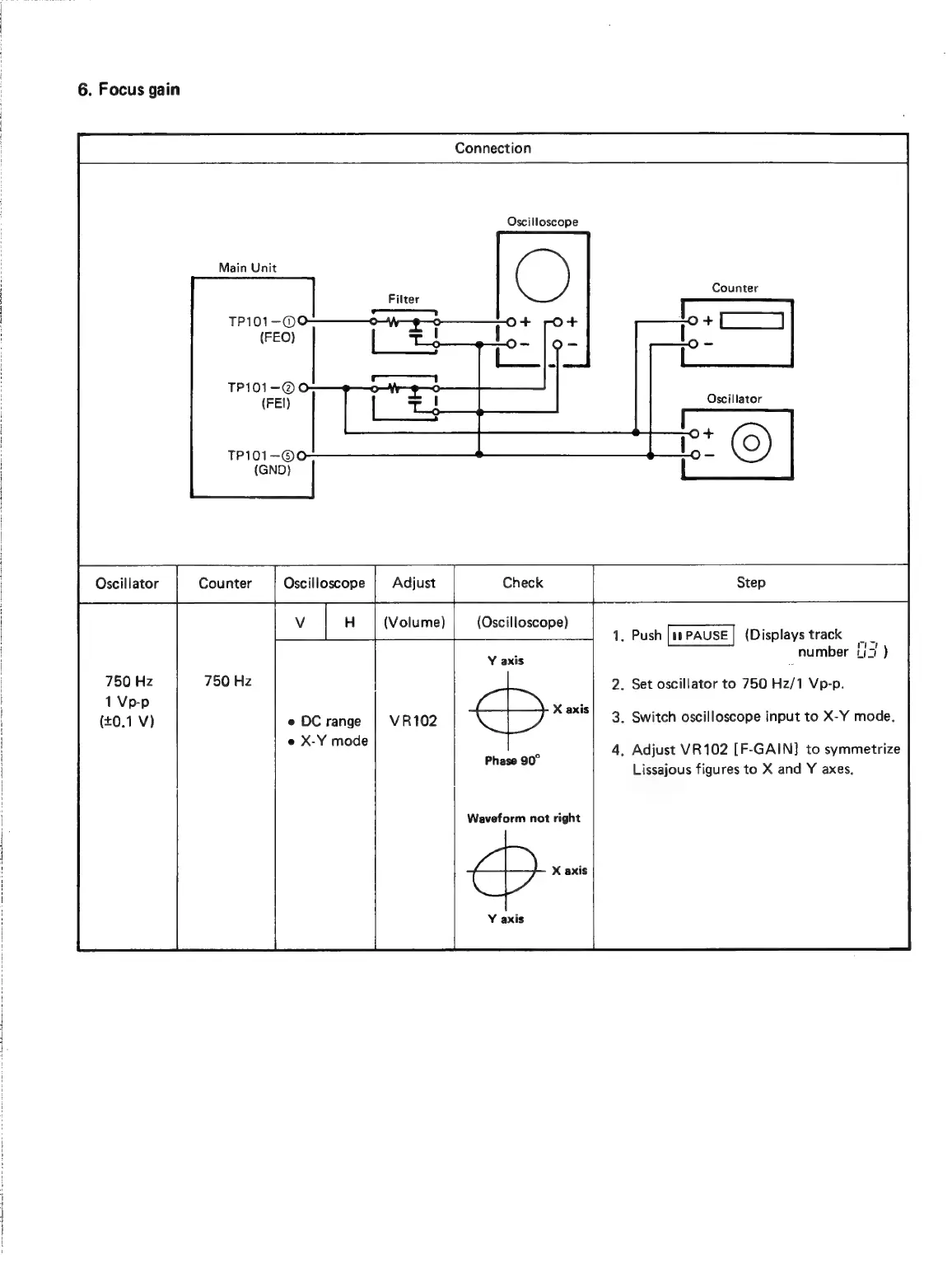

Connection
Main Unit
TP101—@
(FEO)
TP101-—@0O
(FEI)
TP101—©O
(GND)
Filter
—————
Oscilloscope
Counter
(Volume) (Oscilloscope)
e DC range
e X-Y mode
Waveform not right
. Push (Displays track _
number
. Set oscillator to 750 Hz/1 Vp-p.
. Switch oscilloscope input to X-Y mode.
. Adjust VR102 [F-GAIN]} to symmetrize
Lissajous figures to X and Y axes.
